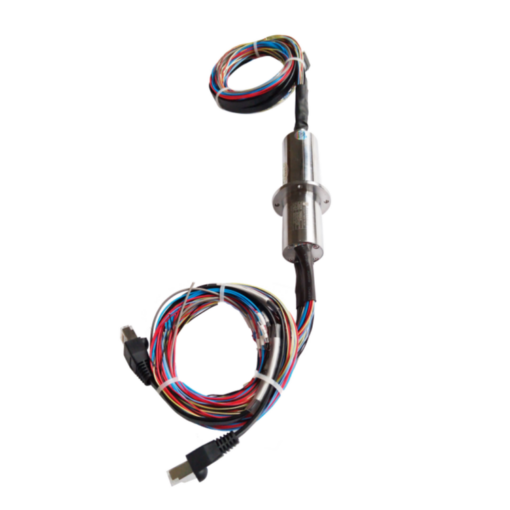

DHS028-49 Ingiant 100M Ethernet slip ring out diameter 28mm with 2 channels 100M Ethernet signal and 1-30 power channels

Ethernet slip ring – DHS028 series

Accept customization, transmit 100/1000M Ethernet signal

DHS028-49 100M Ethernet slip ring, outer diameter 28mm, can integrate transmission of 5A current/2A signal/100M Ethernet signal. Plug-and-play type with RJ45 connector, also called network cable slip ring. Ethernet slip rings are made of reliable precious metal materials and aluminum shell. The mature and stable process makes the produced slip rings have the remarkable characteristics of stable transmission, no packet loss, anti-crosstalk, large return loss and small insertion loss.

Product features

Stable transmission of 2-way 100M Ethernet signals
The brush contact part is plated with rare precious metals, which has a long service life
Plug-and-play RJ45 interface
Dedicated Ethernet cable
Small size, easy installation
Stable transmission, no packet loss, no string code, large return loss, low insertion loss

Typical applications

Small network system
Video surveillance system
Stage control system
Industrial automation control
Various network cables and RJ45 interface transmission

Category: Hybrid Slip Rings Ethernet+Electric Tag: ethernet slip ring

Description

DHS028-49
The main parameters
Number of circuits	49	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

Standard product outline drawing:

Our advantage:

Product advantage: High-quality encapsulated miniature slip rings for combined power and signal transmission for use in space-critical applications. Mechanical and electrical specifications can be adapted according to individual requirements.
Company advantage: Experienced technical team, perfect manufacturing, quality control and management system, adhering to the value of quality and service first, to provide products and technical services to meet user needs. And constantly increase the investment in the research and development of new slip ring technology, expand the new application field of the slip ring industry. To provide users with more comprehensive product and technical support.
Customized advantage: Can provide all kinds of industries of non-standard customized slip ring design, can customize different needs of the slip ring, integrated current, signal, gas and liquid as one integrated slip ring. To provide global customers with wind power generation, servo control.
