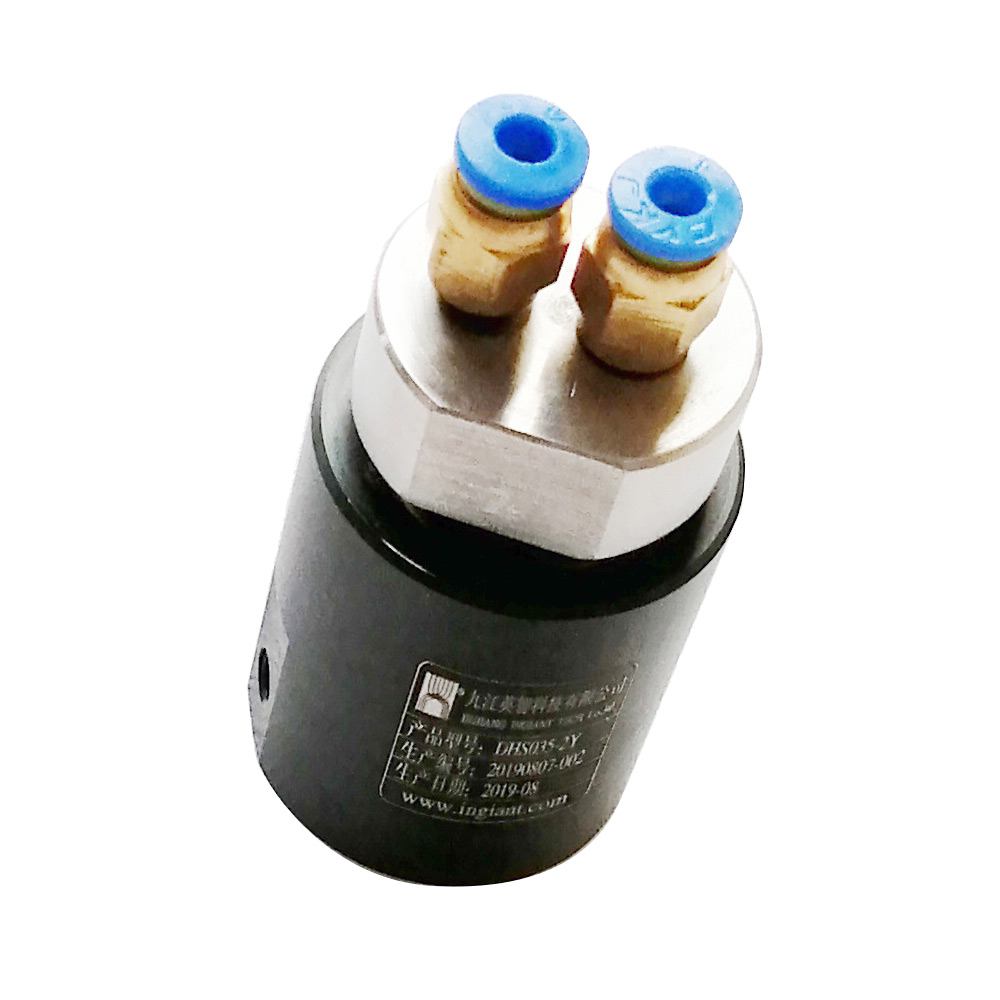

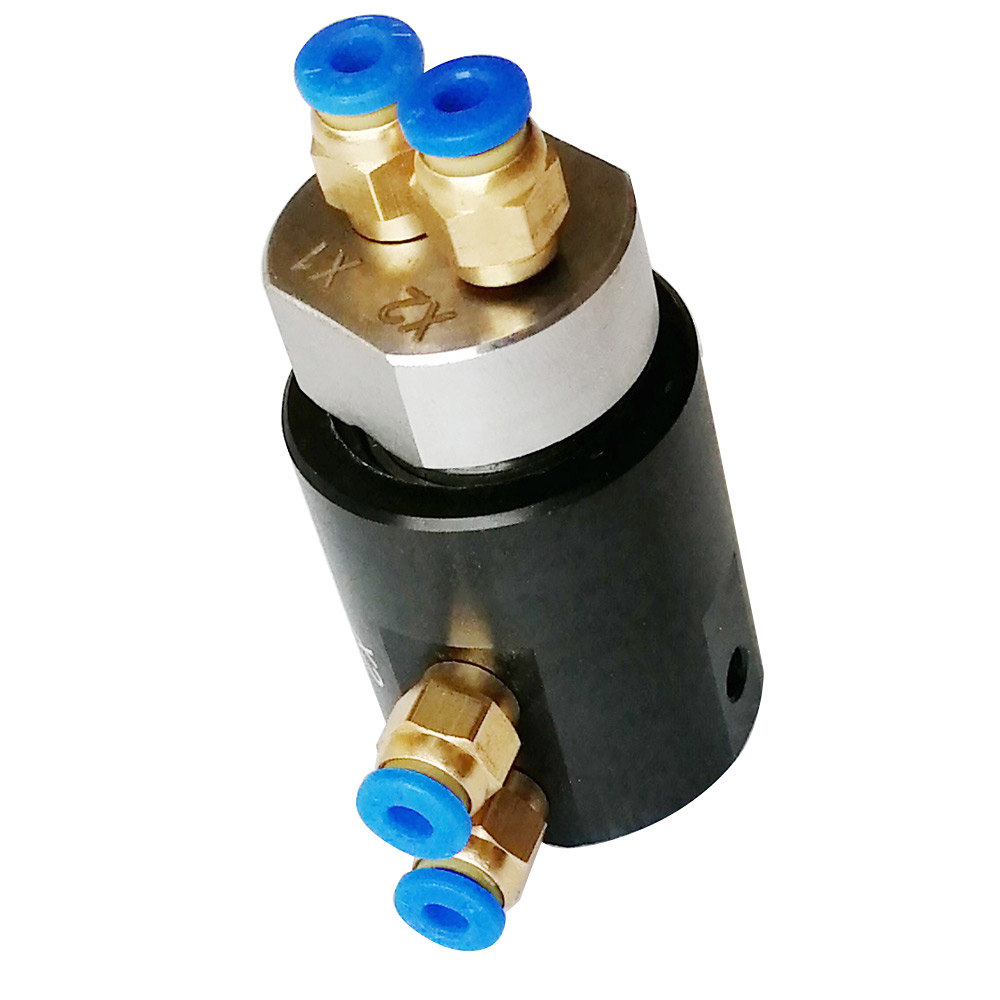

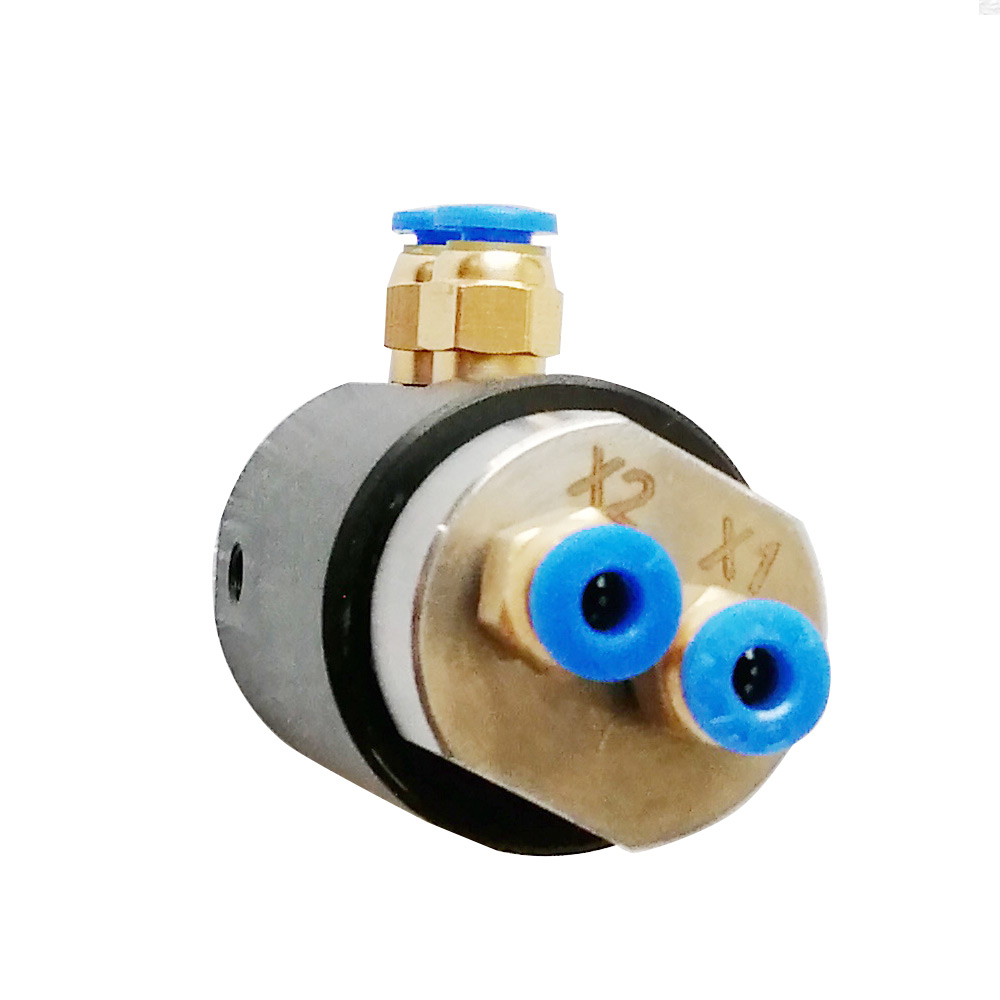

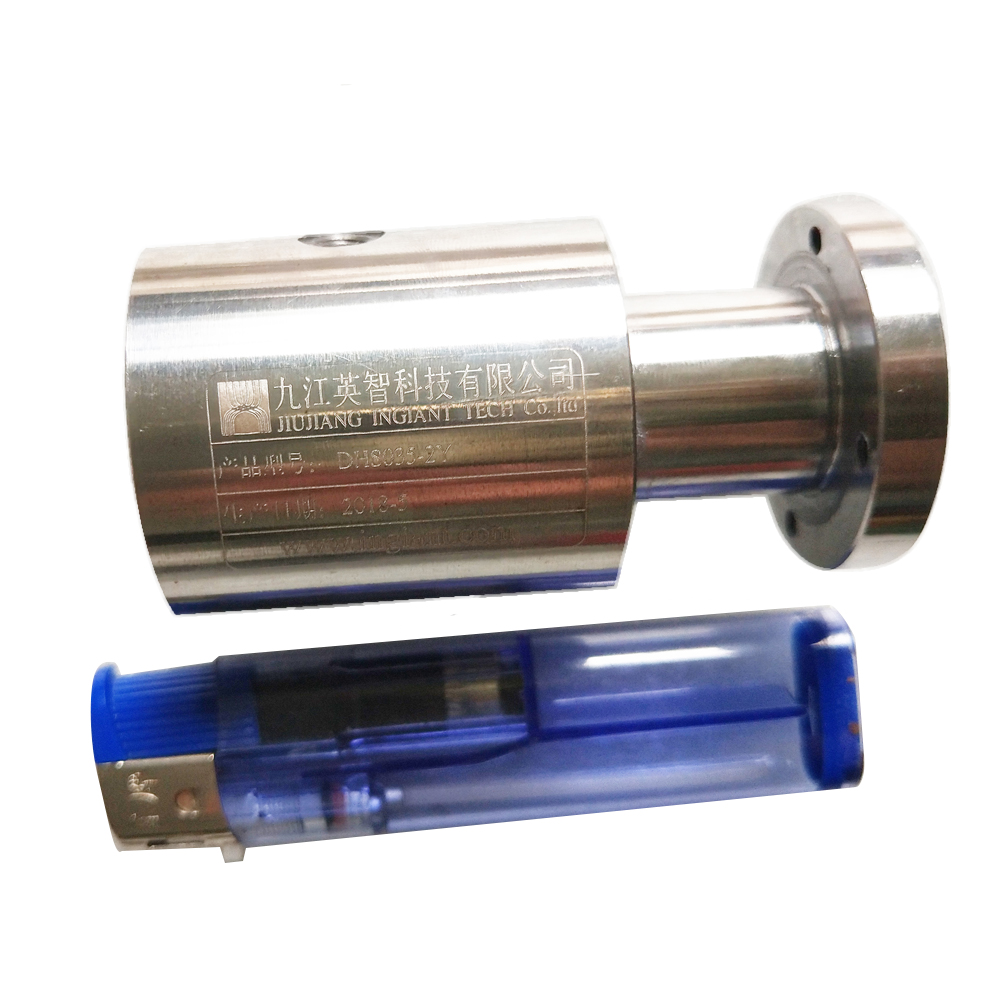

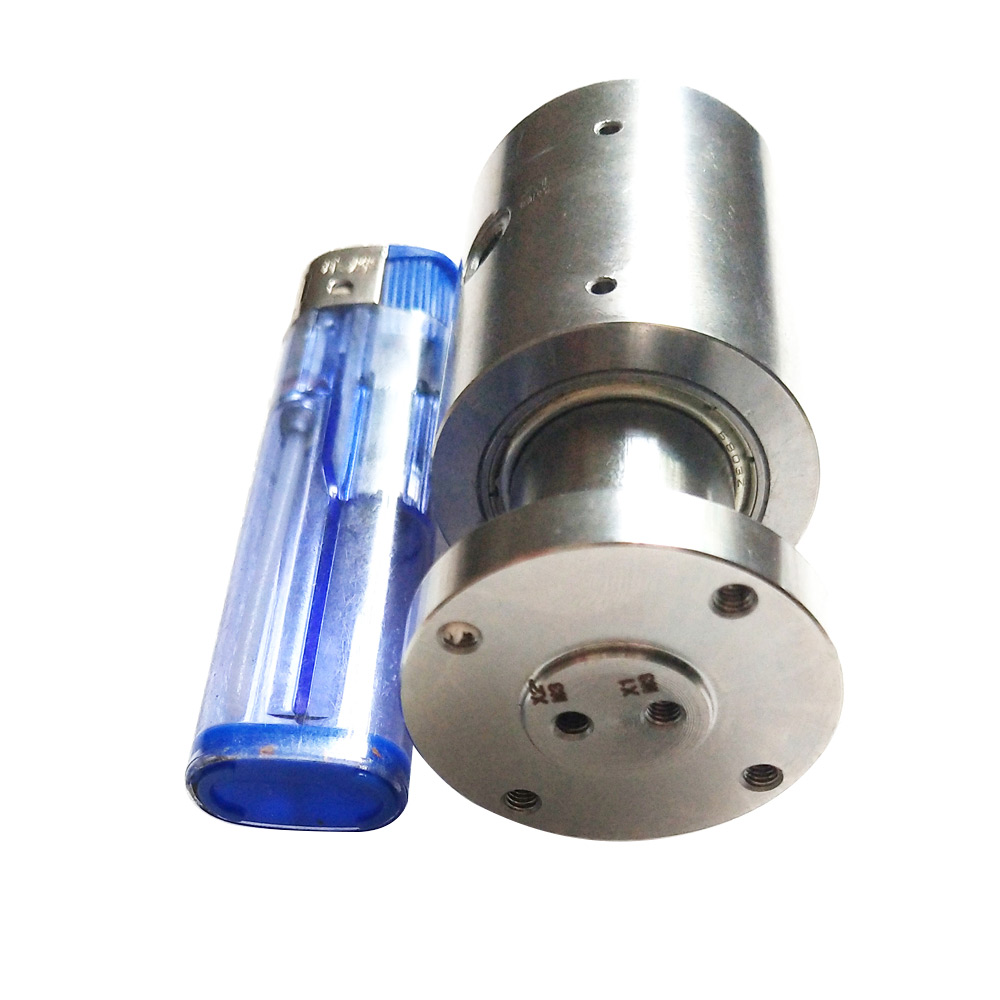

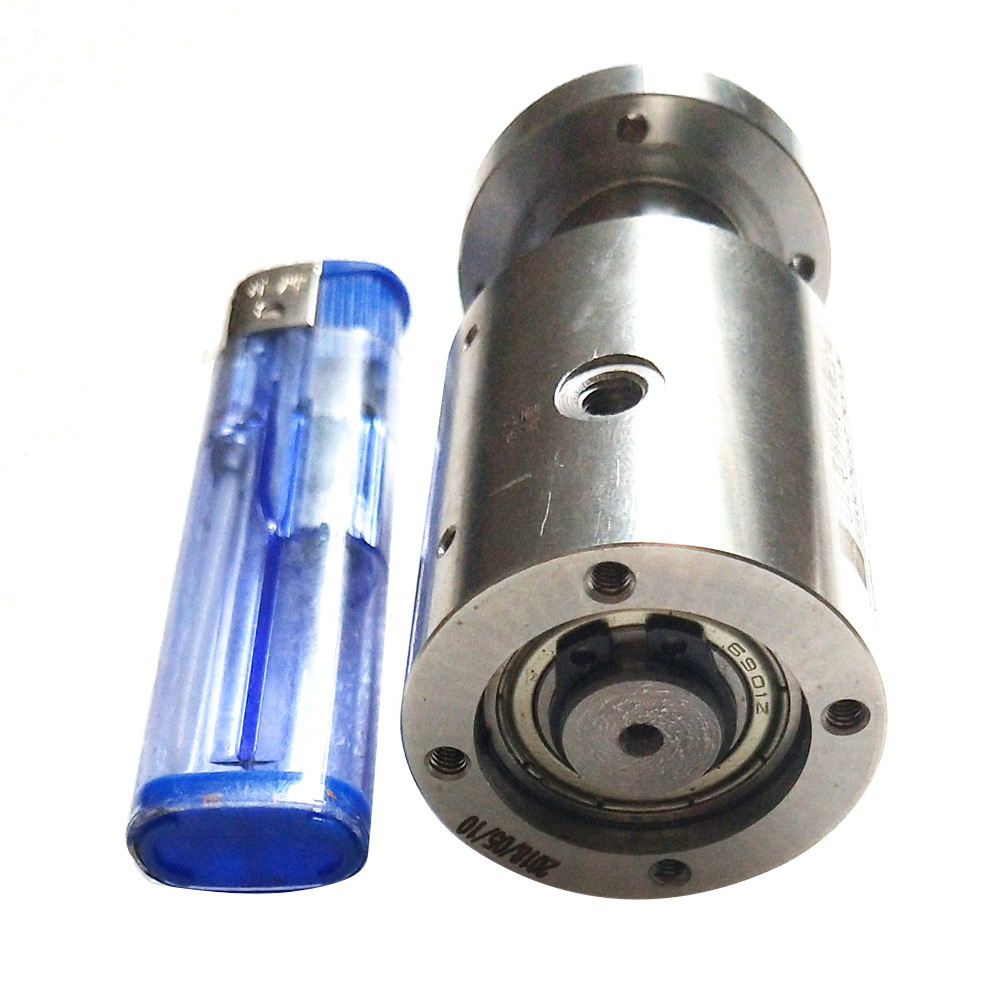

Ingiant 2 way miniature hydraulic rotary joint for hydraulic crane
Feature:
Hybrid rotary joint data/signal/power circuits with pneumatic and hydraulics
Compact structure
Can be customized specifications:
Number of electric circuits, pneumatic and hydraulic passages
Cable length
Working medium and working pressure of pneumatic and hydraulic passage
Rated speed
Typical application
Automatic welding machine system
Industrial filling equipment
Balanced seal rotary joint are generally used with fluid service (e.g. water, coolant, etc.), but can be used with steam and other gases. Balanced seal technology relies on optimizing the spring pressure to create a positive seal within the rotary union. The operating pressure of the media has little, if any, effect on the seal load. Balanced seals are typically flat face seals and the rotary unions are supported by ball bearings.Ingiant rotary unions are widely used in a variety of industries and applications, including oil and gas, food and beverage, aerospace, robotics and medical equipment.
Ingiant provide high quality rotary joint for customers, product have low torque, good sealing, materials durable, and we can make customized specifications for you.
Jiujiang Ingiant Technology is a professional customized manufacturer of rotary joints—an important parts of mechanical device that allows transfer of pressurized air from a stationary source into rotating machinery for heating, cooling, or transfer of fluid power. Ingiant’s entree into the rotating-union market was its unique design that incorporated balanced mechanical seals. That innovative design began the growth of the company.
Rotating joint applications include air clutches, gearboxes, machine-tool spindles, textile equipment, rubber and plastic manufacturing machinery, steel continuous casting machines, and paper-machine calender stacks.In 2015, the Ingiant product line was expanded to include steam joints and siphon systems for paper-machine dryer cans. More recently, added a full range of electrical slip rings used for the purpose of conducting electrical current or signals into rotating machinery.

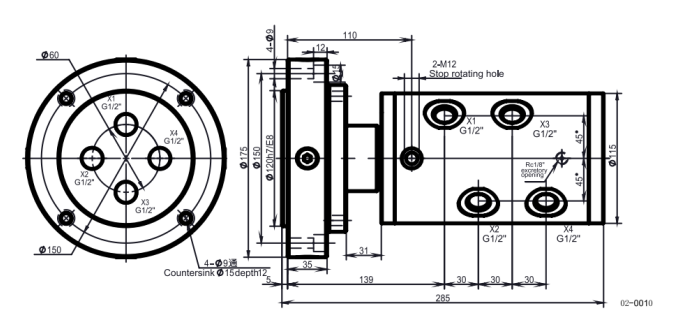

Product outline drawing:
Our advantage:
- Product advantage: Our products convince by high performance, wear resistance and high material quality of the contacts, which leads to high plant availability, flexibility and an economic price/performance ratio. A special focus is also placed on minimum friction and the lowest possible maintenance intensity.
- Company advantage: Ingiant covers an area of more than 8000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 150 staffs; The company owns complete mechanical processing equipment including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, own 27 kinds of technical patents of slip rings and rotary joints(include 26 utility model patents, 1 invention patent).
- customised advantage: The different Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value. We support our customers for customised solutions .
