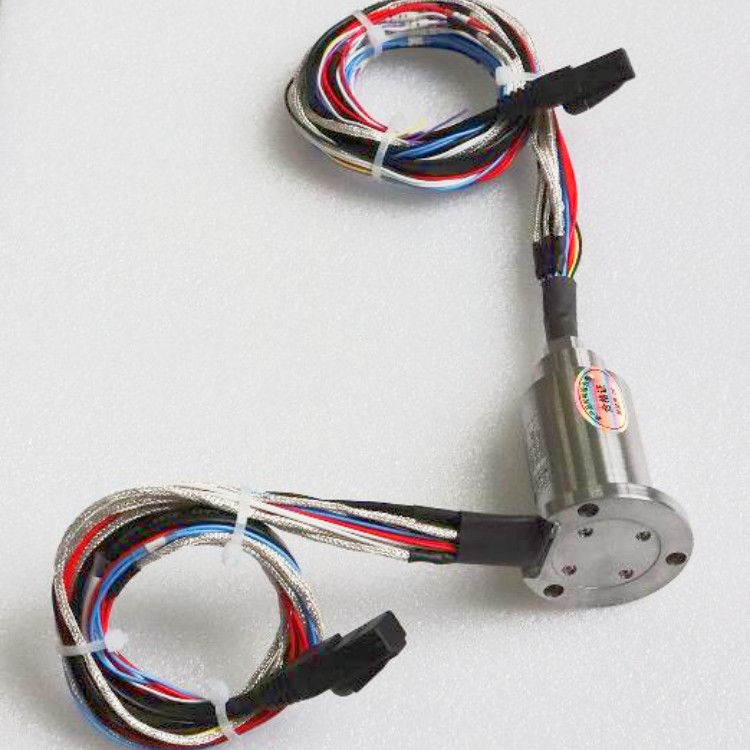

DHS033-26 customized solid shaft slip ring low electrical noise 26 channels diameter 33mm
What is a slip ring?
Slip rings are important electromechanical components for commercial and industrial machines in various fields of applications. They are found across industries, from crane technology to filling systems, packaging machines and medical technology. Within machinery, rotating components often prevent the transmission of electrical power, data, or signals via cables. Slip rings allow wireless power and signal transmission between stationary and rotating components. This is a reliable, maintenance-free, and low-wear way of transmitting power, signals, and data. In addition, the transmission of compressed air and gases can also be transmitted along the electrical lines. Because they are so essential, there are a variety of different slip rings available, so it can be overwhelming to find the right one.
|
DHS033-26 |
|||
|
The main parameters |
|||
| Number of circuits | 26 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements
Standard product outling drawing:
Our advantage:
- Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
- Company advantage: We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
- Customized advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
