4-Wire high reliability hollow shaft slip rings for wrapping machine
Use of the hollow shaft slip rings
A hollow shaft slip ring is fitted onto the hollow shaft. One or more screws fix the slip ring to the hollow shaft. With light loads, the clamping force is sufficient to fix the slip ring permanently to the shaft. If the wall thickness of the shaft is sufficient, the connection is improved by a screwed-in threaded hole.
The slip ring then has a positive connection that reliably prevents slipping. When using slip rings on media lines, it is important to ensure that the heat of the gases and liquids matches the operating temperatures of the modules. Hollow shafts are also very suitable for passing through the inner cable harness. It is thus protected in a particularly sustainable manner.
|

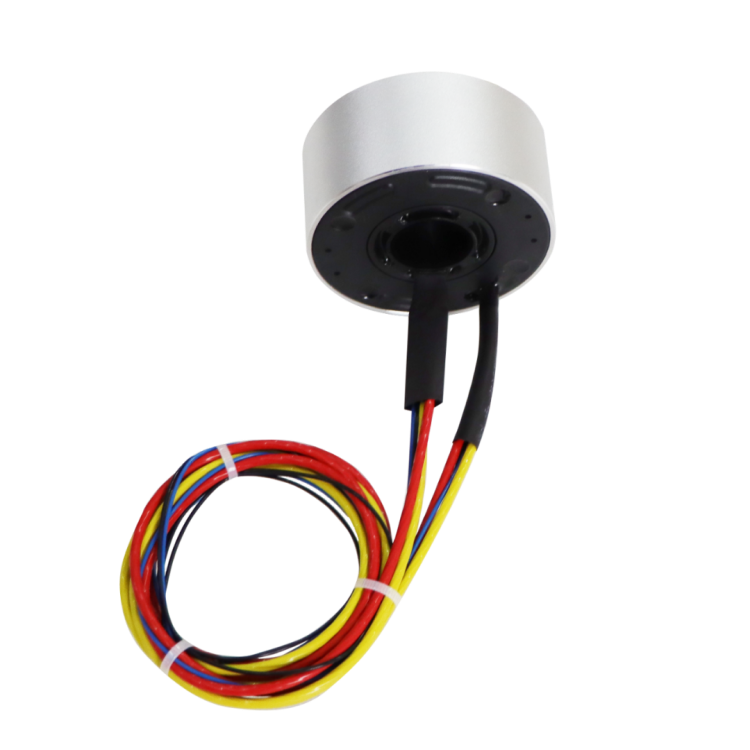

DHK025-4-018 |
|||
|
The main parameters |
|||
| Number of circuits | 4 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

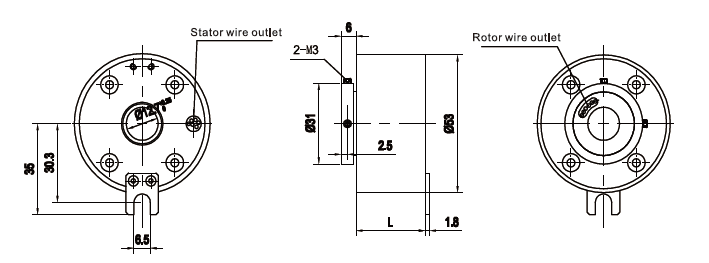

Standard product outline drawing:
