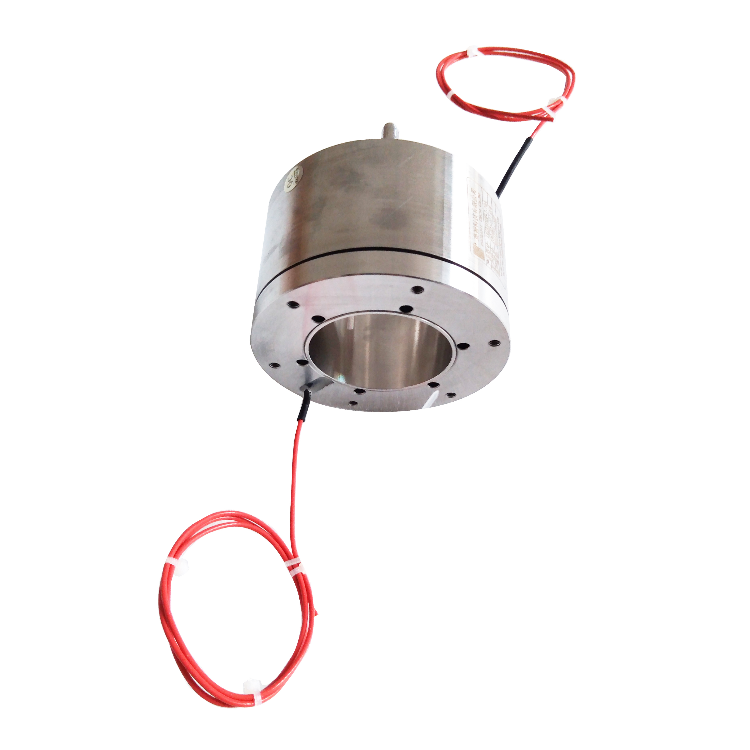

DHK050F-1-10A Standard through hole 50mm waterproof conductive slip ring with 1 channel 10A power
Waterproof conductive slip ring
DHK050F-1-10A waterproof conductive slip ring, with a through-hole diameter of 50mm (applicable to any number of channels: 1-48 optional), an integral precision conductive slip ring made of all aluminum alloy structure. It supports signal, communication, or 10A-30A power current, voltage 380VAC/24VDC. It is specially designed for underwater and waterproof operations, with through-hole installation, waterproof IP68, gold gold contact, imported sealing and electroplating treatment, multi-point contact, waterproof gland for outgoing lines, and customizable cables according to requirements
Product Features
- Waterproof and dustproof, with protection levels ranging from IP65 to IP68
- Multi contact design, long service life
- Anti corrosion stainless steel shell
- Integrated sealing structure design
- 1-channel power supply 10A
- Easy to install and maintenance free
Typical applications
- Automatic machines,Cable reels,Robotics, rotary sensors, urgent illumination equipment
- Exhibit/display equipment,Packaging,Rotary table
- Medical, pharmaceutical equipment,Converting machines
- Capping machines,Labeling machines,Filling machine,Machine tools
Waterproof conductive slip ring
|
DHK050F-1-10A |
|||
|
The main parameters |
|||
| Number of circuits | 1 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP65-68 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance. Comprehensive quality management system, strict management in all aspects of design, manufacturing, testing, etc., to ensure the use of materials, coupled with high-precision imported equipment and high-tech technology to ensure.
- Company advantage:Ingiant has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions. we also provide both OEM and ODM services for world famous brands and customers,covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, strong R&D strength to meet customers’ different requirment.
- Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request.
