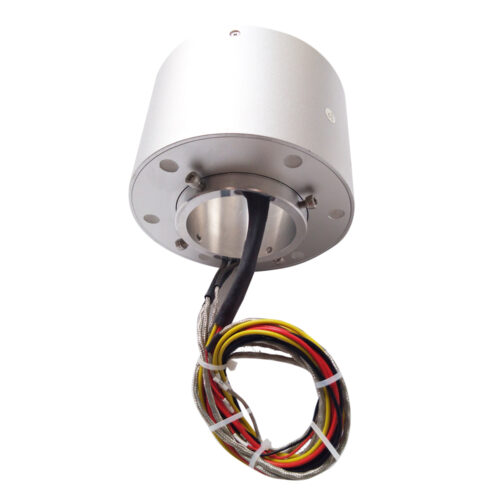

Ingiant 70mm through hole slip ring electrical current collector
Through hole slip rings electrical current collector
Through hole slip ring offers improved performance and reliability. It minimizes the risk of cable damage or entanglement during rotation, ensuring a smooth and uninterrupted transmission of signals and power. It also reduces the wear and tear on cables, prolonging their lifespan and mitigating the need for frequent replacements.
Another advantage of a through hole slip ring is its versatility. It can be customized to accommodate various types and sizes of cables, including power, data, and fiber optics. This flexibility makes it suitable for a wide range of applications, from transmitting high-power signals in heavy machinery to transferring sensitive data in communication systems.
One of the primary benefits of a hollow shaft slip ring is its ability to save space. By allowing cables or other components to pass through the center of the slip ring, it eliminates the need for additional space to accommodate separate connections. This compact design not only reduces the overall size and weight of the system but also simplifies installation and maintenance.
Through hole slip rings electrical current collector
Through hole slip rings are a type of electrical connector that enable the transmission of power and signals across a rotating interface. Unlike traditional slip rings, which are mounted directly onto a shaft or casing, through-hole slip rings feature a hollow center that allows for the passage of fluids, wires, or other components through the center of the rotating assembly.
| DHK070-13 | |||
| The main parameters | |||
| Number of circuits | 13 channels | Working temperature | “-40℃~+65℃” |
| Rated current | 2A~50A, can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Our advantage:
1）Product advantage: Light in weight and compact in size, easy to install. Built-in connectors facilitate installation, reliable signals transmission, no interference and no package loss. Unique integrated high frequency rotary joints that demonstrate great stability when transmitting signals.
2）Company advantage: The R&D team of Ingiant has strong research and development strength, rich experience, unique design concept, advanced testing technology, as well as years of technical accumulation and cooperation and absorption of foreign advanced technology, making our technology always maintain the international leading level and lead the industry. The company has provided various high-precision conductive slip rings and technical support for various military, aviation, navigation, wind power, automation equipment, research institutes and colleges for a long time. The mature and perfect solutions and reliable quality have been highly recognized in the industry.
3）INGIANT adheres to the business philosophy of “customer-centered, quality-based, innovation-driven”, seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warranty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.
Ingiant slip ring advantage:
One of the key advantages of through hole slip rings is their ability to accommodate different types of media passing through the center hole.
This versatility allows for the integration of various components, such as optical fibers, pneumatic tubes, hydraulic lines, or multiple wires, into a single assembly.
This consolidation of connections not only simplifies the overall design but also reduces the risk of wear and tear on individual wires or components.
