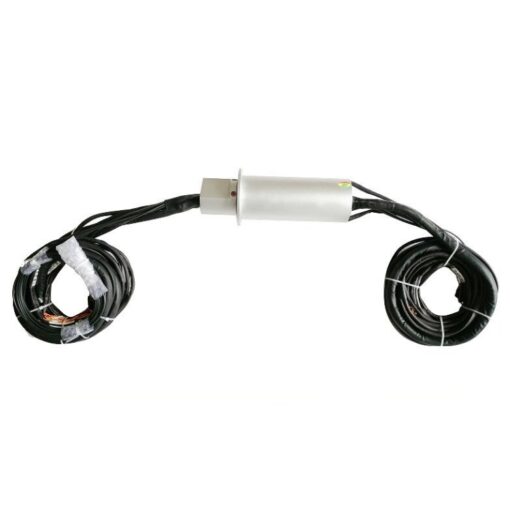

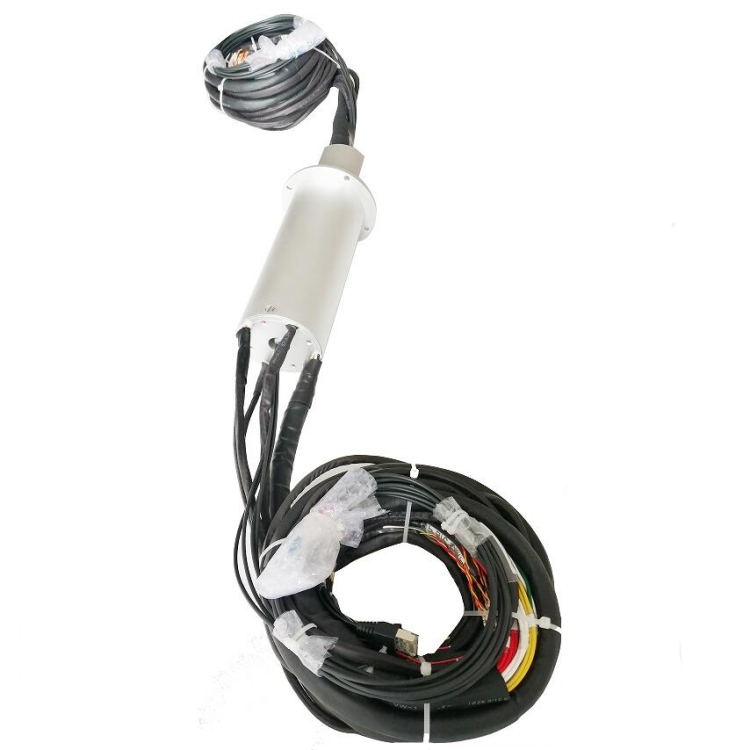

Ingiant capsule slip rings 68channels OD 84 mm with flange

Capsule slip rings with various forms, maintenance free, gold contact, silver fiber brush, low voltage. Also can be combined with other types rotary joints like Ethernet, fiber optic rotary joint (FORJ), hydraulic, radio freqency.

Feature

360° rotating signal and power transmission, such as control signals, video signals, HD signals, Ethernet, sensor
Can reach military quality, gold-gold contacts, fiber brushes technology
Low torque, low insertion loss, low contact resistance, long working life
Stator flange or without flange installation for option
Integrated structure design, easy installation

Category: Capsulated Slip Rings Tag: Capsulated Slip Rings

Description

DHS084-68-4F
The main parameters
Number of circuits	68	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

Product drawing:

Our advantage:

Product advantage: exclusively suitable for the transmission of a wide variety of liquids and media such as gas or compressed air. For the smart clinic of the future, hybrid electrical rotating unions are needed that can combine the transmission of media, electricity and data. It is crucial that the different substances in a multi-channel rotary feedthrough can be sharply separated from each other.
Company advantage: Transmission technology for complex industrial and safety-relevant applications form the core of our product range. All products can be individually adapted to the applications in order to offer you added value. Premium engineering – that is our claim for every single product we manufacture. We would like to convince you of this.
Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has become the long-term designated qualified supplier for numerous military units &research institutes, domestic and foreign companies.
