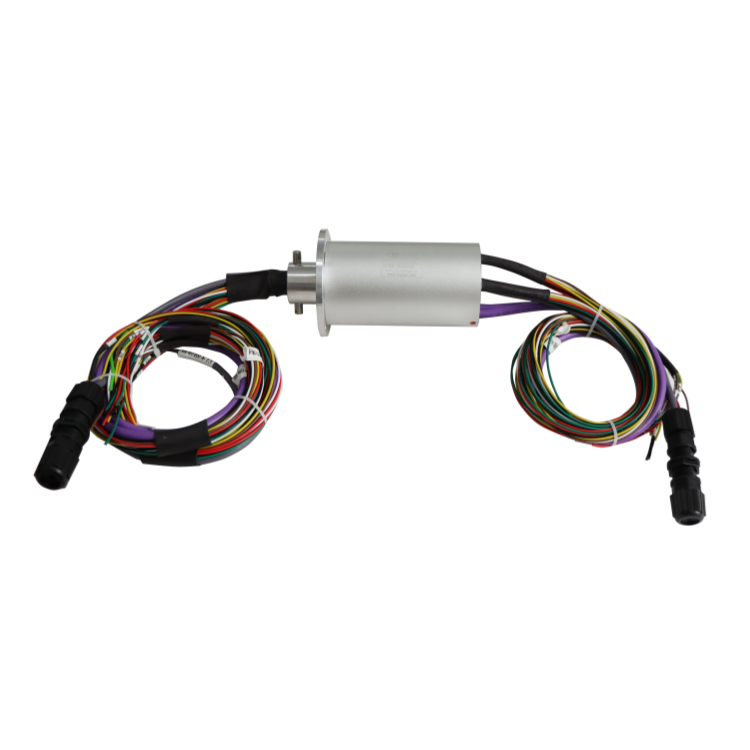

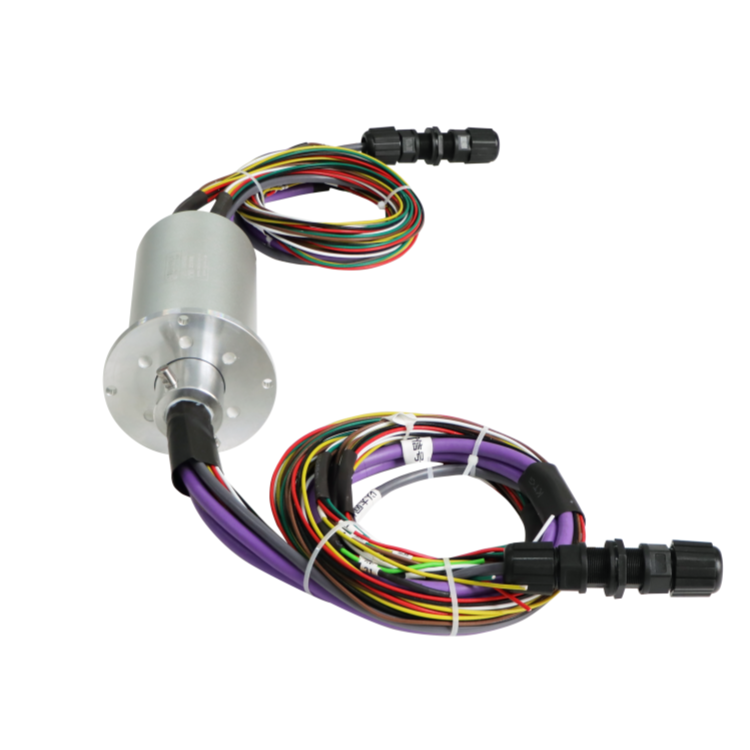

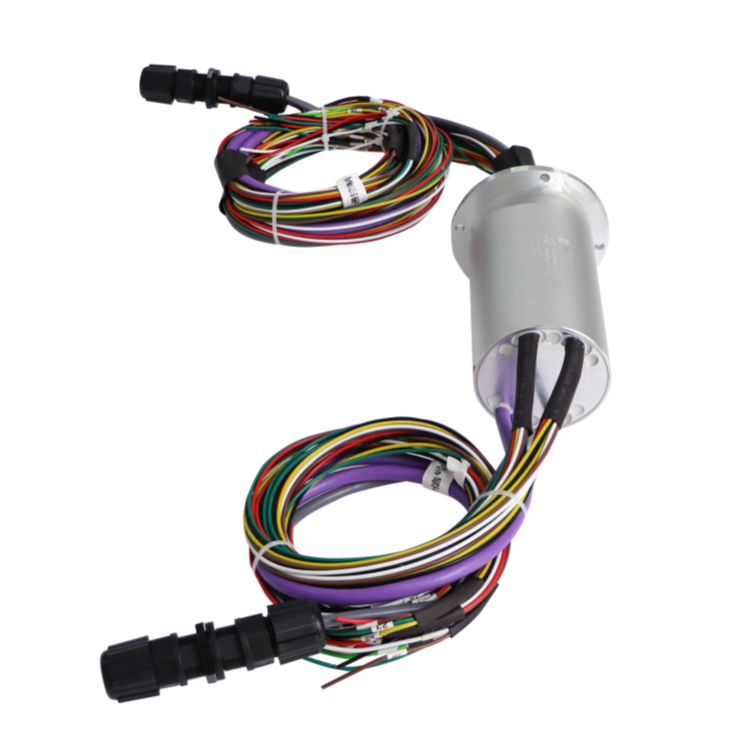

DHS078-44-002 customized Ethernet slip ring diameter 78mm hybrid power and signal

DHS078-44-002
The main parameters
Number of circuits	44	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

Product drawing:



Our advantage:

1. Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
2. Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
3. Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.

What is an Ethernet slip ring (network cable slip ring)?

As the name suggests, the Ethernet slip ring allows the transmission of Ethernet signals through a rotating interface. It can be called a network cable slip ring, a network slip ring, or an RJ45 slip ring. Ethernet slip rings transmit power and Ethernet signals from fixed structures to rotating structures through the contact between precious metal rings and brush wires. This type of signal slip ring can mix power and signals, and can also transmit multi-channel low-frequency signals and currents. Suitable for 10/100/1000 Base T transmission and equipped with RJ45 plug-and-play plug, optional M12, CAT5E, CAT6 type cables. Gigabit Ethernet slip rings are used in wind turbines, industrial robots, and radar antennas, among others.



Ethernet Slip Ring – DHS Series

Accept customization and transmit 100/1000M Ethernet signals

Insertion loss, return loss and crosstalk are three important parameters of Ethernet slip rings. All Ethernet slip rings of INGIANT Technology are made of reliable precious metal materials and aluminum casings. Mature and stable technology enables the production of slip rings with remarkable features such as stable transmission, no packet loss, anti-crosstalk, large return loss and small insertion loss. DHS series Ethernet slip rings are specially developed and designed for 250MHZ signal transmission. While transmitting 1-2 Gigabit Ethernet signals, it can be combined with 1-30 power rings (2-20A), and the design can be customized according to actual needs.





Features

It has the advantages of stable transmission, no packet loss, anti-crosstalk, large return loss and low insertion loss.

Fiber brush bundle contact structure ensures product life

Stable transmission of 1-2 channels of Gigabit Ethernet signals

Integrated structural design for easy installation

Protection grade IP51-IP68 optional

Standard models available and customizable

RJ45 male and female connector optional

Use high-quality Ethernet cables

maintenance free
