Customized precision military slip rings are widely used in military and defense fields
What is a military slip ring?
Military slip rings and military rotary connectors are widely used in the military and defense fields. Slip rings first appeared in the military field, and later gradually became popular in the civilian field. Conductive slip rings are used in military armored vehicle turntables, military robots, shipborne radar turntables, ship electric propellers, missile launchers, airborne radar turntables, radar guidance, airborne early warning systems, defense systems, etc. Military equipment often has extremely high requirements and has standardized and streamlined development and acceptance processes. The products produced have passed the national military standard acceptance which is also a reflection of the strength level of the slip ring manufacturer.

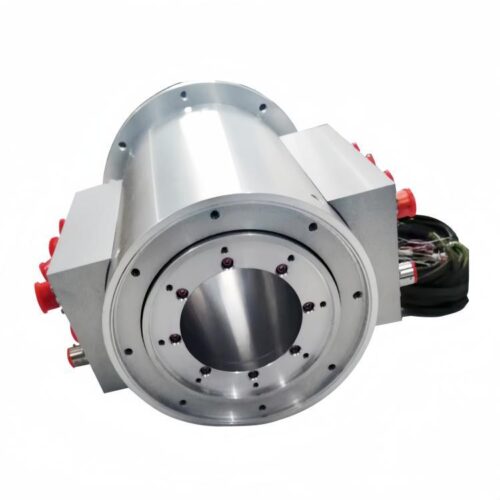

Military slip ring
Possessing weapons and equipment management certification and providing one-stop solutions including optical transceivers
Ingiant Technology conductive slip rings and rotary joints have been successfully used in the military and national defense fields, and have passed the weapons and equipment quality management system certification, covering both land, sea and air fields. We have in-depth cooperation with domestic institutions, universities and research institutes such as the Chinese Academy of Sciences.
In view of the particularity of military slip rings, no substantive information will be released. If necessary, please contact us directly.
|
Electrical Slip Ring Parameters |
|||
| Rings | 1-200 (or more) | Current | 2A,5A,10A,20A,25A |
| Rated Voltage | 0~600VDC/VAC | Max speed | 15000RPM |
| Housing Material | Aluminum Alloy, engineering plastic, stainless steel, etc | Torque | 0.02N.m;+0.01N.m/ 6rings |
| Working life | >80 million | Contact Material | Precious Material |
| Electrical Noise | <5mΩ | Contact resistance: | <5mΩ |
| Dielectric Strength | 2500VAC@50Hz | Lead Wire | UL Teflon@Awg22,Awg16 |
| Insulation Resistance | 1000 MΩ / 500VDC | Lead Length | 300mm (per required) |
| Working Temperature | -40℃~ 80℃ | Protection Grade | IP51 – IP68 |
| Operating Humidity | 10% to 95% RH | Material | RoHs |
Standard product outline drawing:
Our Advantage
- Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions. We obtained ISO 9001 certification, 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), we also provide both OEM and ODM services for world famous brands and customers,covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, strong R&D strength to meet customers’ different requirment.
- Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
- Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has become the long-term designated qualified supplier for numerous military units &research institutes, domestic and foreign companies.
