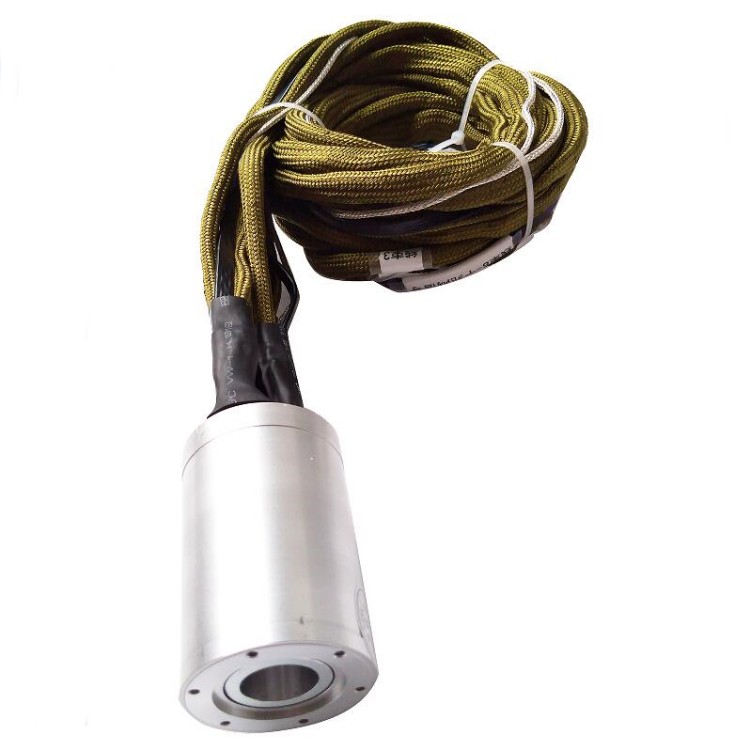

DHK022-35 through bore slip ring 35 circuits ,hole diameter 22mm
Ingiant technology supply through bore slip rings are widely used for rotating solutions. applications as medical rotary CNC worktable, CNC machining center, wire reel, packaging machinery, wind turbine, etc. In the future, through hole/bore slip rings will be widely used in new areas such as automation equipment, automatic detection equipment, automated robots, and robotic arms.
Options
- Wire length and exit way can be customized for rotor and stator
- Optional for flange mounting
- Optional for IP65, IP68
- High speed customization
- High temperature customization
- Hybrid pneumatic/hydraulic and electric slip ring can be mixed
- Hybrid slip ring for various signal of servo system, power line and encoder line
- Special environment can be customized, such as quakeproof, high temperature, etc.
|
DHK022-35 |
|||
|
The main parameters |
|||
| Number of circuits | 35 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements
Standard product outline drawing:
Our Advantage
- Product advantage: Our products convince by high performance, wear resistance and high material quality of the contacts, which leads to high plant availability, flexibility and an economic price/performance ratio. A special focus is also placed on minimum friction and the lowest possible maintenance intensity.
- Company advantage: As manufacturer of various slip ring bodies,Ingiant elies on a combination of targeted design processes, a selection of the best raw materials, professional production conditions, 100% quality control and professional assembly at the customer’s site.
- Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
