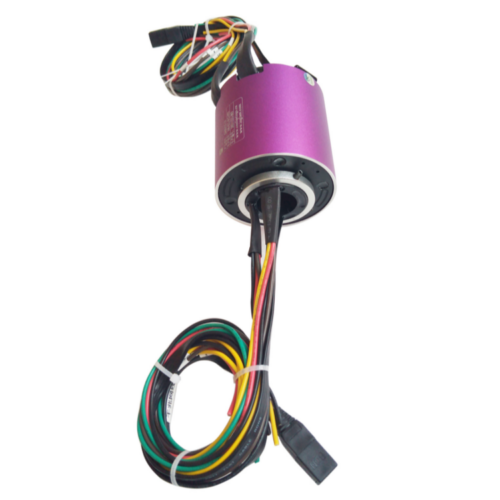

DHK025-19 INGIANT 1000M Ethernet slip ring with hollow shaft hole diameter 25mm 19channels
Ethernet series 1000M Ethernet slip ring
Features：
- The Ethernet slip ring is specially designed for 250MHz frequency signals.
- It is designed to transmit 100M/1000M Ethernet signals.
- It has stable transmission, no packet loss, no cross-coding, small return loss, small insertion loss, strong anti-interference ability, and supports POE Etc.
- Ethernet slip rings can mix electrical power paths and signal paths.
- It can transmit up to 8 Ethernet channels at the same time, and provides RJ45 connector for direct plugging and unplugging Support RJ45 connector, ultra-low BER bit error rate and ultra-high signal-to-noise ratio.
- Various types of Ethernet slip rings, Gigabit network cable slip rings, and 1000M network slip rings can be customized
Typical Applications：
Industrial Machinery – Combined machining center machine tools, rotary indexing tables; Heavy equipment turrets, cable reels, test equipment; Packaging machines, stackers, magnetic clutches, process equipment; Rotary sensors, emergency lighting, robotics; Exhibition/display equipment , medical equipment
|
DHK025-19 |
|||
|
The main parameters |
|||
| Number of circuits | 19 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
- INGIANT adheres to the business philosophy of “customer-centered, quality-based, innovation-driven”, seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warrenty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.
- Customized advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
