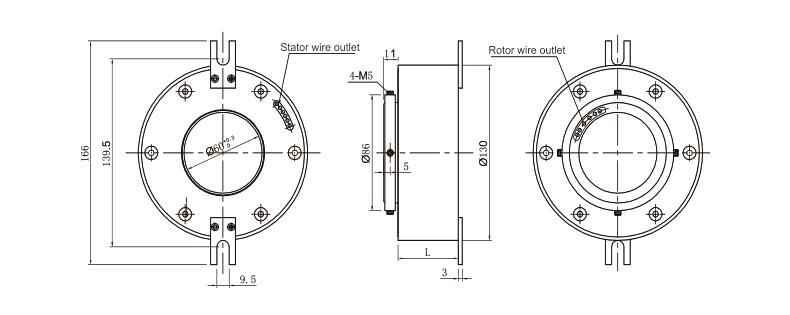

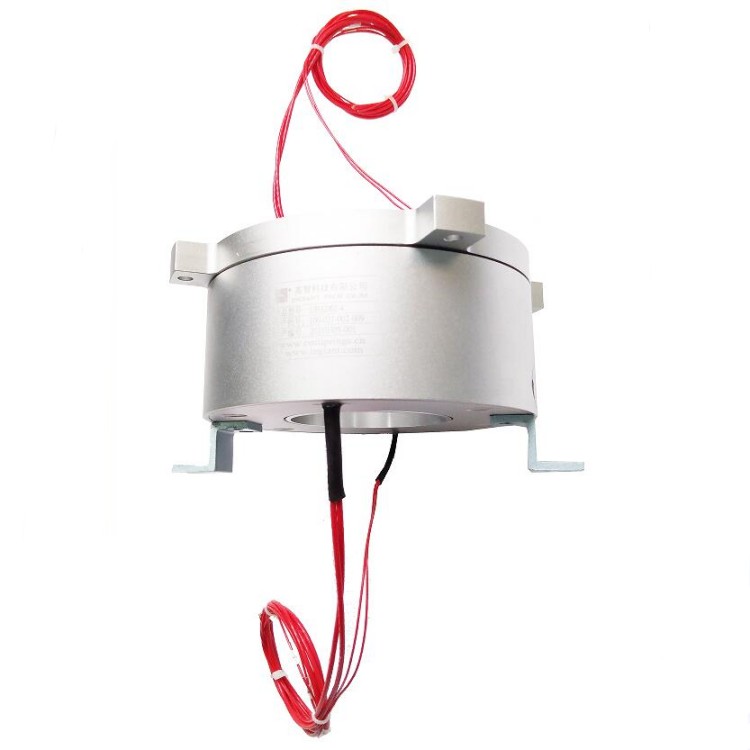

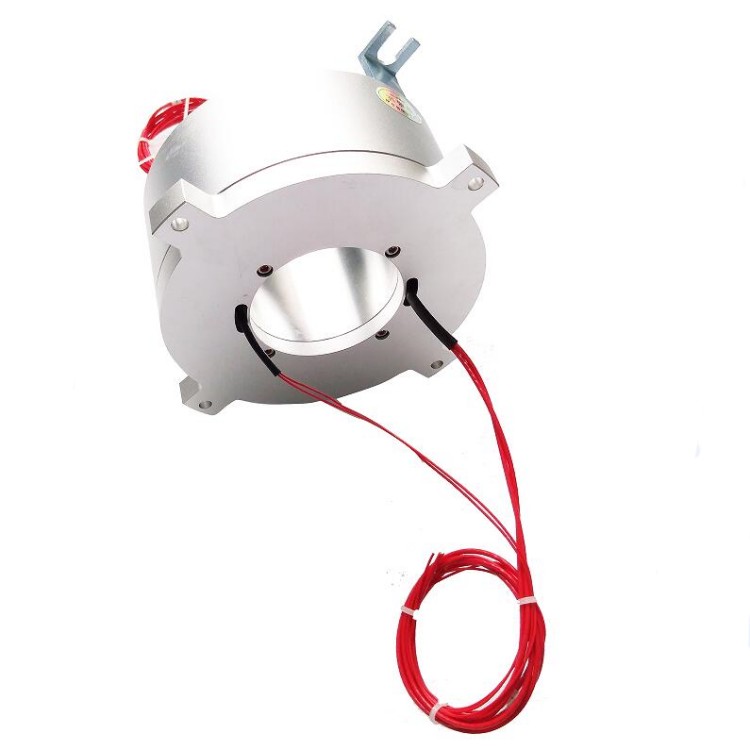

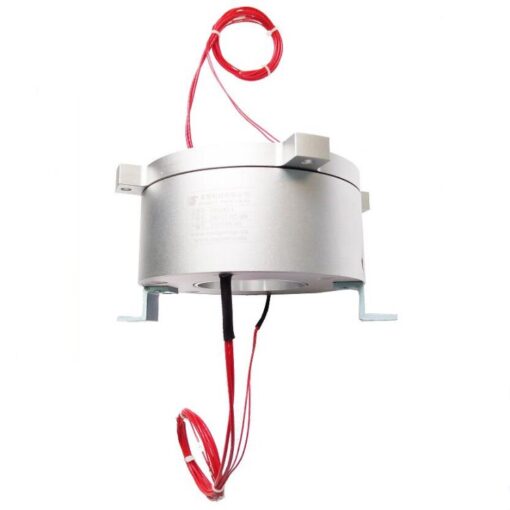

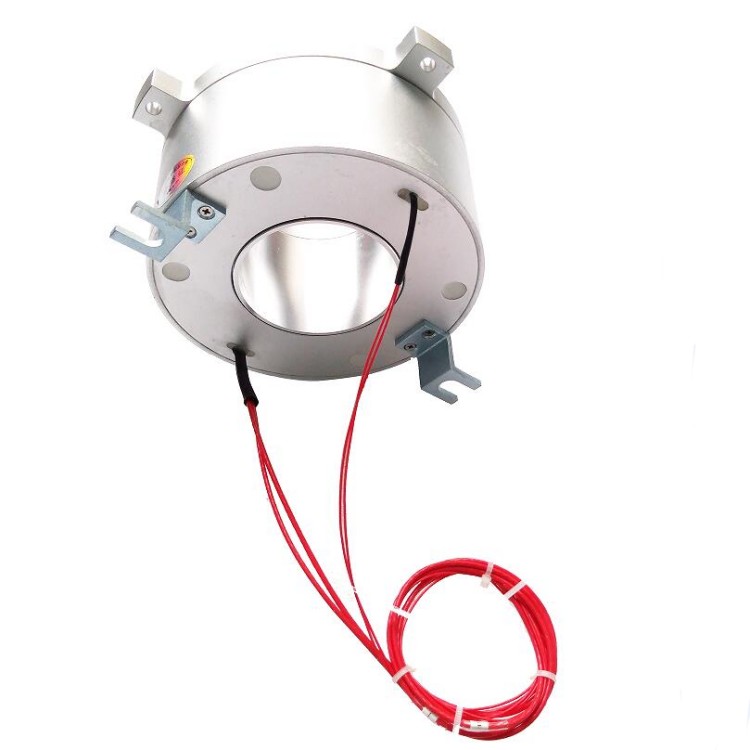

DHK062-4 through hole slip ring hole diameter 62mm with 2channels 10A 2channels 1A

The through hole  slip ring is a collective term for a series of conductive slip rings with a central hole, mainly used for transmitting precision signals, weak currents, large currents, and high voltages;

Mainly designed for gas-liquid pipelines passing through or rotating motor shafts

Adopting advanced precious metal cluster brush type multi-point contact, ensuring reliable contact under extremely low friction.

The diameter of the through hole ranges from 12.7mm to 210mm

Gold plated ring+alloy brush (gold plated)

Support signal and power hybrid transmission

Customizable circuit number and current voltage based on standard models

Customizable for various types of hollow shaft conductive slip rings, through hole slip rings, through hole conductive slip rings, hollow shaft slip rings, etc

Typical applications of through hole slip rings:

DHK series integrated precision conductive slip rings are mainly used in situations where 360 degree continuous rotation is required and power supply cannot be interrupted. They are mainly used in drying equipment (such as dryers, drying and sterilization equipment, grain dryers, etc.), casting film equipment, three-phase AC/DC instrument calibration devices, amusement facilities (such as children’s riding series amusement machines, carousels), grinding and polishing machines, cranes, security inspection special equipment Any device that requires 360 ° rotation to conduct electricity or transmit various control signals, such as movie equipment.
