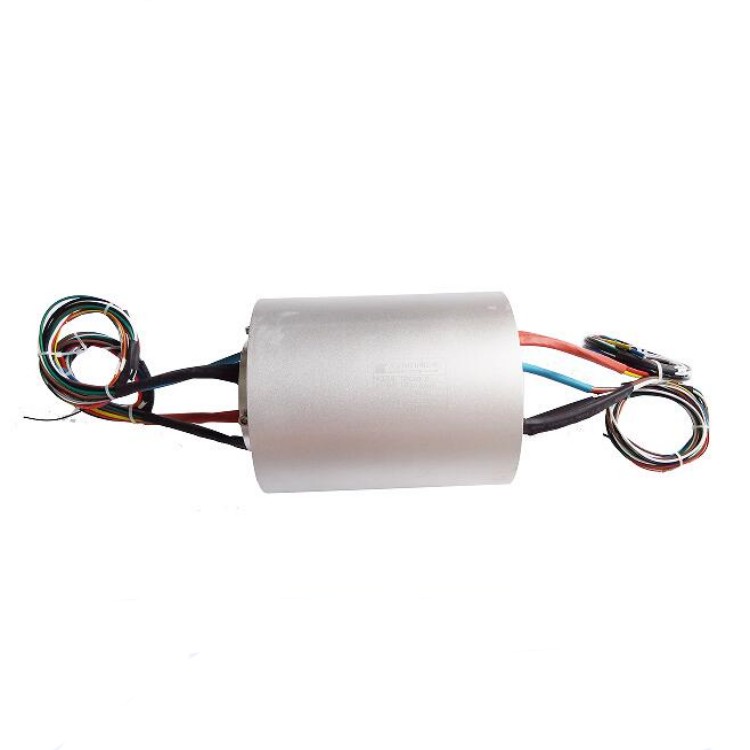

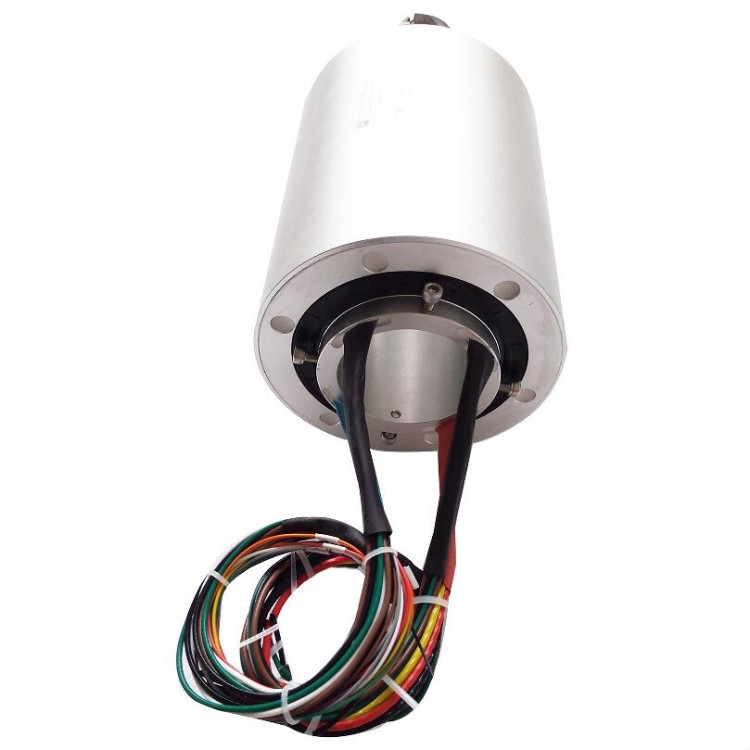

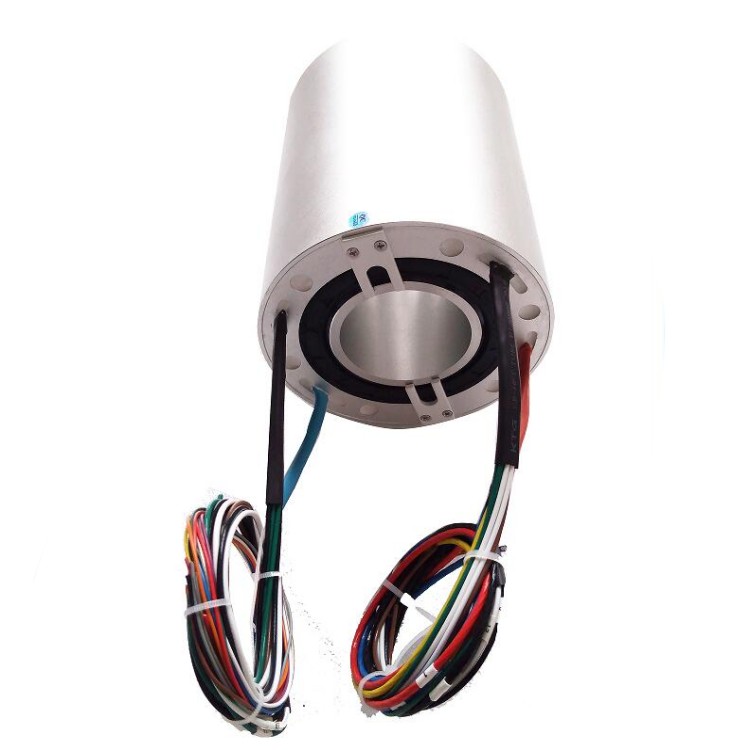

DHK065F-32 Waterproof through hole slip ring hole diameter 65mm 32 channels
The 360-degree rotating through hole slip ring is also called hollow shaft slip ring and hollow conductive ring. It is a 360-degree rotating conductive device with a hole in the center. For example, some equipment needs to conduct electricity or transmit signals during 360° rotation. If the equipment has a hydraulic or pneumatic transmission shaft, then the IngiantDHK series through-hole conductive slip ring can be easily installed and fixed on the transmission shaft of these equipment. And stably transmit current or various control signals.
Feature：
- The advanced precious metal cluster brush type multi-point contact ensures reliable contact under extremely low friction;
- Via diameter is optional from 5mm to 300mm;
- Current from 2A to 1000A, voltage from 0~300VAC/VDC, single channel 1000A can be customized;
- The number of lines (number of rings) ranges from single to 300, fully meeting your different transmission schemes;
- The shell is made of metal material for better protection;
- Integrated structure design, easy to install.
|
DHK065F-32 |
|||
|
The main parameters |
|||
| Number of circuits | 32 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

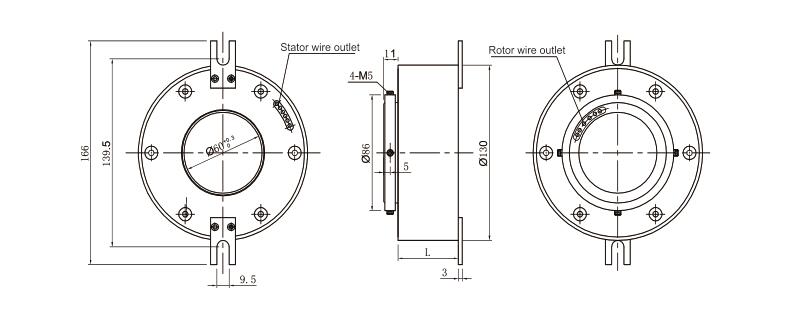

Standard product outline drawing:
Our Advantage
- Product advantage: The various Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value.
- Company advantage: Ingiant provides various high-precision conductive slip rings and technical support for various military, aviation, navigation, wind power, automation equipment, research institutes and colleges for a long time. We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality. As a high-end conductive slip ring manufacturer, the company not only provides high-quality standard products, but also relies on our technical advantages, focusing on providing high quality products to meet customers high requirements.
- customised advantage: The different Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value. We support our customers for customised solutions .
