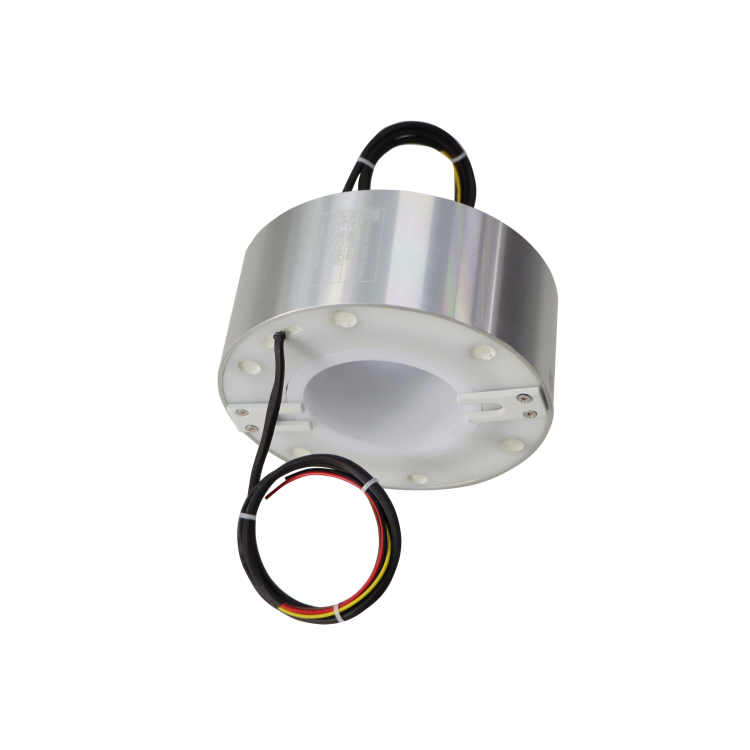

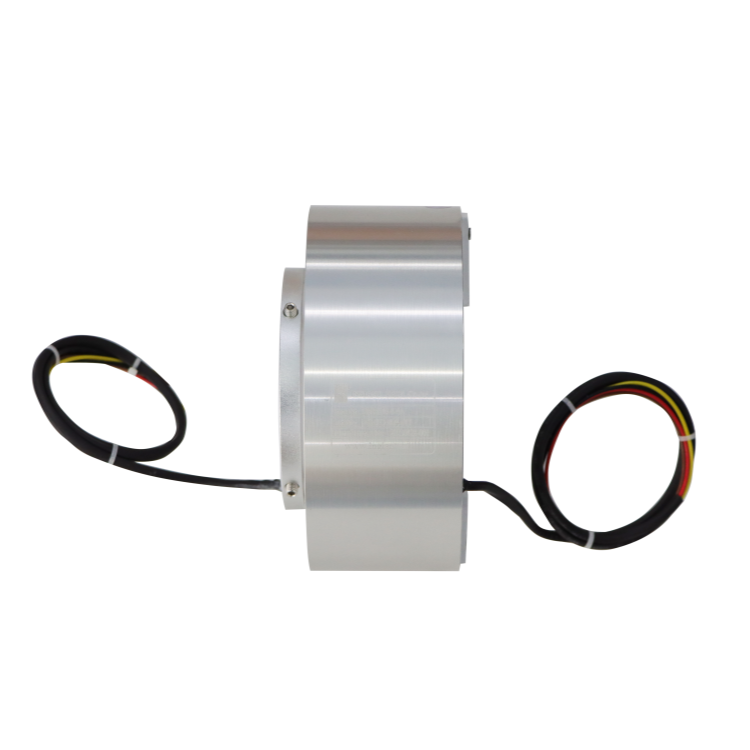

DHK070-4-4A through hole slip ring hole diameter 70mm 4channels 4A
Features: The through hole slip ring fully meets the mixed transmission of power, control and digital signals of 360-degree unlimited rotation; INGIANT through-hole slip ring adopts advanced fiber brush technology, maintenance-free and no lubricant required; each channel has multiple points of contact, low contact pressure, low noise and low contact wear, ultra-long service life; standardized and modular design, complete product specifications, and can customize the products required by customers.
Typical applications: Industrial machine machining centers, rotary tables, heavy equipment towers, cable reels, testing equipment, packaging equipment, stackers, magnetic clutches, process control equipment, rotation sensors, emergency lighting, robotics, exhibition/display equipment , medical equipment, etc.
|
DHK070-4-4A |
|||
|
The main parameters |
|||
| Number of circuits | 4 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

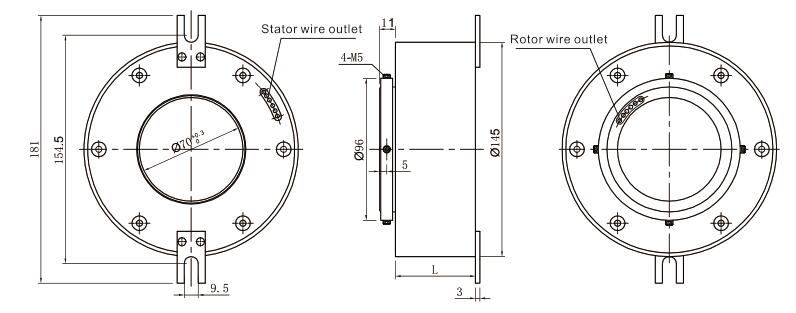

Standard product outline drawing:
Our Advantage
- Product advantage: exclusively suitable for the transmission of a wide variety of liquids and media such as gas or compressed air. For the smart clinic of the future, hybrid electrical rotating unions are needed that can combine the transmission of media, electricity and data. It is crucial that the different substances in a multi-channel rotary feedthrough can be sharply separated from each other.
- Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
- Customized advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
