DHK080-38 standard precision conductive through hole slip ring hole diameter 80mm 38channels

DHK080 series through hole slip ring has a through hole diameter of 80mm (applicable to any rotating device with a hole diameter ≤80mm), an outer diameter of 155mm, and the housing material can be plastic, aluminum alloy or stainless steel. It is a precision conductive slip ring with an integral structure. DHK080 series slip rings can stably transmit 10A current (magnification * 10A) or 2A signal.

Features

It adopts advanced precious metal cluster brush type multi-point contact to ensure reliable contact under extremely low friction;
It can stably transmit 1~108 currents/signals;
A variety of standard specifications can be customized upon request;
It supports mixed transmission of signals and power, and can Mixed transmission of video, data and other signals;
Integrated structural design, easy installation.

Application fields:
Amusement park equipment, medical equipment, textile industry equipment, mining engineering machinery, silicone product production equipment, plastic product production equipment, carousel amusement equipment, automated production equipment, pearl cotton (EPE) polyethylene foam plastic machinery and equipment, Industrial robots, educational simulation equipment, engineering testing instruments, metal surface finishing equipment, metal mirror processing equipment, automatic polishing equipment, robotic arms.

Category: Through bore slip rings Tags: Hollow shaft slip ring, Through bore slip ring, through hole slip ring

Description

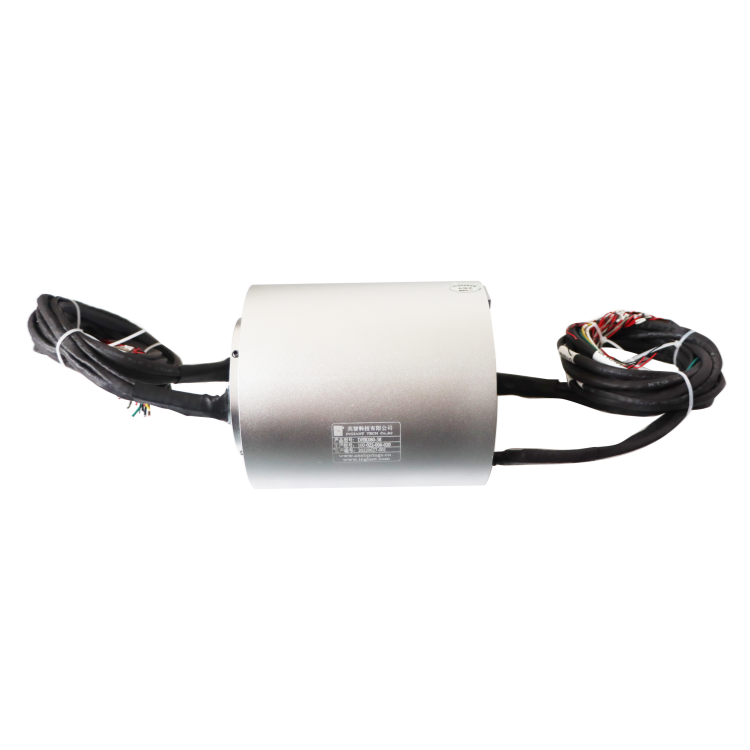

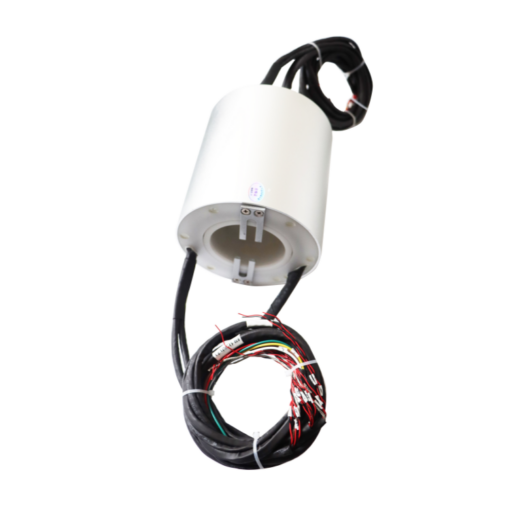

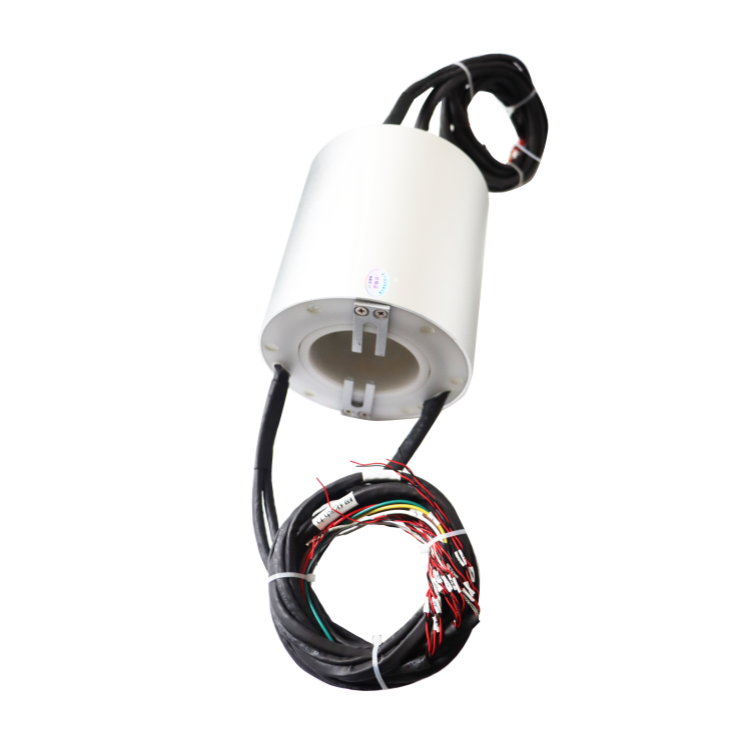

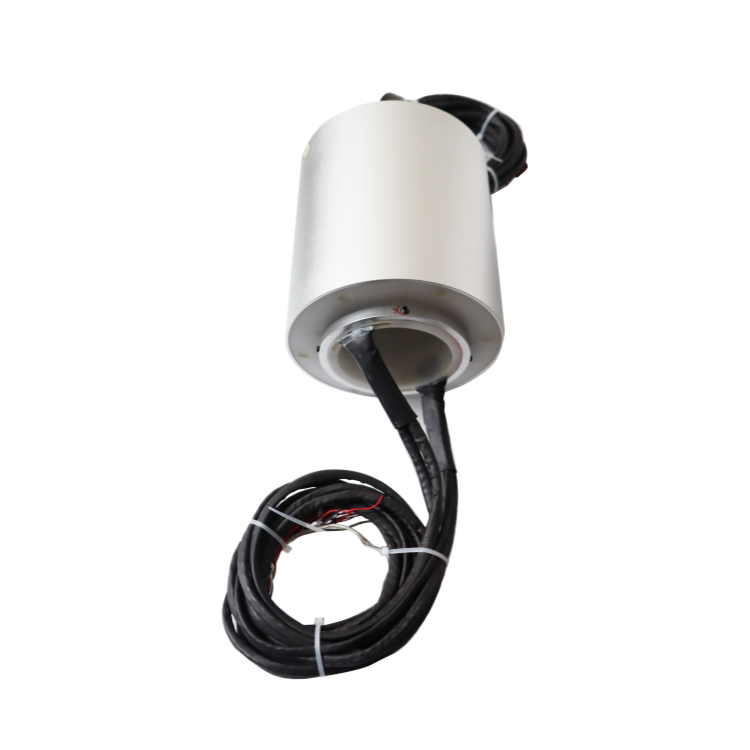

DHK080-38
The main parameters
Number of circuits	38	Working temperature	“-40℃~+65℃”
Rated current	2A.5A.10A.15A.20A	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

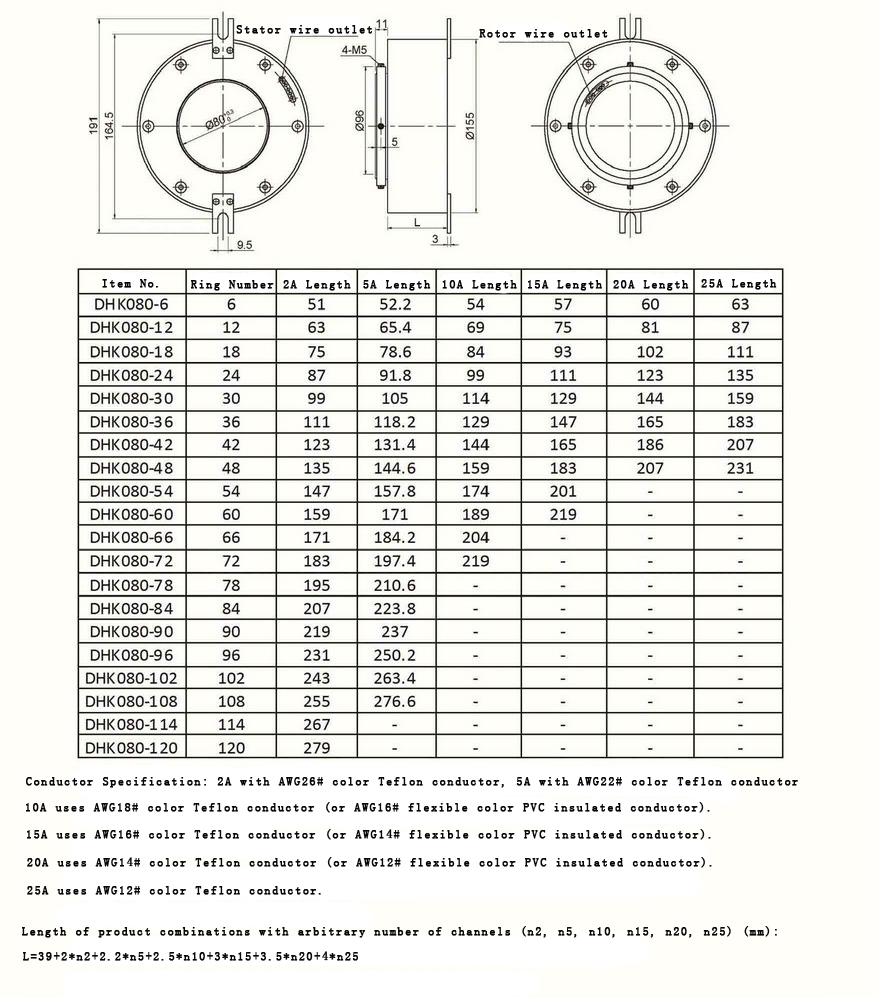

Standard product outline drawing:

Our Advantage

Product advantage: Small, medium and large slip rings with hollow shaft and high-quality bearing technology for long service life and high rotation speeds. Standardised and modularised design.Combined power and signal versions possible.
Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
