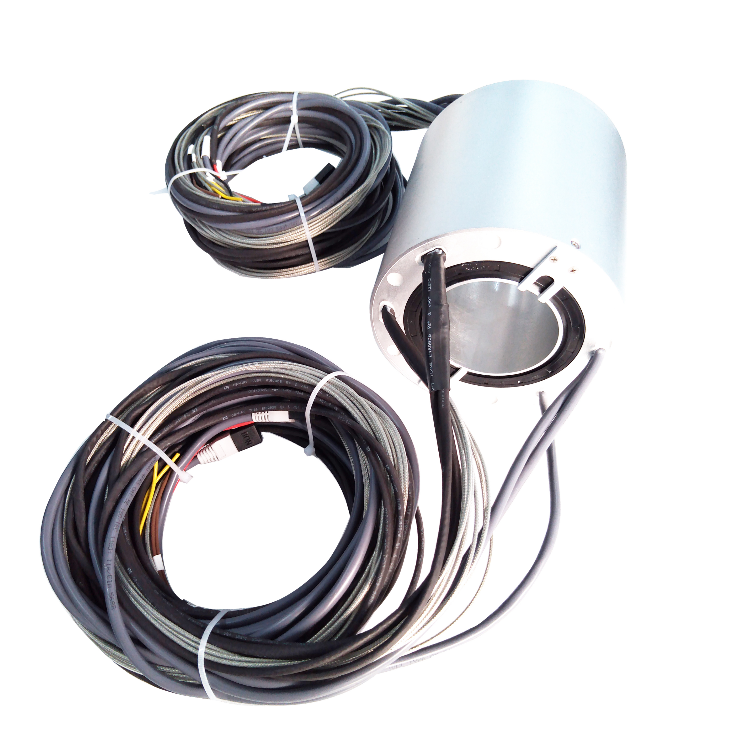

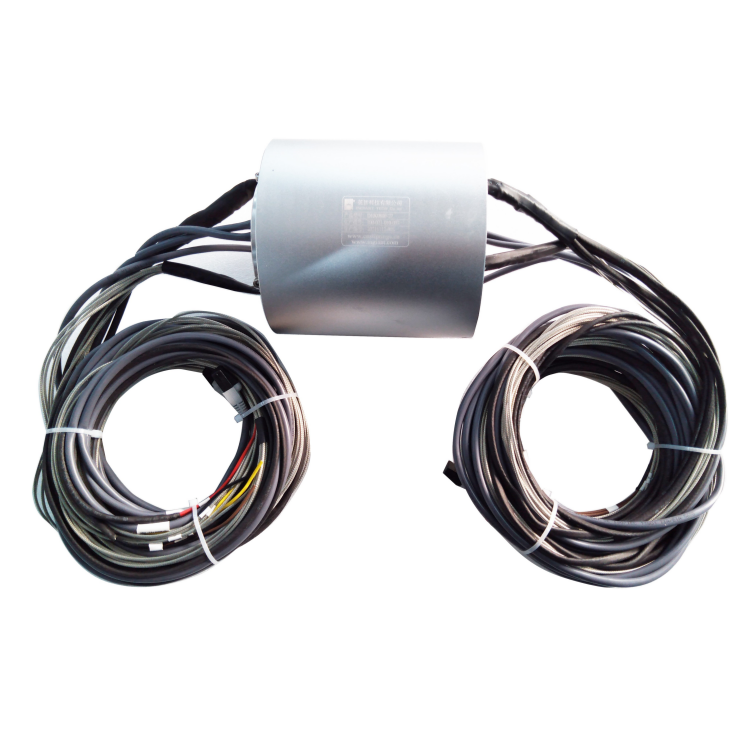

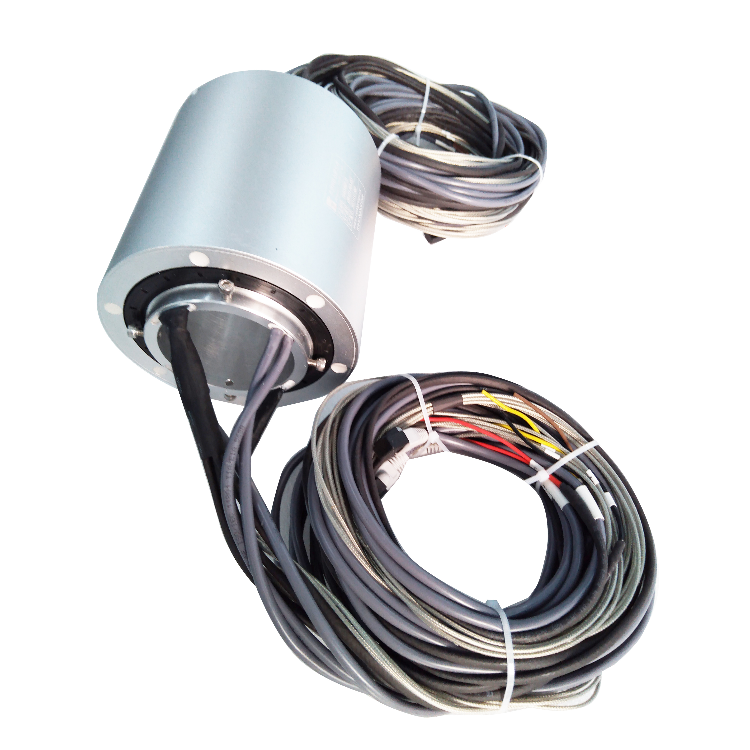

DHK080F-27 Ingiant waterproof slip ring hole diameter 80mm with 2 channels ethernet signal and 9 channels power
Waterproof Slip Ring/water roof Ethernet slip ring
DHK080F-27 Waterproof Slip Ring is IP65~68 water roof Ethernet slip ring with a through hole of 80mm, suitable for rotating applications which requires a through hole ≤ 80mm. Supports 2channels 1000M Ethernet signal and 9 channels power rings (0-20A/ring). Ingiant applies noble precious metal reduced noises and interference between circuits, low friction torque assures long life-span.
Features
- Waterproof slip ring, IP68, mainly applied to ships and oil wells
- Multi-point brush contact material ensure long life
- Anti-corrosion stainless steel housing for better protection
- Integrated structure design for easy installation
- Standard model and customization are available
- Standard model supports 1-96 rings power or signal(0~20A/ring)
Typical applications
- Automatic machines,Cable reels,Robotics, rotary sensors, urgent illumination equipment
- Exhibit/display equipment,Packaging,Rotary table
- Medical, pharmaceutical equipment,Converting machines
- Capping machines,Labeling machines,Filling machine,Machine tools
Waterproof Slip Ring
|
DHK080F-27 |
|||
|
The main parameters |
|||
| Number of circuits | 27 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

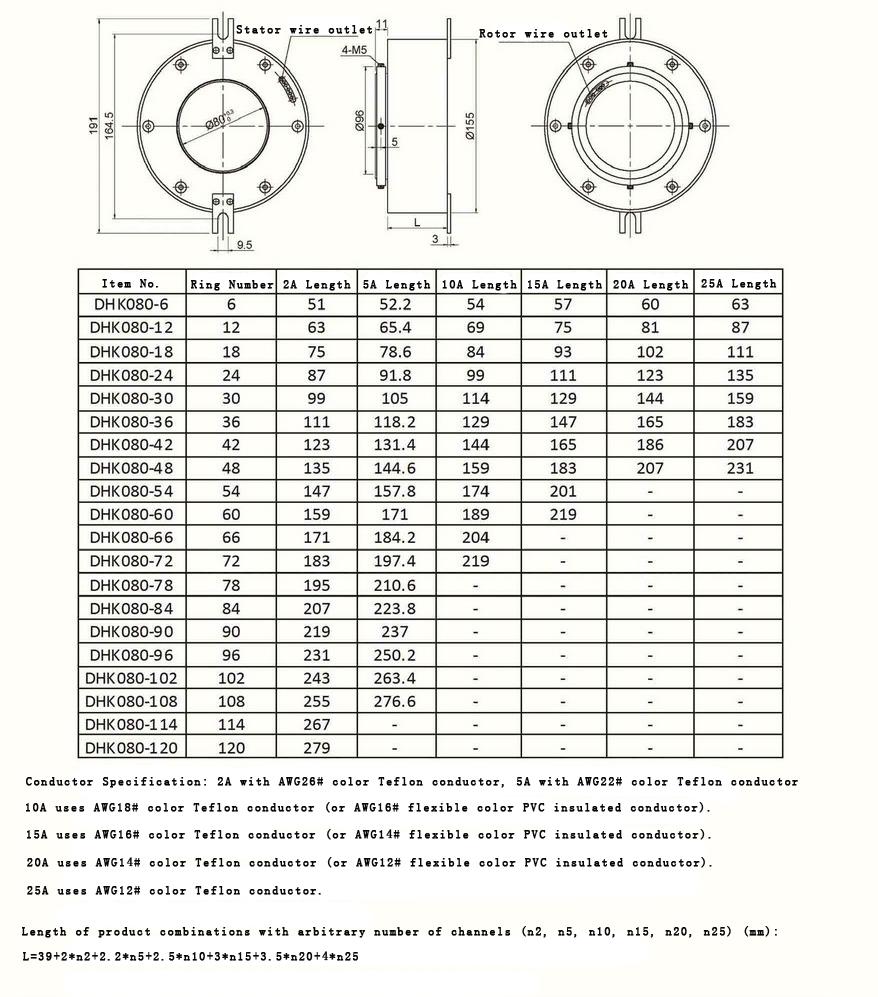

Standard product outline drawing:
Our Advantage
- Product advantage: Specification can be customized, like iner diameter, roatating speed, housing material and color, protection level. Product with small torque, stable operation and excellent transmission performance, more thant 10 million revolutions of quality assurance, longer using life.
- Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
- Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
