DHK086-106 non-standard custom hollow shaft slip ring ID 86mm 106 channels
Hollow shaft slip rings are mainly used to transmit precision signals, weak currents, high currents, and high voltages; they have low torque, low loss and maintenance-free; low electrical noise, and long life.
The scope of use is mainly those places that need to transmit power or data from a fixed position to a rotating position that requires unlimited continuous rotation. Its manufacturing process and principle are similar to other slip rings, and the current is transmitted through the contact between the brush bundle and the contact point. Data, such as signals, is transmitted from a fixed position to a rotating position.
Among the technical parameters of through-hole slip rings, the length is variable and can be customized arbitrarily, while the outer diameter and inner diameter have some standard sizes in the industry. The standard inner diameter sizes of INGIANT mainly include 12.7mm series, 25.4mm series, and 38mm series Wait, the range covers from 12.7mm to 100mm.
|
DHK086-106 |
|||
|
The main parameters |
|||
| Number of circuits | 106 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

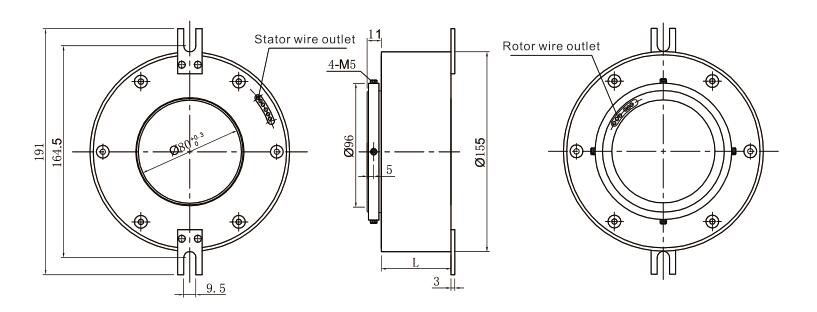

Standard product outline drawing:
Our Advantage
- Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
- Company advantage: Owns complete mechanical processing equipments including a CNC processing center, with strict inspection and testing standards which can meet national GJB standard and quality management system, moreover, Ingiant owns 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), so we have a big strength on R&D and production process. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
- Excellent after-sales and technical support service: Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
