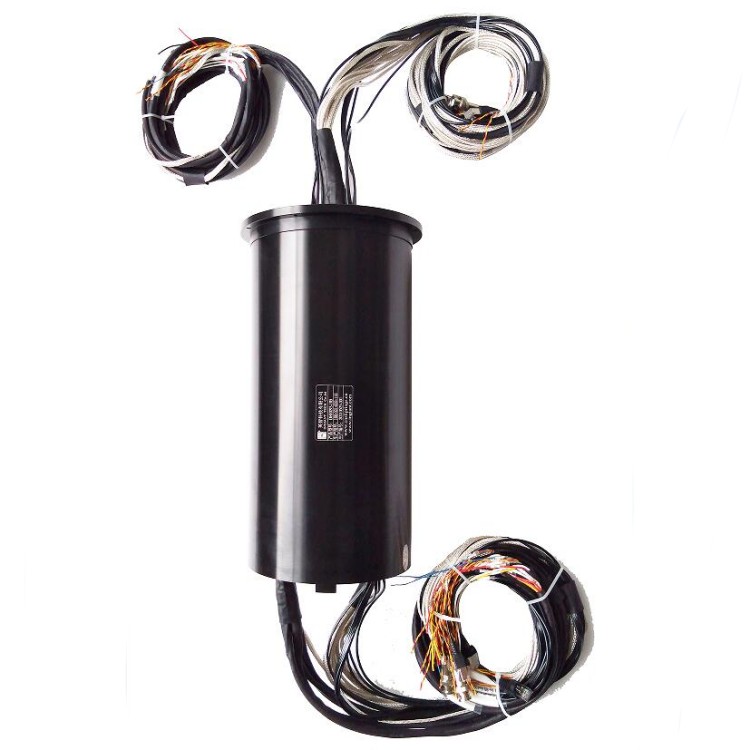

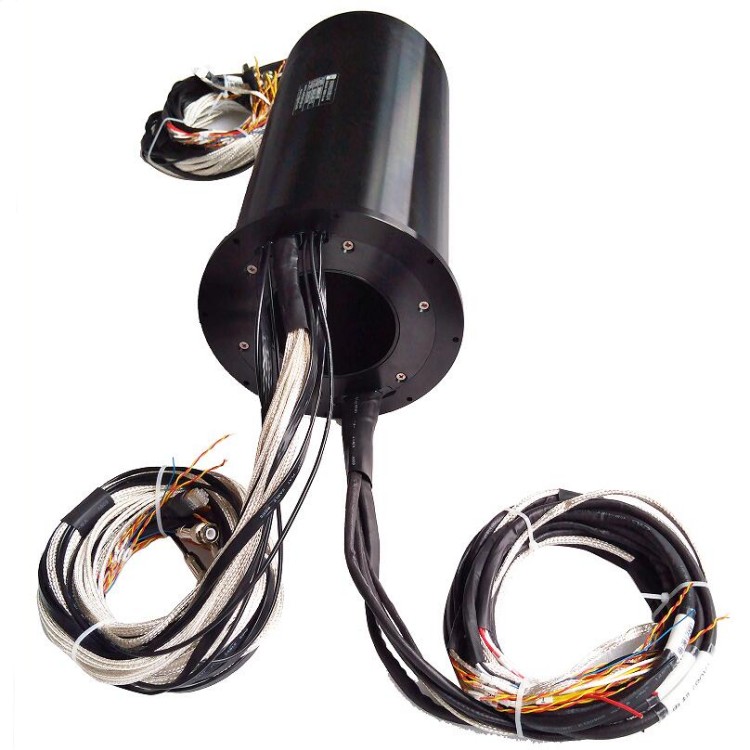

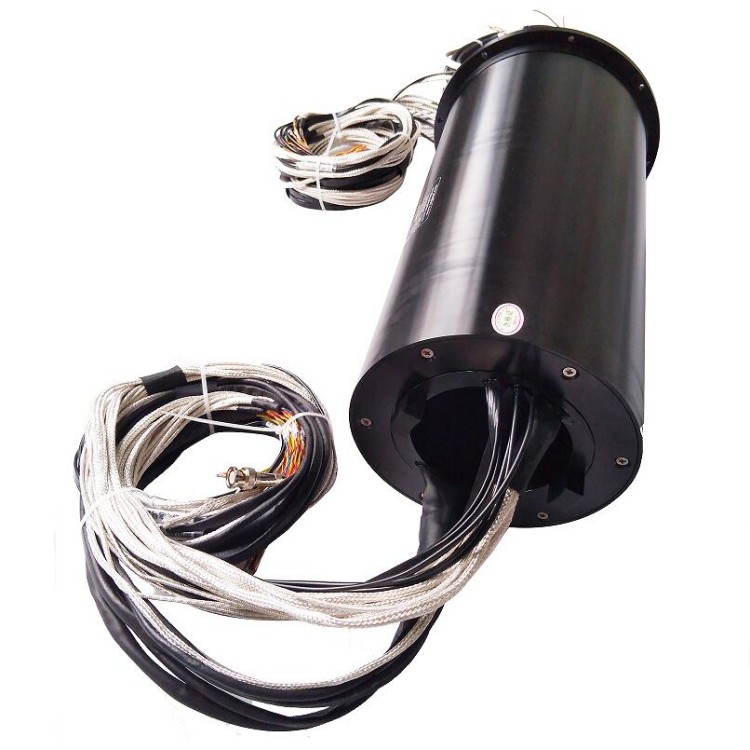

DHK093-105 through hole slip ring hole diameter 93mm 105channels connect the motor and transmit signals
Through hole slip ring also called hollow slip ring with centre hole. it could be applied to any devices where requires to transmit power and signals when need 360° roating.
Features
- Advanced multi-point contact brush technology ensures reliable contact with low friction;
- Metal housing for better protection;
- Integrated structure design, easy installation.
- Hole size from 3mm to 300mm optional;
- Standard current: 0~20A,Standard voltage: 0~600VAC/VDC;
- Circuits No.: 0~300 circuits optional;
- Customizations acceptable for circuits no. , current& voltage based on standard models;
|
DHK093-105 |
|||
|
The main parameters |
|||
| Number of circuits | 105 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements
Standard product outline drawing:
Our Advantage
- Product advantage: Specification can be customized, like iner diameter, roatating speed, housing material and color, protection level. Product with small torque, stable operation and excellent transmission performance, more thant 10 million revolutions of quality assurance, longer using life.
- Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions. We obtained ISO 9001 certification, 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), we also provide both OEM and ODM services for world famous brands and customers,covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, strong R&D strength to meet customers’ different requirment.
- Excellent after-sales and technical support service: 12 months guaranty, customized, accurate and timely service for customers in terms of pre-sales, production, after-sales. Best service for long term cooperation.
