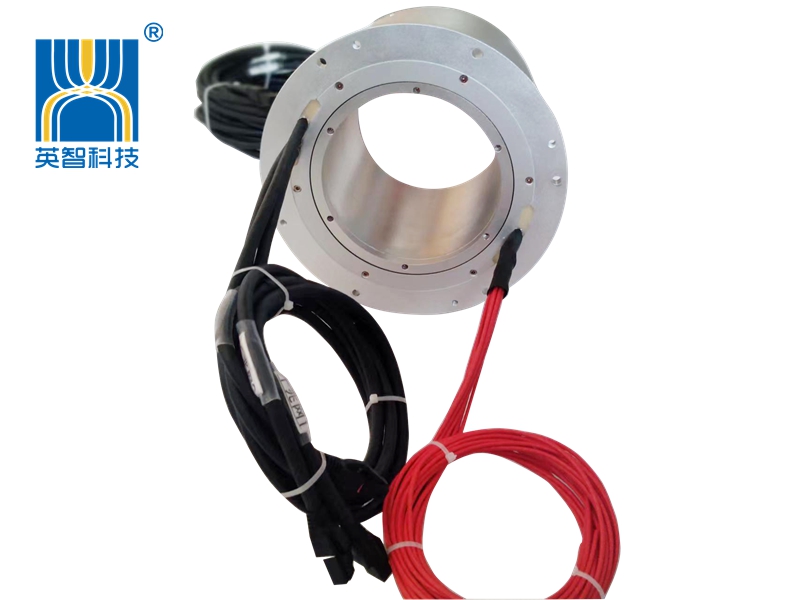

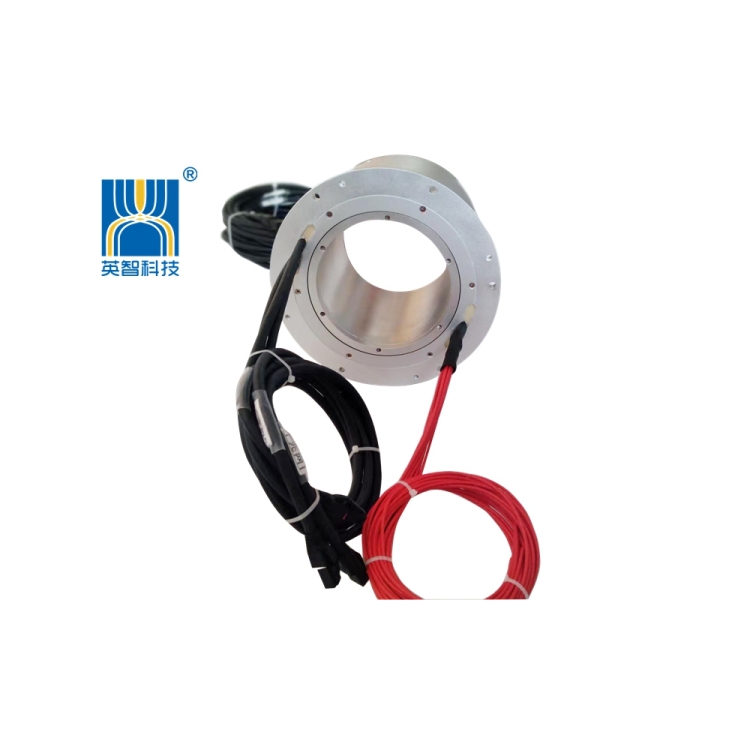

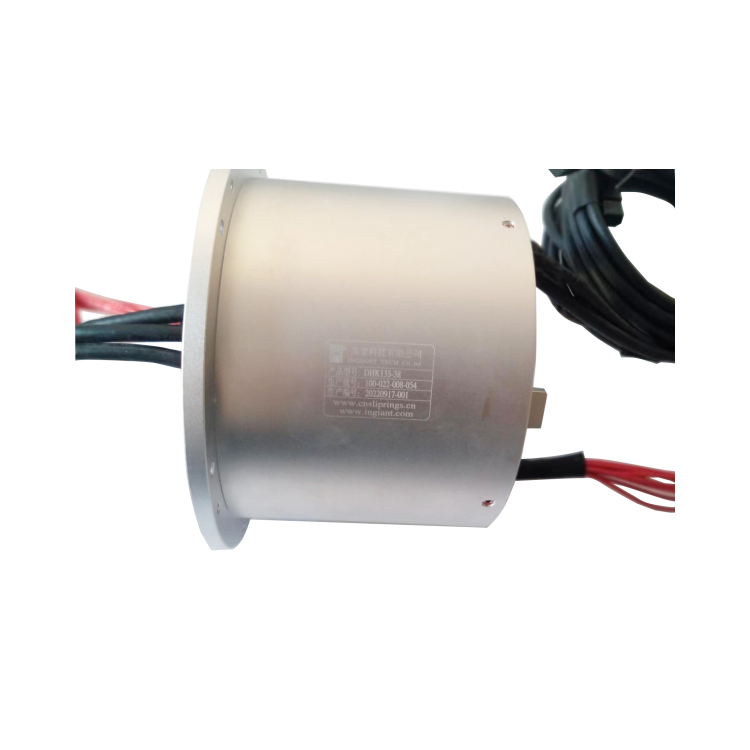

DHK135-38 high quality through hole slip ring ID135mm 38 circuits
Through hole slip rings
This Ø135 mm with 38 circuits.
The through bore can be used to mount the slip ring on a bracket or used for routing hydraulic lines, pneumatic lines. The through bore ranges from 3mm to 500mm, and current ranges from 2A to 1000A, which can meet your requirements of different schemes.
This series features multiple contact point technology, allowing for low contact electric resistance between brushes and ring. This reduces electrical noise and the slip ring gets a longer lifetime. They are for excellent performance in many rigorous applications.
INGIANT can custom engineer slip rings to meet your signal, power, environmental and other application requirements. Get started by sending us your custom configuration
|
DHK135-38 |
|||
|
The main parameters |
|||
| Number of circuits | 38 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage:
- Product advantage: exclusively suitable for the transmission of a wide variety of liquids and media such as gas or compressed air. For the smart clinic of the future, hybrid electrical rotating unions are needed that can combine the transmission of media, electricity and data. It is crucial that the different substances in a multi-channel rotary feedthrough can be sharply separated from each other.
- Company advantage: We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
- Customised advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
