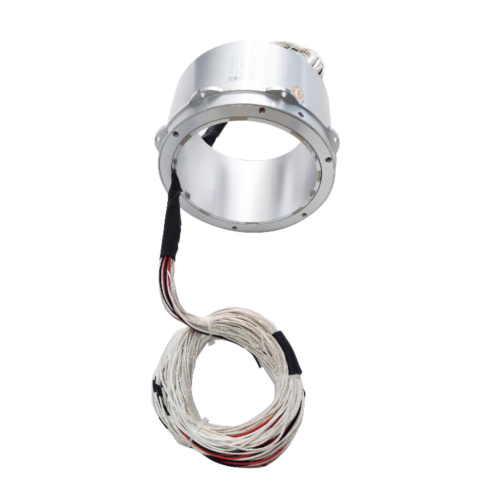

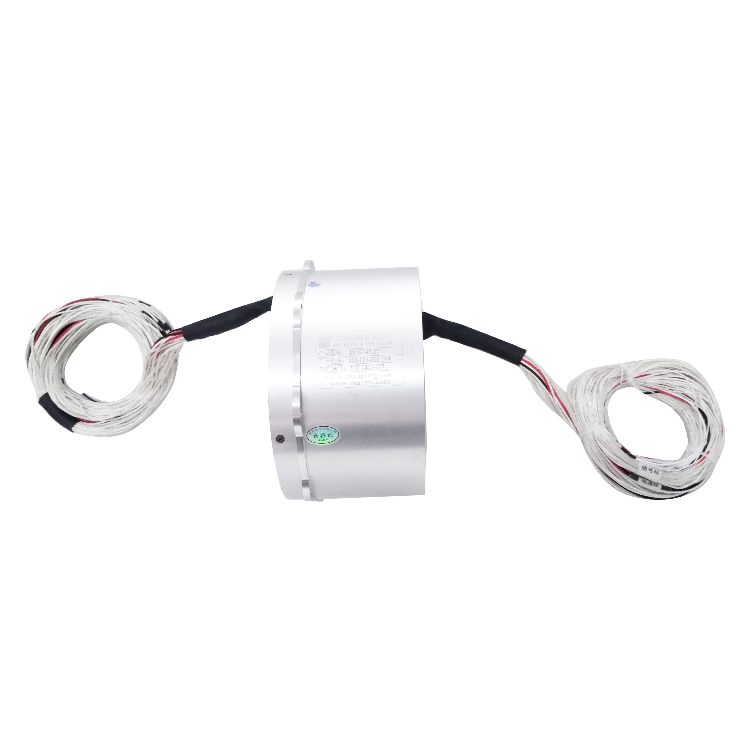

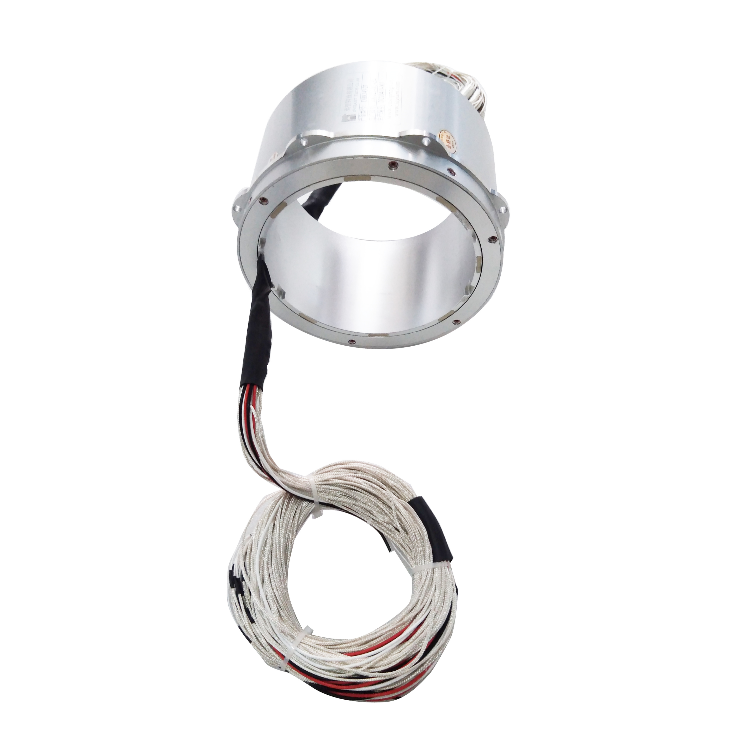

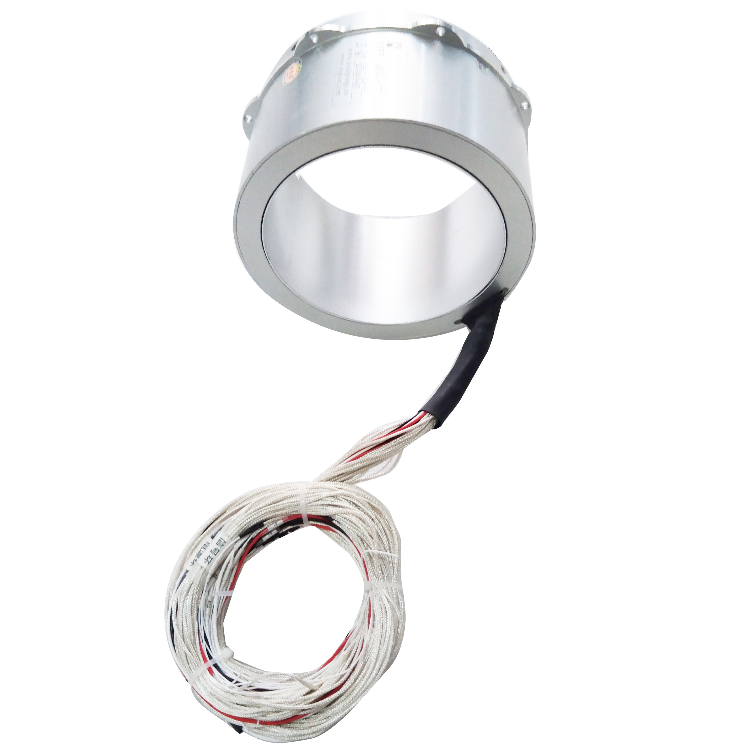

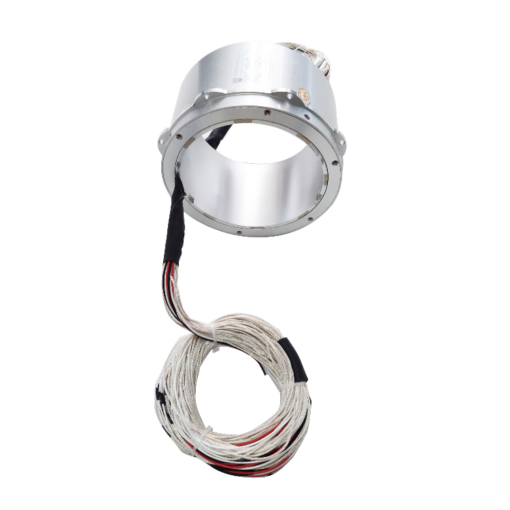

DHK143-32 Ingiant through hole slip rings ID143mm with 6 power rings(10A/ring) and 26 signal rings(2A/ring)
Through hole slip ring – DHK143 series
Customizable, inner diameter 3-500mm, current 2-1000A
DHK143-32 through hole slip ring with through hole 143mm, OD180mm, suitable for rotating application which requires a through hole ≤143mm. Supports 6 power rings(10A/ring) and 26 signal rings(2A/ring).Through hole slip rings fully meet the continuous transmission of power, signals, weak current, high current and high voltage under 360 degree unlimited rotation. Low torque, low electrical noise, low loss and easy maintenance are the main features.
Features
- Power, data and signals can be combined in one rotating system without interference
- Temperature control signals and thermocouple signals can be combined.
- Advanced multi-point contact brush technology ensures reliable contact with low friction
- Metal housing provides better protection
- Integrated structural design, easy installation
- Standard current options are 0~20A, standard voltage options are 0~600VAC/VDC
Typical applications: medical rotary CNC worktables, CNC machining centers, wire reels, packaging machinery, wind turbines, automation equipment, automatic testing equipment, automated robots, robotic arms, etc.
|
DHK143-32 |
|||
|
The main parameters |
|||
| Number of circuits | 32 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

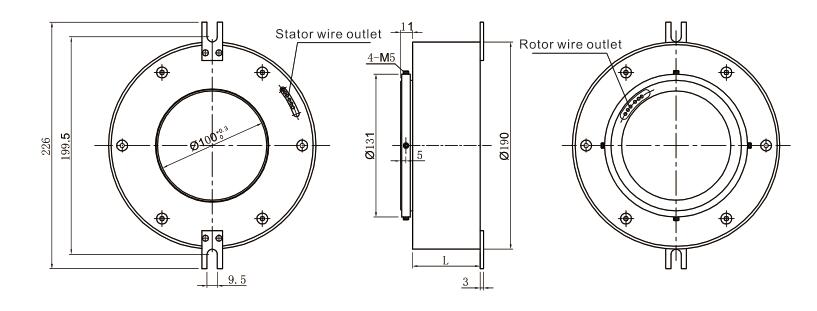

Standard product outline drawing:
Our Advantage
- Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
- Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
- Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.
