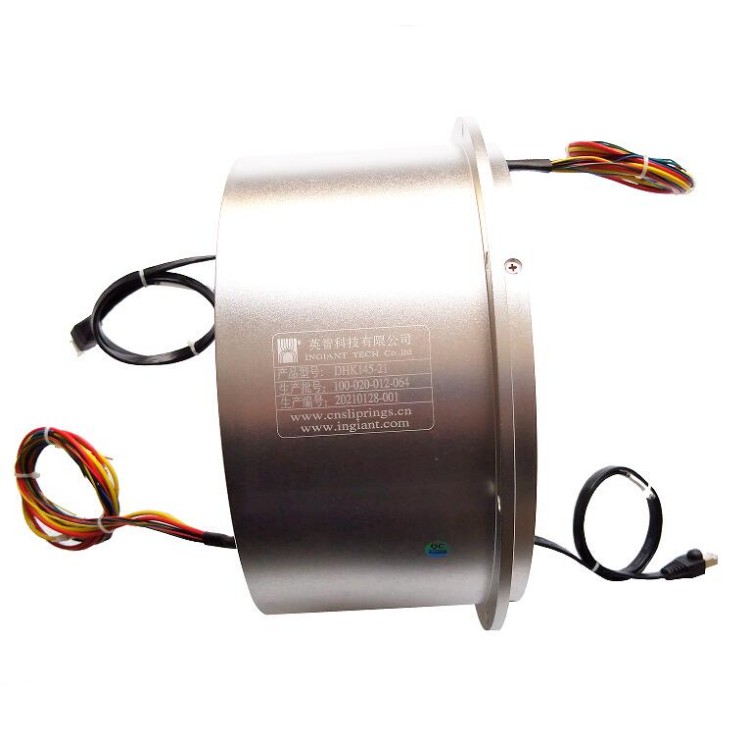

DHK145-21 large diameter low temp application through bore slip ring 21channels with gigabit network
Through Bore Slip Rings are used in applications where the customer requires the bore space for some other capabilities (cooling or air media; optical or RF channels, etc.). The Slip Ring can be designed to accommodate a wide variety of bore sizes
Through Bore Slip Rings are typically used in harsh environments such as high altitudes, which involve extreme cold temperatures. Ingiant has many designs suitable for high altitudes without performance loss.
Through Bore Slip Rings can be drum or pancake-style and are designed specifically according to customer requirements. The through bore is driven by the customer’s needs but the slip ring itself still operates like any other slip ring without a bore. In some applications, the bore can be used to integrate a fiber optic rotary joint (FORJ). This integration can be done by Ingiant or by the customer, in which case Ingiant provides the interface features.
|
DHK145-21 |
|||
|
The main paremeters |
|||
| Number of circuits | 21 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements
Standard product outline drawing:
