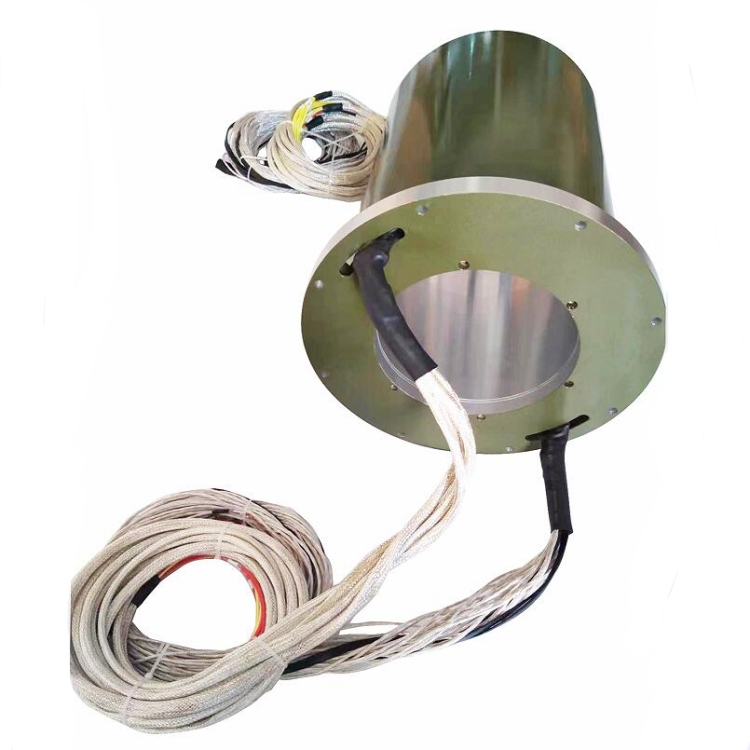

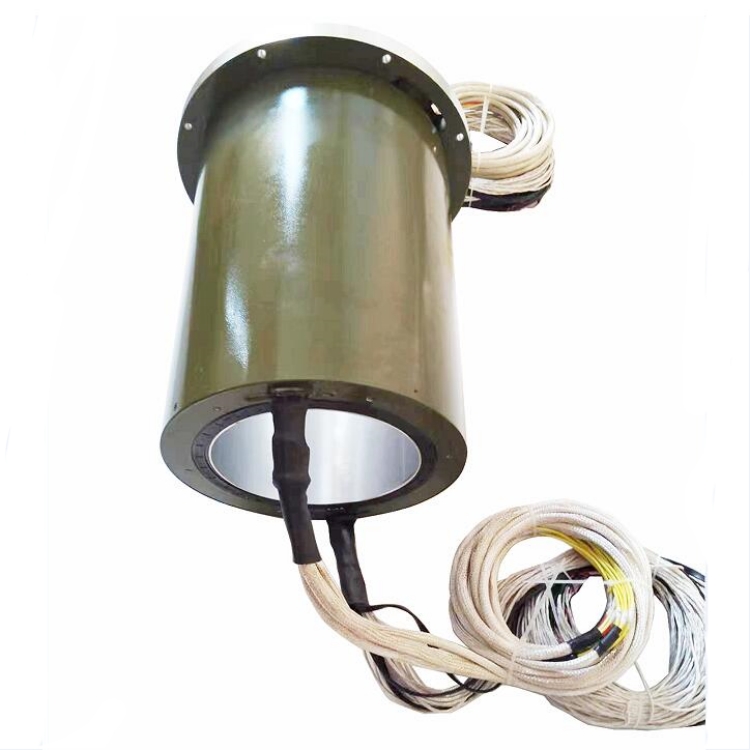

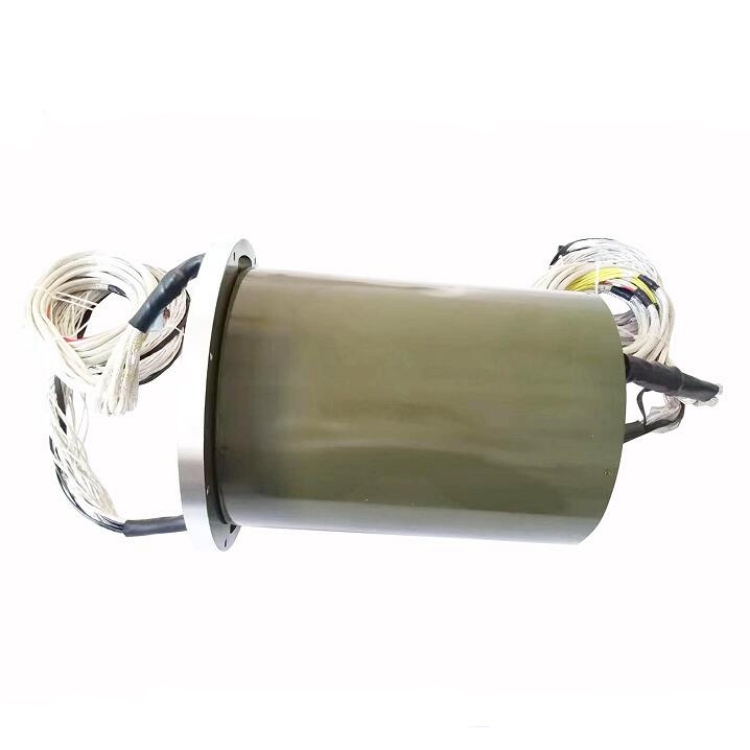

DHK170-85 DHK series through hole slip ring ID170mm 85 channels
Through Hole Slip Rings – DHK Series
Available for custom, standard ID 12-400 mm, OD 33-632 mm
INGIANT technology supply through hole/bore slip rings are widely used for rotating solutions. applications as medical rotary CNC worktable, CNC machining center, wire reel, packaging machinery, wind turbine, etc. In the future, through hole/bore slip rings will be widely used in new areas such as automation equipment, automatic detection equipment, automated robots, and robotic arms.
Customized products account for almost 60% although INGIANT have 200+ standard moulds as an original slip rings manufacturer. To create your most suitable through hole slip ring connector, please feel free to contact us.
|
DHK170-85 |
|||
|
The main parameters |
|||
| Number of circuits | 85 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
- Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
- Customized advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
