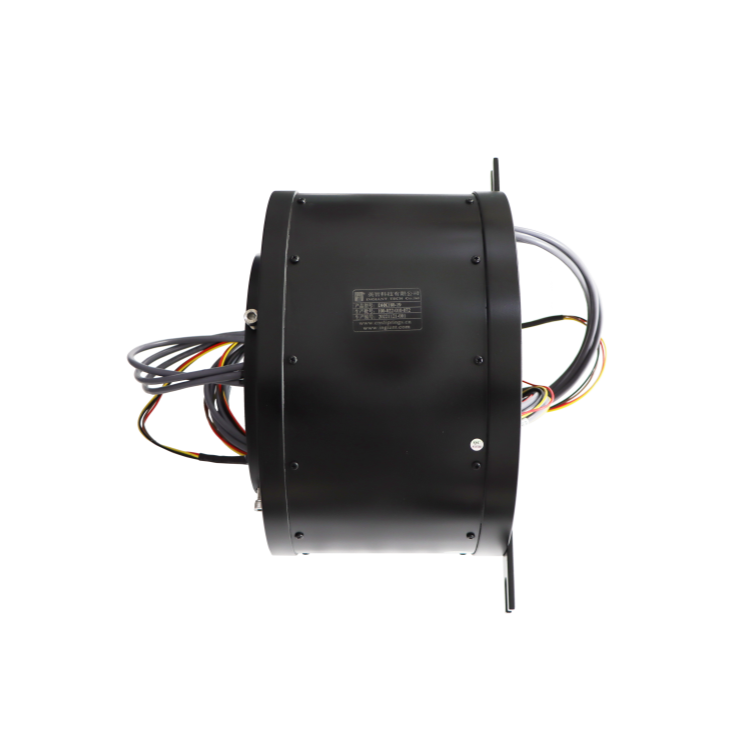

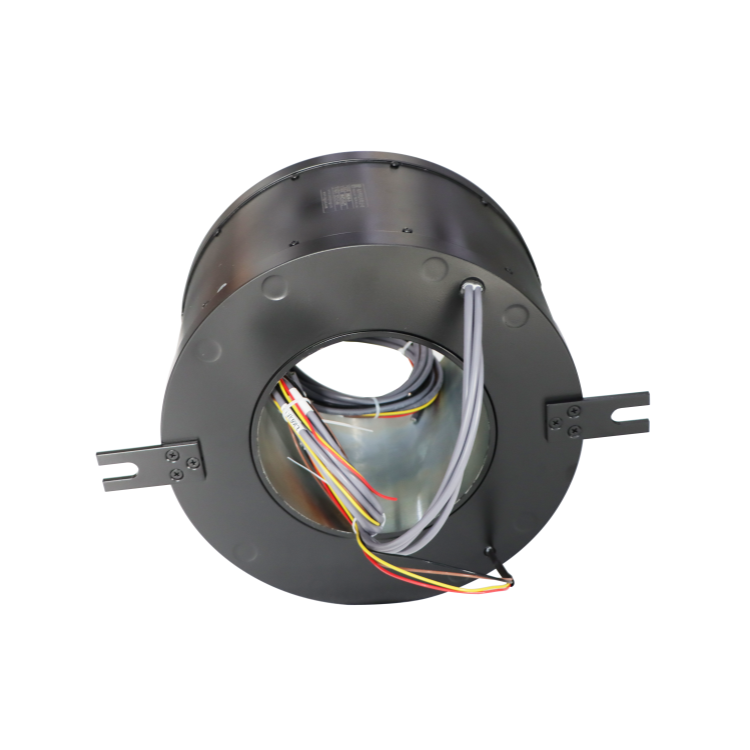

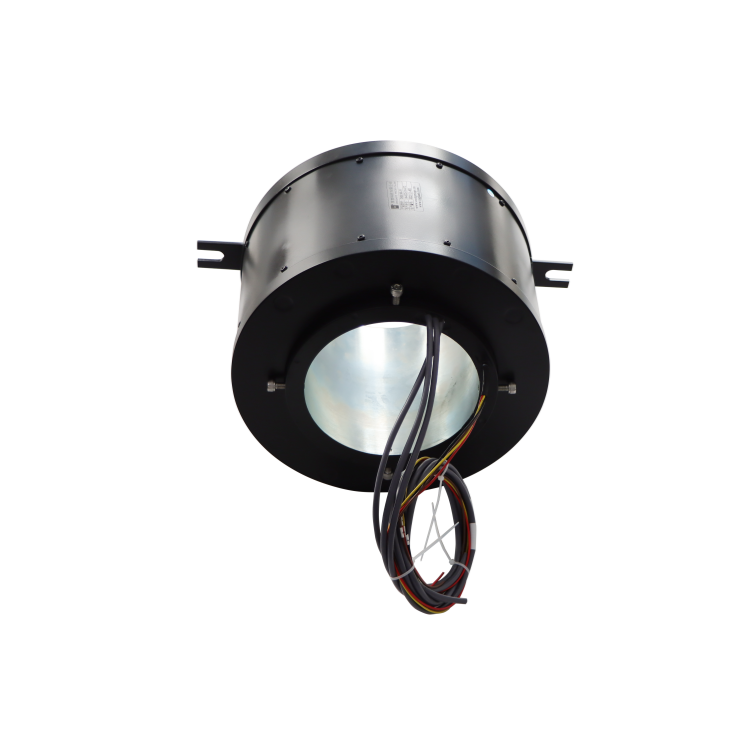

DHK180-19 high performance through hole slip ring diameter 180mm, 19 channels
Through hole slip ring hole diameter 180mm, this slip ring provides a space-saving solution without compromising on functionality. It boasts 19 channels, allowing for the transmission of a variety of signals simultaneously. This makes it suitable for applications that require the transfer of multiple signals, such as video, audio, data, and power line.
Ingiant through hole slip ring offers a wide range of customization options to meet specific application requirements. It can be tailored to accommodate different voltage and current ratings, making it suitable for a wide range of power and signal requirements. The slip ring can also be configured with various connector types, such as Ethernet, USB, or RF connectors, to facilitate seamless integration into different systems.
|
DHK180-19 |
|||
|
The main parameters |
|||
| Number of circuits | 19 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

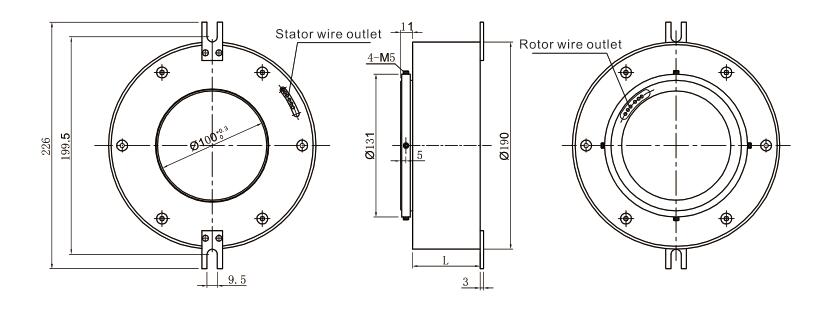

Standard product outline drawing:
Our Advantage
- Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
- Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
- Customized advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
