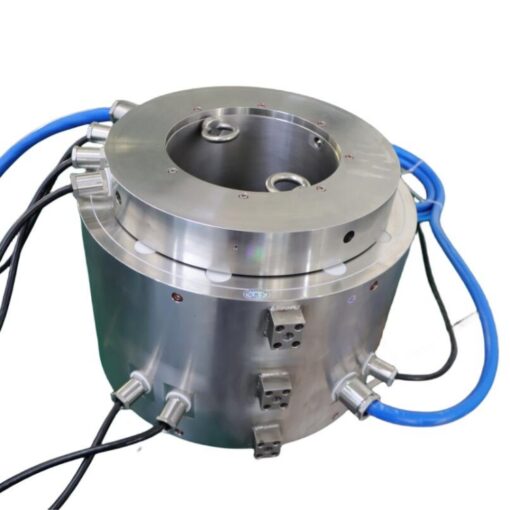

DHK195F-20 Non-standard customized waterproof and dustproof conductive slip ring aperture 195mm 20 channels
Waterproof and dustproof conductive slip rings are a type of through-hole slip rings. Slip rings are specially designed with a center hole for mounting hydraulic or pneumatic drive shafts. Through hole diameter range is 12, 25, 38, 50, 70, 100 to 500mm. Optional, different electrical channel combinations are available, aluminum alloy shell; adopts domestic leading cluster brush type precious metal multi-point
contact, fully ensuring reliable contact under extremely low friction; high sealing levels are optional to adapt to different environments, up to IP66.
Waterproof and dustproof via-hole series conductive slip ring, supports signal (2A), 10A, magnification *10A, voltage 600VAC/VDC. Microvoltage, high frequency, EMF, thermocouples, computer signals, strain gauges, etc. for any rotating body. Current, Inter Bus, Can-Bus, RS422, RS485, PLC control, digital/analog video, digital audio, Gigabit Ethernet, weight sensor signal and power connection.
INGIANT precision conductive slip ring has rigorous design, stable performance and leading technology .
|
DHK195F-20 |
|||
|
The main parameters |
|||
| Number of circuits | 20 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our Advantage
- Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
- Company advantage: Owns complete mechanical processing equipments including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, moreover, Ingiant owns 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), so we have a big strength on R&D and production process. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
- Excellent after-sales and technical support service: Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
