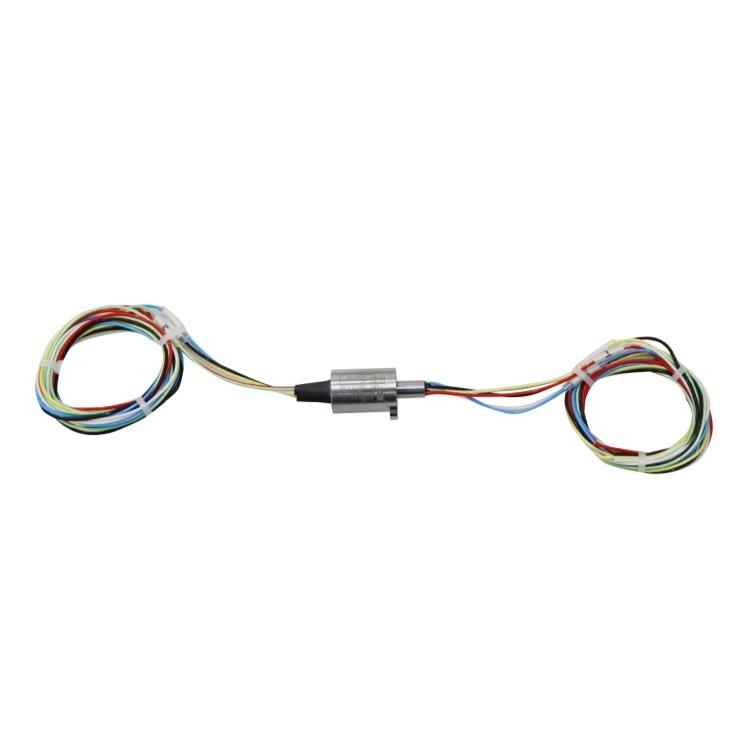

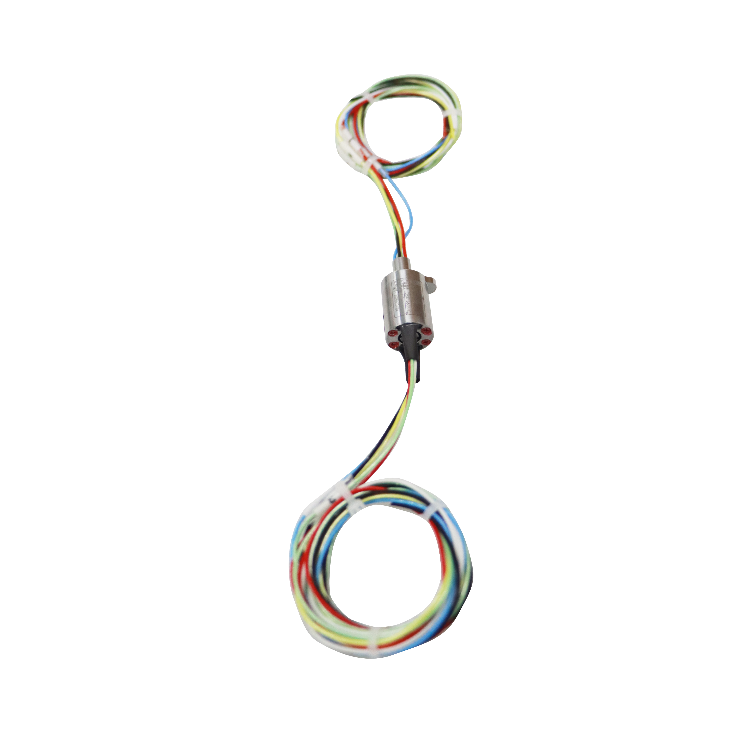

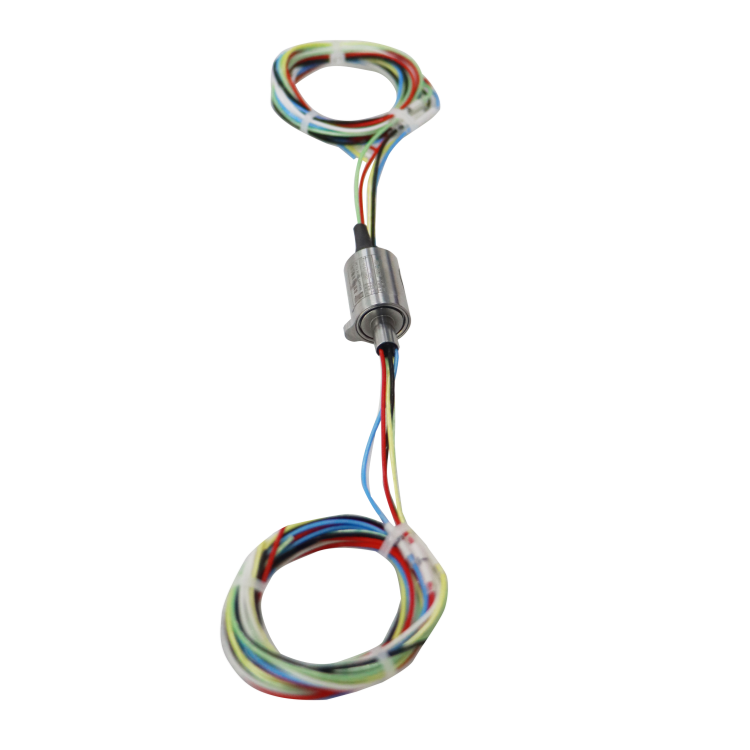

DHS012-6-3A-002 standard capsulated miniature slip rings with outer diameter 12mm 3A for power- and signal transmission
Capsulated Miniature Slip Rings for Power- and Signal Transmission
High-quality capsulated miniature slip rings for combined power and signal transmission for use in space-critical applications. Mechanical and electrical specifications can be adapted according to individual requirements.
Space-saving- allL-rounder-Capsulated Miniature Slip Rings
The perfect slip ring solutions for tight spaces and compact unit dimensions
Feature:
- Transmitting analog and data signals
- Compatible with data bus protocol
- Long life and maintenance-free
- Easy to install
- 360° continuous rotation transmits power and data signals
|
DHS012-6-3A-002 |
|||
|
The main parameters |
|||
| Number of circuits | 12 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

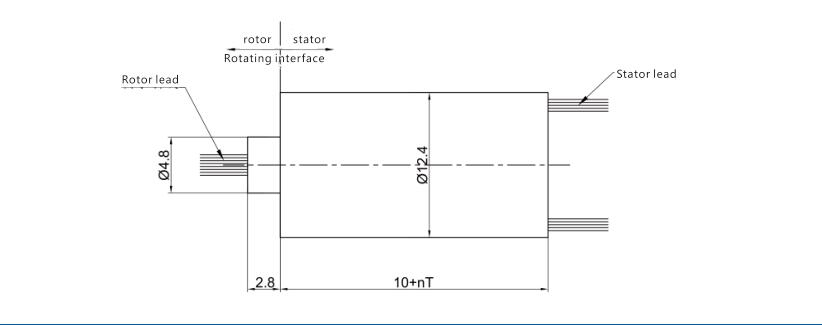

Product drawing:
Our advantage:
- Product advantage: Specification can be customized, like iner diameter, roatating speed, housing material and color, protection level. Product with small torque, stable operation and excellent transmission performance, more thant 10 million revolutions of quality assurance, longer using life.
- Company advantage: After years of experience accumulation, Ingiant has a database of more than 10,000 slip ring scheme drawings, and has a very experienced technical team who use their technology and knowledge to provide global customers with perfect solutions.
- Excellent after-sales and technical support service: 12 months guaranty, customized, accurate and timely service for customers in terms of pre-sales, production, after-sales. Best service for long term cooperation.
