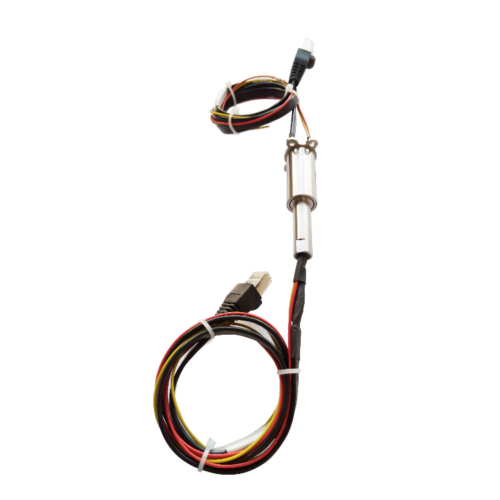

DHS018-11 Ingiant Gigabit Ethernet slip ring outer diameter 18mm with 1 channel Gigabit Ethernet signal and 2 channels power

Ethernet Slip Rings – DHS Series

Available for Custom, Run 100/1000M Ethernet Signal

DHS018-11 series with out diameter 18 mm, can transmit 1channels Gigabit Ethernet signal combined with 2 power rings(2~20A), adopt fiber brushes material with the advantage of reliable transmitting, no packet loss, no string code, low return loss, low insertion loss. Available for custom design as per actual demand.

Features

Multi-point brush contact material ensure long life
Stable transmit 1 channels Gigabit Ethernet signal
Integrated structure design for easy installation
Standard model and customization are available
IP 51 (IP54-IP68 can be customized)
With RJ45 male connectors, RJ45 female optional
Ethernet cable connection
With advantages of reliable transmitting, no packet loss, no string code, low return loss, low insertion loss, etc.
Free maintenance

Ethernet slip ring suitable for 10/100/1000 Base T transmission and usually equipped with RJ45 connector assemblies for plug and play. M12, CAT5E, or CAT6 cables are available as options. Gigabit ethernet slip rings can be used in wind turbines, industrial robots, and radar antennae which need rotary platforms.

Category: Hybrid Slip Rings Ethernet+Electric Tags: ethernet slip ring, gigabit Ethernet slip ring

Description

Ethernet Slip Rings – DHS Series
Available for Custom, Run 100/1000M Ethernet Signal

DHS018-11
The main parameters
Number of circuits	11	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

Standard product outline drawing:

Our advantage:

Product advantage: High-quality encapsulated miniature slip rings for combined power and signal transmission for use in space-critical applications. Mechanical and electrical specifications can be adapted according to individual requirements.
Company advantage: We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.

DHS018-11 Ingiant Gigabit Ethernet slip ring outer diameter 18mm with 1 channel Gigabit Ethernet signal and 2 channels power

Ethernet Slip Rings – DHS Series Available for Custom, Run 100/1000M Ethernet Signal
