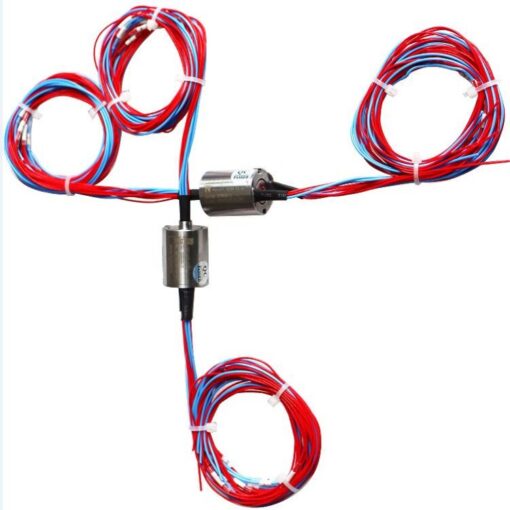

DHS020-13 enclosed miniature slip rings for drone

Wherever space is limited or critical, our encapsulated miniature slip ring bodies can be used. The compact design can transmit signals (Ethernet, USB, RS, CANbus, video signals, sensor signals, etc.) and/or power in combination.

The housing is available with or without flange, and in plastic or aluminium. The encapsulated miniature slip rings use the best fiber brush technology and precious metal multi-contact. This offers you very low noise for high-end bus transmissions, low contact pressure for long life time and this makes the slip rings maintenance free.

We offer standard & modular designs and fully customized products to meet the specific needs of customers in various industries. If you have special requirements, please feel free to contact us! We will design the perfect slip ring for your application.

Category: Capsulated Slip Rings Tags: miniature slip ring, solid shaft slip ring

Description

DHS020-13
The main parameters
Number of circuits	13	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

Standard product outline drawing:

Our advantage:

Product advantage: To ensure only the highest quality products, We’ll perform the tests in-house laboratory, High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance.
Company advantage: 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent. Provide OEM and ODM service, over 20 years of industry-related industry experience.
Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.

DHS020-13 enclosed miniature slip rings for drone
