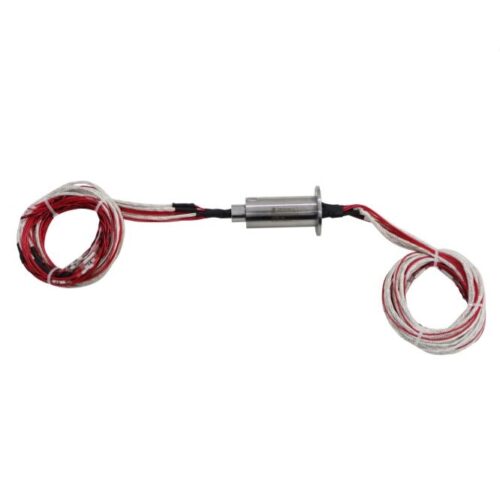

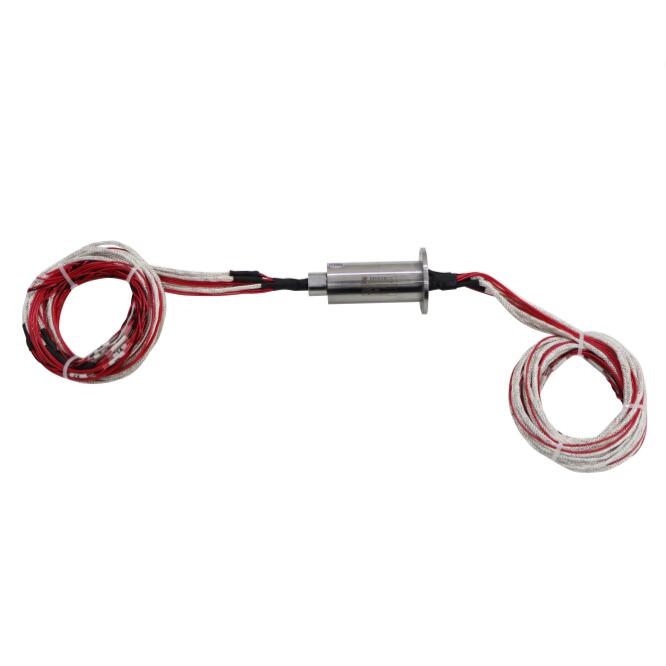

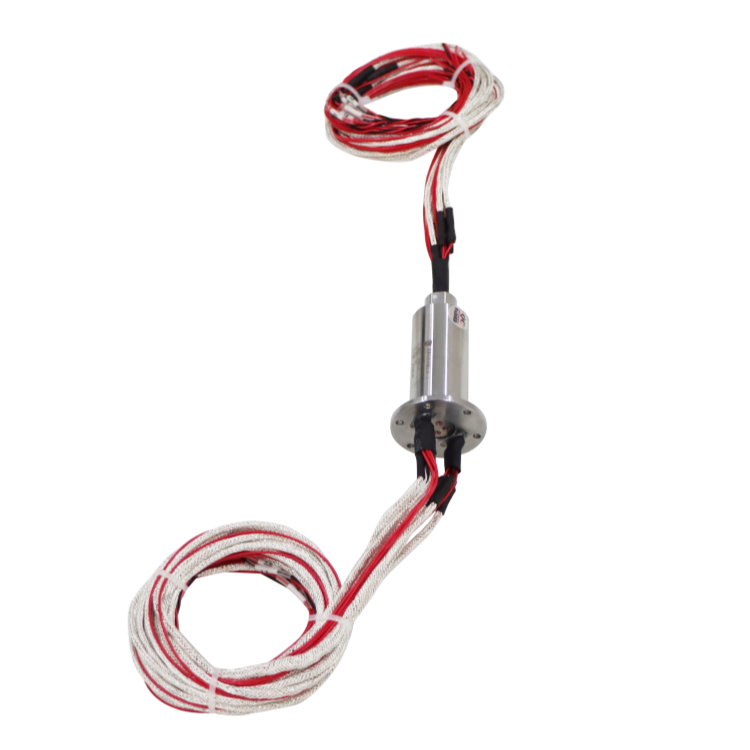

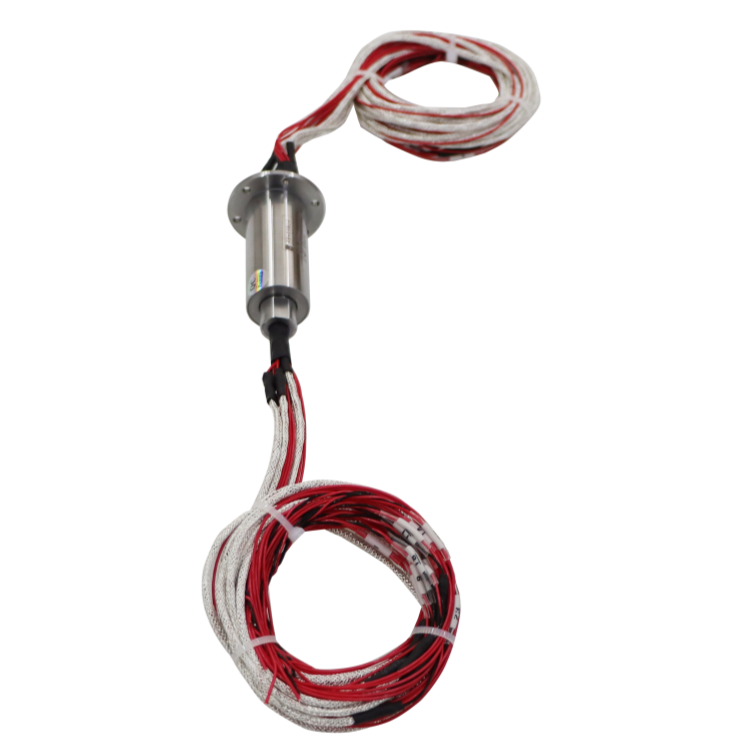

DHS021-18 Capsulated USB slip rings slip rings for USB and electrical power/signal transmission

Capsulated USB slip rings with one or two USB feedthroughs

Hybrid slip rings for USB and electrical power/signal transmission. Transmission of USB1.0, USB2.0 and USB3.0, USB3.1, USB3.2 with transmission rates up to 20GBit/s. Encapsulated or hollow shaft housing for customised implementation. Standardised and modularised design.

Selection of USB slip rings

We can offer you USB slip rings with one to 36 passages. Each USB slip ring complies with the USB 2.0 class. However, they are also downward compatible. If you have applications that need to use USB 3.0, please contact us. In this case, too, we will find a suitable solution for you.

Our USB slip rings can transmit both signals and power feedthroughs up to 20 amps. The maximum working voltage is a full 440 volts for both direct and alternating current. Voltage peaks can be intercepted up to 500 volts at 50 hertz. The electrical noise is a maximum of 10 milliohms. With an insulation resistance of 1000 megohms at 500 volts DC, each of our USB slip rings is also well equipped for unexpectedly high loads.

With up to 600 revolutions per minute, the USB slip ring leaves nothing to be desired in terms of dynamic load. A maximum of two USB feedthroughs can be integrated. Each USB slip ring can be loaded from -30 °C to + 80 °C. If your requirements lie outside this temperature range, please let us know. We will find the ideal solution for this as well.
