DHS028-30 HD-SDI slip ring Loss-free transmission diameter 28mm 30channels
HD-SDI Slip Ring Selection
One HD-SDI channel is available per slip ring. More is not necessary, as only one camera is ever controlled with one ring. Furthermore, the HD-SDI slip rings have at least two and up to 48 rings and thus passages. This makes extremely convenient camera control possible. With a working voltage of up to 440 volts, you can also couple the HD-SDI slip rings to power applications. The electrical noise does not exceed 10 milliohms.
The insulation resistance is 1000 megohms at 500 volts DC. The rotation speed is limited to 50 rotations per minute. More is not necessary for fast camera movement. Unless otherwise requested, we deliver the HD-SDI slip rings with a cable length of 300 mm on both sides. Longer cables are always possible on request.
The HD-SDI slip rings guarantee perfect operation in the temperature range from -30° C to +80° C. This means they are fully resilient even under tough operating conditions.
Use of the HD-SDI slip rings
HD SDI slip rings have their domain in professional image transmission technology. They are therefore suitable for all areas where first-class recordings from remote cameras are required. This precisely defined working range makes a high rotation speed unnecessary. HD SDI slip rings are therefore used in the following applications:
- Remote-controlled cameras in film and television production
- Drone technology
- Object protection
- Research
- Damage analysis in sewers
- Nature observation
- Astronomy
|

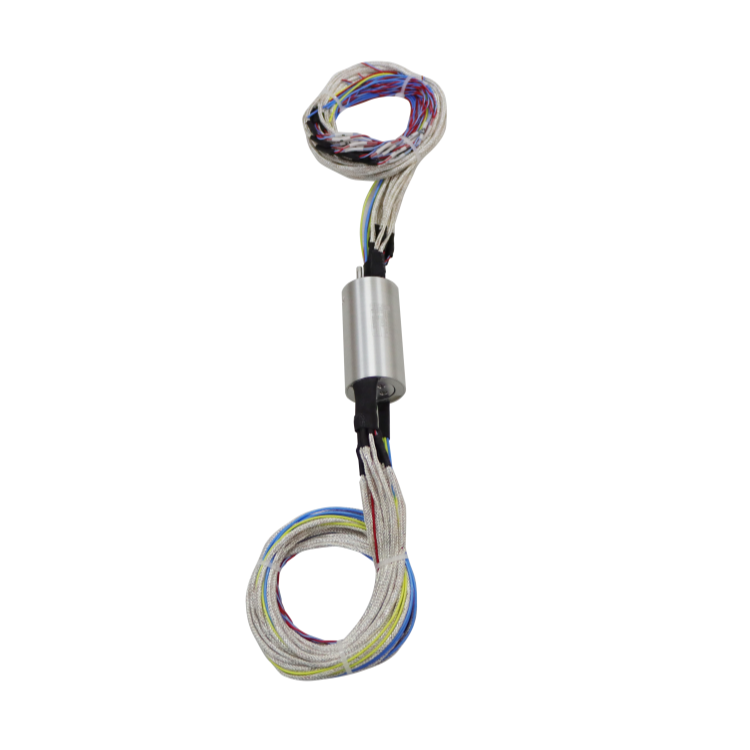

DHS028-30 |
|||
|
The main parameters |
|||
| Number of circuits | 30 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Product drawing:
Our advantage:
- Product advantage: High-quality encapsulated miniature slip rings for combined power and signal transmission for use in space-critical applications. Mechanical and electrical specifications can be adapted according to individual requirements.
- Company advantage: Experienced technical team, perfect manufacturing, quality control and management system, adhering to the value of quality and service first, to provide products and technical services to meet user needs. And constantly increase the investment in the research and development of new slip ring technology, expand the new application field of the slip ring industry. To provide users with more comprehensive product and technical support.
- Customized advantage: Can provide all kinds of industries of non-standard customized slip ring design, can customize different needs of the slip ring, integrated current, signal, gas and liquid as one integrated slip ring. To provide global customers with wind power generation, servo control system, work turntable, robot manipulator, construction machinery, CCYV video surveillance, medical equipment, radar military solutions
