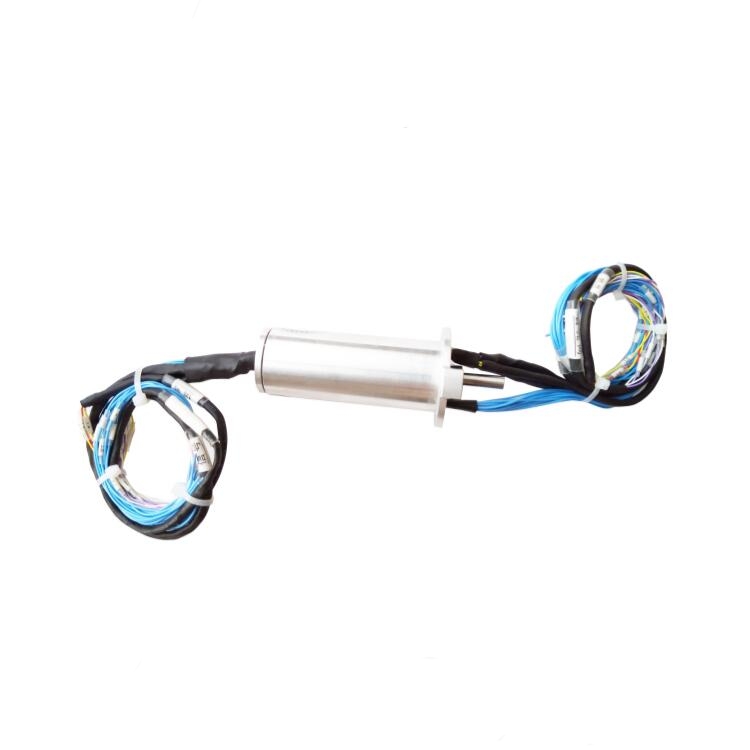

DHS032-29 Ethernet slip ring solid shaft with flange diameter 32mm

Ethernet slip ring is specially designed for 250Mhz frequency signals and is used to transmit 100M/1000M Ethernet signals. It can mix electrical power channels and signal channels, and can transmit multi-channel medium and low-frequency signals and currents at the same time. It has stable transmission, no packet loss, An electrical rotary joint with the advantages of no cross-coding, low return loss, and low insertion loss.

Features:

Can mix electrical power channels and signal channels, and can transmit multi-channel medium and low frequency signals and currents at the same time
The transmission signal is stable, no packet loss, no cross-coding, small return loss, and small insertion loss.
Extra long life, maintenance-free
360° continuous rotation to transmit power or data signals
Compatible with Data Master Protocol
Provides RJ45 connector for direct plugging and unplugging;
Can work with current channels or gas-liquid rotary joints;
Mainly capable of transmitting Ethernet (10M / 100M / 1000M BaseT);

Category: Hybrid Slip Rings Ethernet+Electric Tags: ethernet slip ring, Hybrid Slip Ring, Hybrid Slip Rings Ethernet+Electric, solid shaft slip ring

Description

DHS032-29
The main parameters
Number of circuits	29	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

Product drawing:

Our advantage:

Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
Company advantage: Owns complete mechanical processing equipments including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system, moreover, Ingiant owns 27 kinds of technical patents of slip rings and rotary joints(include 26 untility model patents, 1 invention patent), so we have a big strength on R&D and production process. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.

DHS032-29 Ethernet slip ring solid shaft with flange diameter 32mm
