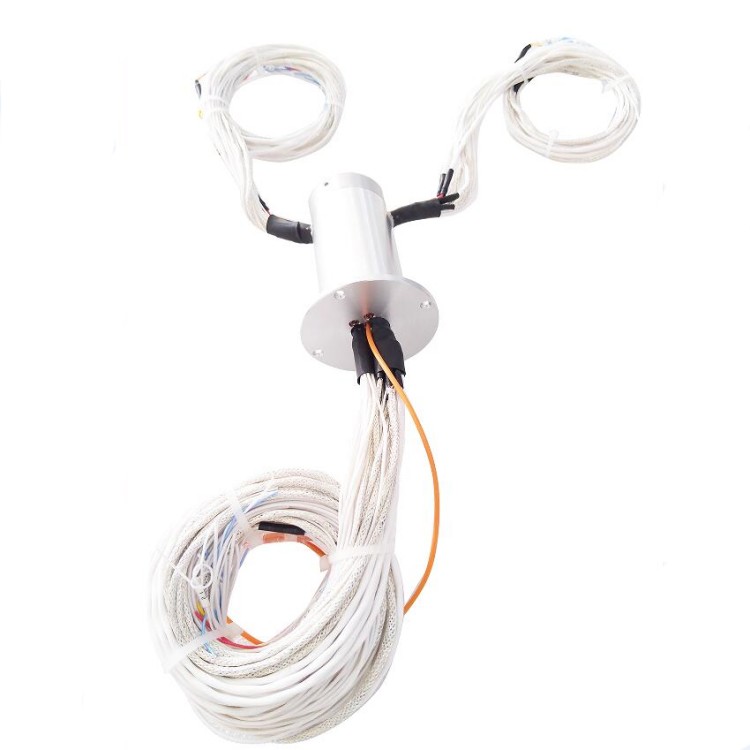

DHS037-48-1F hybrid slip ring in research can be found in almost all areas of industry
The small and large slip rings can be found in almost all areas of industry. But the versatile components are also used in research, for example in laboratories, in medical technology or in the pharmaceutical industry.
Smaller laboratory sections in clinics have already been fully automated with the help of robotics. In the future, this automation will continue to increase. At the same time, the analyzed laboratory values, for example from blood and urine tests, must be stored in the electronic patient file in real time if possible. This speeds up diagnoses and success checks of previous treatment decisions enormously. To achieve this, centrifuges and other devices for fluid testing must be enabled to reliably transmit the determined laboratory values via the network.
And whenever fluids need to be transmitted between two rotating components, or a rotating component and a stationary component, in addition to signals and power, rotating unions come into play.
|
DHS037-48-1F |
|||
|
The main parameters |
|||
| Number of circuits | 48 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirement
Standard product outline drawing:
Our advantage:
- Product advantage: exclusively suitable for the transmission of a wide variety of liquids and media such as gas or compressed air. For the smart clinic of the future, hybrid electrical rotating unions are needed that can combine the transmission of media, electricity and data. It is crucial that the different substances in a multi-channel rotary feedthrough can be sharply separated from each other.
- Company advantage: We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
- Customised advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
Related products
hybrid slip ring

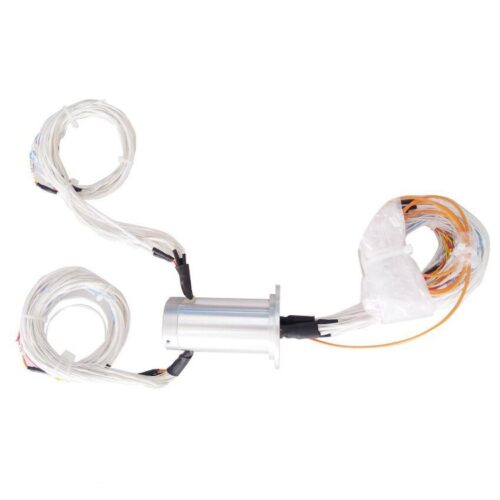

Ingiant hybrid slip rings 25channels combine 1 channel fiber optic
