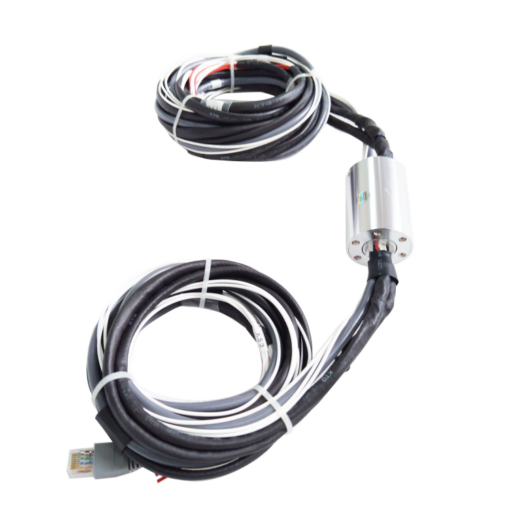

DHS040-11 capsulated Ethernet slip ring diameter 40mm 11channels
Ethernet slip rings allow Ethernet signals to be transmitted through rotating interfaces, and can be called network cable slip rings, network slip rings, or RJ45 slip rings. Ethernet slip rings transmit power and Ethernet signals from fixed structures to rotating structures through the contact between precious metal rings and brush wires. This type of signal slip ring can mix power and signals, and can also transmit multi-channel low-frequency signals and currents. Suitable for 10/100/1000 Base T transmission and equipped with RJ45 plug-and-play plug, optional M12, CAT5E, CAT6 type cables. Gigabit Ethernet slip rings are used in wind turbines, industrial robots, and radar antennas, among others.
Features
- It has the advantages of stable transmission, no packet loss, anti-crosstalk, large return loss and low insertion loss.
- Fiber brush bundle contact structure ensures product life
- Stable transmission of 1-2 channels of Gigabit Ethernet signals
- Integrated structural design for easy installation
- Protection grade IP51-IP68 optional
- Provide standard models and can be customized
- RJ45 male and female connector optional
- Use high-quality Ethernet cables
- Maintenance-free
|
DHS040-11 |
|||
|
The main parameters |
|||
| Number of circuits | 11 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Product drawing:
Our advantage:
- Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
- Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
- INGIANT adheres to the business philosophy of “customer-centered, quality-based, innovation-driven”, seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warranty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.
