DHS044-50 Ingiant Customized servo slip rings with solid flange design diameter 44mm
Servo Slip Rings – DHS044 Series Customized
DHS044-50 Servo slip rings are conductive slip rings used for servo encoders and servo motors. Servo slip rings can save a lot of cables and installation work. They are suitable for various servo motors and stepper motors, and can both supply power and transmit various data. They usually use gold-to-gold contacts and are rationally designed to avoid internal and external interference.
Product Features
- Special internal shielding and wiring design
- Lubrication-free bearings
- Gold-to-gold contacts
- Easy to install
- Can be mixed with other switch signals and power lines, such as Profibus, Profinet.
- Can be mixed with other gas-liquid rotary joints and used simultaneously.
|
DHS044-50 |
|||
|
The main parameters |
|||
| Number of circuits | 50 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

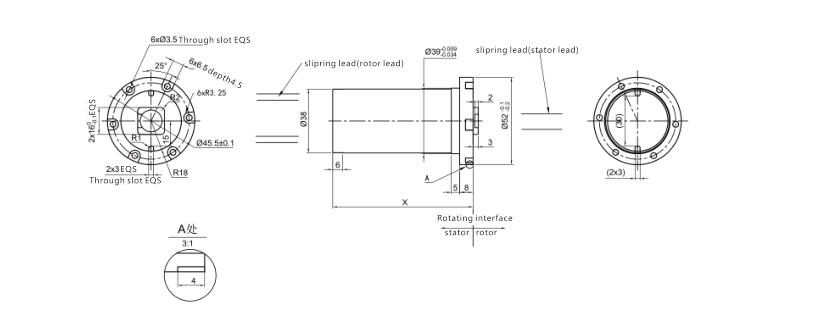

Standard product outline drawing:
Our advantage:
- Product advantage: exclusively suitable for the transmission of a wide variety of liquids and media such as gas or compressed air. For the smart clinic of the future, hybrid electrical rotating unions are needed that can combine the transmission of media, electricity and data. It is crucial that the different substances in a multi-channel rotary feedthrough can be sharply separated from each other.
- Company advantage: We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
- Customised advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
