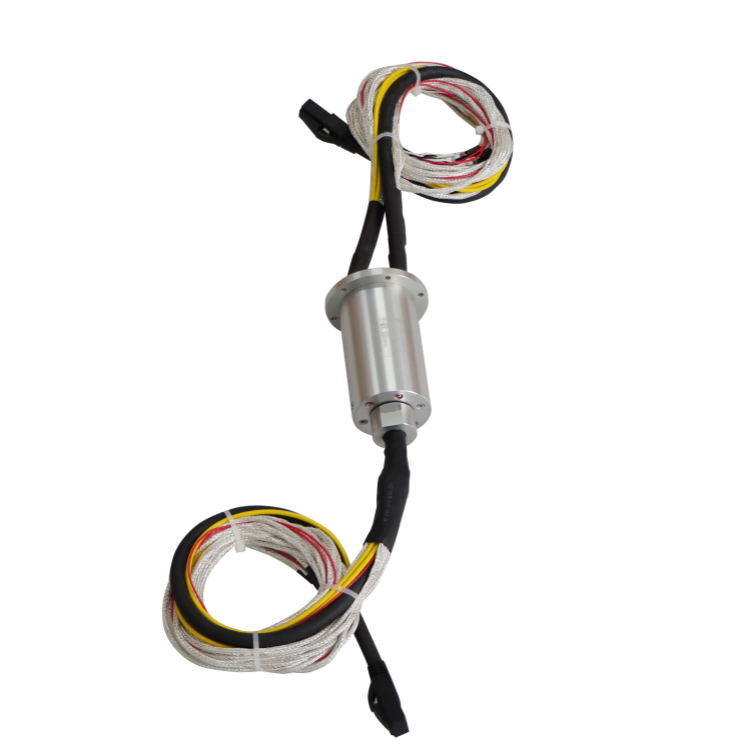

DHS045-30 compact slip rings diameter 45mm 30channels with solid shaft
Compact slip rings for complex industrial power and signal transmission. Advanced fibre brush technology for long life and low contact resistance. Combined power and signal transmission possible.
Our slip rings are maintenance-free and can also be combined with rotary unions for pneumatics, hydraulics, water, vacuum, gas or other media. In addition to standards, we develop application-specific slip rings that mechanically and electrically meet customer requirements. We have a very wide range of products with countless possible solutions, for applications with flange, hollow shaft but also for open, modular rotary distributors as well as flat disc slip rings. We would be pleased to advise you in a personal conversation about the various application possibilities.
|
DHS045-30 |
|||
|
The main parameters |
|||
| Number of circuits | 30 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our advantage:
- Product advantage: Transmit analog and digital signal；Adopts gold-to-gold contact to transmit signal；Able to integrate up to 135 channels；Module design, guarantees consistency of the products；Compact structure, small size；Adopt special soft wire ；Long life, maintenance-free, easy to install, more stable performance and 360°continuous rotation to transmit power and data siganls.
- INGIANT adheres to the business philosophy of “customer-centered, quality-based, innovation-driven”, seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warrenty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.
- Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has become the long-term designated qualified supplier for numerous military units &research institutes, domestic and foreign companies.
