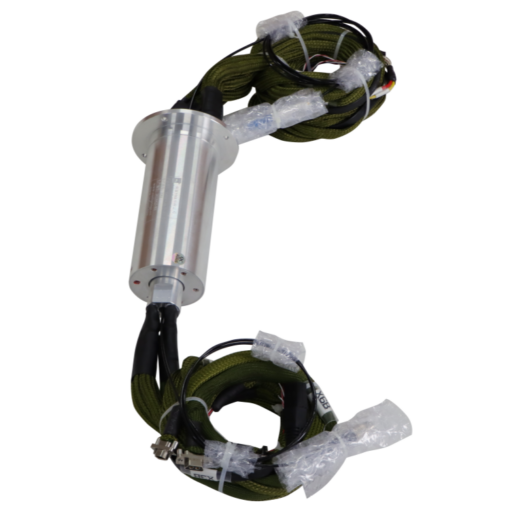

DHS055-46-1F-002 Special aviation plug connector hybrid slip ring combination one-channel optical fiber slip ring
Hybrid slip ring with aviation plug
Aviation plug is a member of the connector family. Its main function is to connect power or signal. Use aviation plug and socket to connect,
It is not only safe, reliable and easy to operate, but also has a more beautiful appearance.
There are two categories: military aviation plugs and civil aviation plugs. The classification is to facilitate the practical application of the product.
This is a slip ring with aviation plug produced by INGIANT. Both the rotor and stator are equipped with aviation plugs, ensuring a unique connection between the interface and the equipment, and are easy to replace and install, improving the stability and reliability of the equipment.
|
DHS055-46-1F-002 |
|||
|
The main parameters |
|||
| Number of circuits | 46 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing：
Our advantage:
- Product advantage: Low unit price,Large constructive design possibilities,High reliability,Low weight,Low installation space,easy installation, the hybrid design is space-saving.
- Company advantage: More than 10 years experienced senior engineers in the industry and 12 people R&D team, provide more professional and reliable solutions for your rotating conduction problems. More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
- Customised advantage: If you are not sure which products are ideal for your challenges, please contact us. These components are extremely flexible and versatile, so use our technical advice to project the optimum slip ring body for your application. Our service team will deal with your request immediately and get back to you as soon as possible.
