DHS056-48-1S OD 56mm HD video slip ring with 1channel high-definition video signal and electric hybrid slip ring

HD video slip ring High-definition video rotary joints

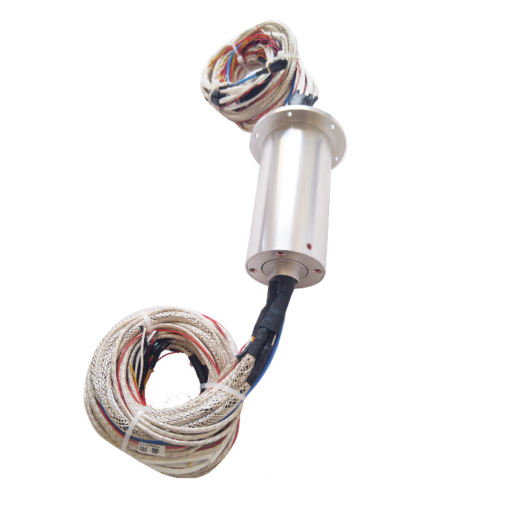

DHS056-48-1S series HD video slip ring / HD video rotary joint, HD-SDI electrical slip ring, supports 1 channel HD-SDI high-definition signal (coaxial cable) + 1~48 channels (1A) transmission at the same time, a high-end conductive slip ring specially designed and developed for HD video signal 1080P. The maximum rate can reach 3GHZ, and it can mix 1~30 channels of signals and power current 10A or more.

The product adopts special surface treatment technology and ultra-hard gold plating treatment to ensure extremely low resistance fluctuation and ultra-long working life.

Mainly used to transmit weak control signals and weak currents of small and medium-sized systems. Such as video, control, sensing, power supply, Ethernet.

Typical applications:

Various high-end camera cars, filming equipment, unmanned vehicles, drone pods, industrial drone pods, high-definition camera pan/tilts, ball cameras, etc.;

Category: RF rotary joint & COAX slip rings Tag: HD video slip ring

Description

DHS056-48-1S
The main parameters
Number of circuits	48	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

Technical parameters of high-definition video rotary joints:

Frequency Range ：	DC-3GHz；Impedence：50Ω；
Interface Type:	SMA-f(50Ω) ；
Insertion loss:	≤3dB(Without wire)；
Insertion loss change:	≤0.5dB；
Standing wave ratio:	≤2.5dB。

Standard product outline drawing:

Our advantage:

Product advantage: Our products convince by high performance, wear resistance and high material quality of the contacts, which leads to high plant availability, flexibility and an economic price/performance ratio. A special focus is also placed on minimum friction and the lowest possible maintenance intensity.
Company advantage: As manufacturer of various slip ring bodies,Ingiant elies on a combination of targeted design processes, a selection of the best raw materials, professional production conditions, 100% quality control and professional assembly at the customer’s site.
Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
