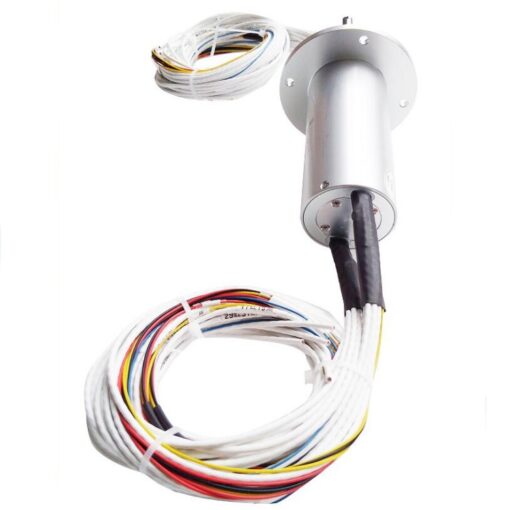

DHS057-44 encapsulated slip rings diameter 57mm 44channels

Wherever space is limited or critical, our encapsulated slip ring bodies can be used. The compact design can transmit signals (Ethernet, USB, RS, CANbus, video signals, sensor signals, etc.) and/or power in combination.

he housing is available with or without flange, and in plastic or aluminium. The encapsulated slip rings use the best fiber brush technology and precious metal multi-contact. This offers you very low noise for high-end bus transmissions, low contact pressure for long life time and this makes the slip rings maintenance free

Category: Capsulated Slip Rings Tags: Capsulated Slip Rings, solid shaft slip ring

Description

DHS057-44
The main parameters
Number of circuits	44	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

Standard product outline drawing:

Our advantage:

Product advantage: With the encapsulated miniature slip rings, we offer you the ideal components for transmitting power and signal current to rotating components. Our comprehensive product range also has the right solution for your applications.
Company advantage: Transmission technology for complex industrial and safety-relevant applications form the core of our product range. All products can be individually adapted to the applications in order to offer you added value. Premium engineering – that is our claim for every single product we manufacture. We would like to convince you of this.
Customized advantage: We can supply you with quantities from 1. Special shapes or special types are possible on request. Give us a call. We will discuss your challenges until we have found your optimal slip ring. Trust our competence and experience. Our encapsulated miniature slip rings are used in tens of thousands of applications worldwide.

DHS057-44 encapsulated slip rings diameter 57mm 44channels
