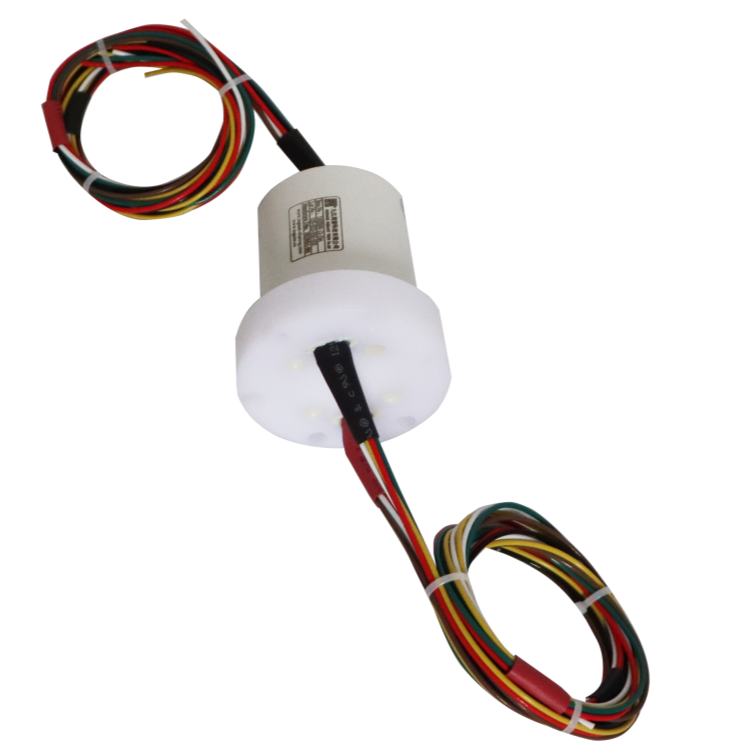

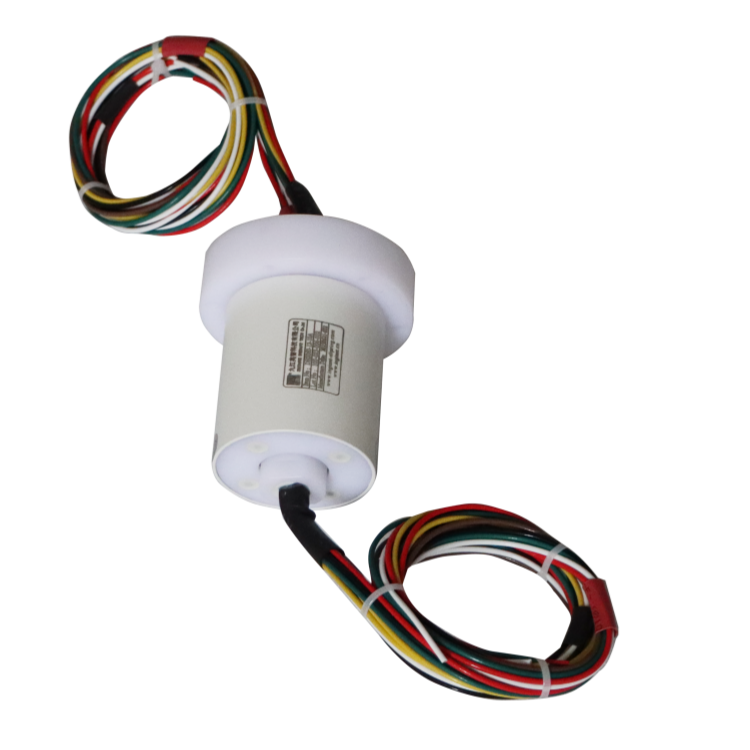

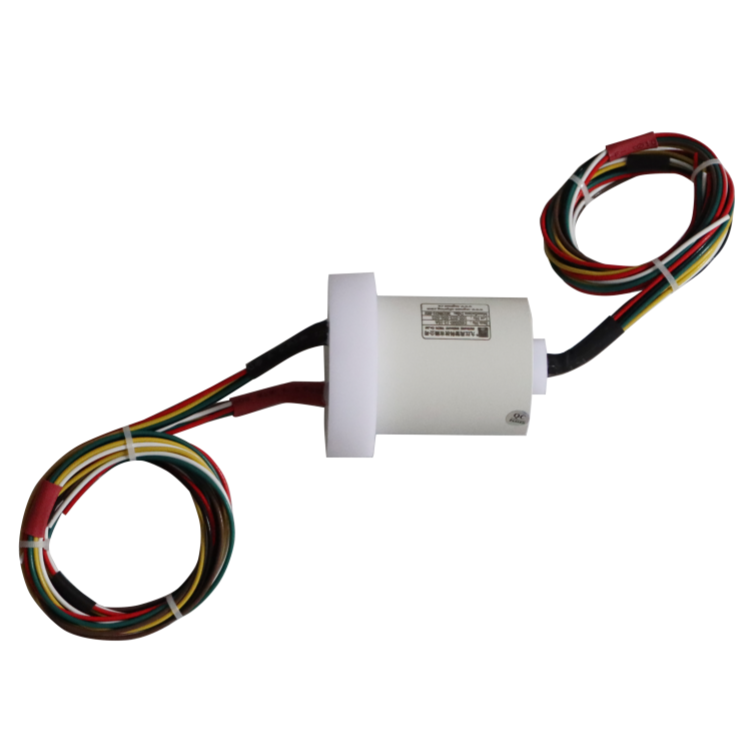

DHS060-12-10A capsulated automation slip rings 12channels 10A for complex industrial power and signal transmission

Capsulated automation slip rings with rotational speeds of up to 1000 rpm

Capsulated automation slip rings for complex industrial power and signal transmission. Advanced fibre brush technology for long life and low contact resistance. Combined power and signal transmission possible.

Functionality of Automation slip rings

The structure of the Automation slip ring is designed so that each cable runs into the housing on one side and onto a brush, which in turn rests on a separately insulated ring. Another cable leads from the ring on the opposite side out of the housing. The Automation slip rings are particularly well prepared for their tasks due to two characteristics:

• Silver-silver or gold-gold contact surfaces
• Encapsulation through robust aluminium housing

The precious metal surfaces reduce the electrical resistance to a minimum. This leads to a very high quality signal transmission. Furthermore, the contact pressure of the reinforced and maintenance-free contact brushes is designed in such a way that metal abrasion occurs only minimally. This makes the Automation slip rings trouble-free and durable.

The Automation slip rings are completely encapsulated by an aluminium housing. The use of the light metal has numerous advantages. The construction can be robust and can withstand environmental influences and vibrations. Electromagnetic interference from outside is safely shielded, which has a positive effect on the signal quality. The housings are available with or without flange. The flanged version has drilled holes with which the module can be mounted. The version without flange is particularly space-saving.
