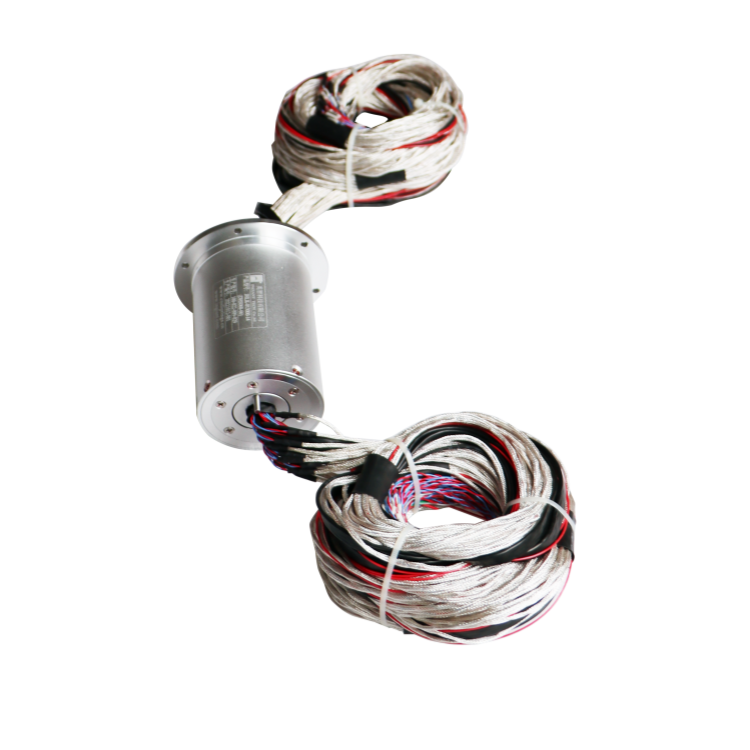

DHS068-66 solid shaft conductive slip ring 68mm 66channels for amusement rides
Conductive slip rings are widely used in security monitoring, wind turbines, stage lighting, amusement facilities, packaging machinery, robotic arms, engineering machinery, medical machinery, maritime ships, cable reels, measuring instruments and other industries.
The key link of raw material selection of conductive slip ring, conductive slip ring is also called slip ring, collector ring or middle rotary joint, in practical application, several key links of raw material selection must be paid attention to:
- Slip ring installation actual work situation.
- Is there any vibration.
- Cable sheath characteristics of conductive slip rings.
- Problems such as working speed and wear resistance of the slip ring.
|
DHS068-66 |
|||
|
The main parameters |
|||
| Number of circuits | 66 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements
Standard product outline drawing:
Our advantage:
- Product advantage: exclusively suitable for the transmission of a wide variety of liquids and media such as gas or compressed air. For the smart clinic of the future, hybrid electrical rotating unions are needed that can combine the transmission of media, electricity and data. It is crucial that the different substances in a multi-channel rotary feedthrough can be sharply separated from each other.
- Company advantage: We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
- Customised advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components,Lower Costs,Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
