DHS078-17 78mm Ethernet slip ring customization and transmit 100/1000M Ethernet signals
Ethernet Slip Ring – DHS Series
Accept customization and transmit 100/1000M Ethernet signals

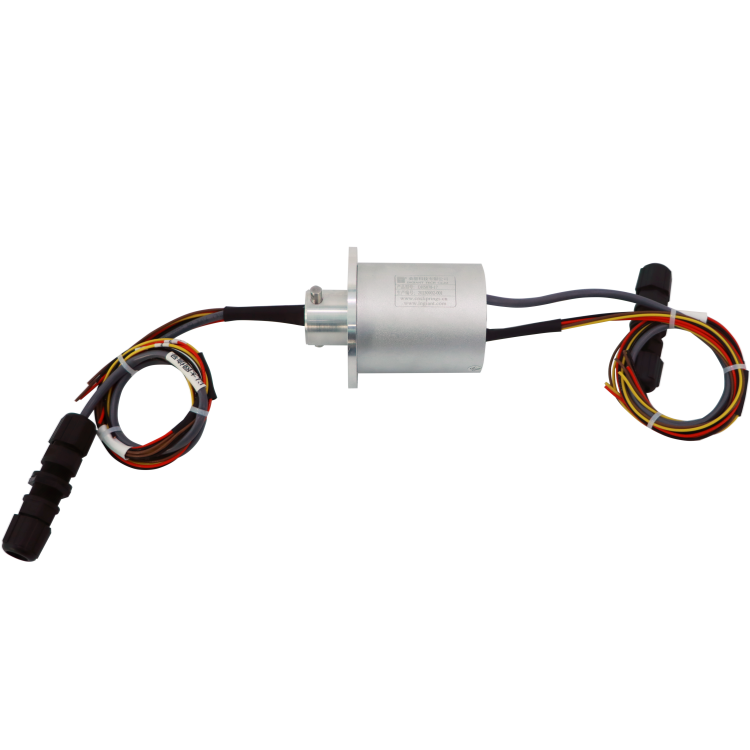

Ethernet slip ring DHS078-17 series, with an outer diameter of 78mm, can integrate and transmit 5A current/2A signal/1000M Ethernet signal. Plug and play type with RJ45 connector, also called network slip ring, network cable slip ring.
Features
- It has the advantages of stable transmission, no packet loss, anti-crosstalk, large return loss and low insertion loss.
- Fiber brush bundle contact structure ensures product life
- Stable transmission of 1-2 channels of Gigabit Ethernet signals
- Integrated structural design for easy installation
- Protection grade IP51-IP68 optional
- Standard models available and customizable
- RJ45 male and female connector optional
- Use high-quality Ethernet cables
- Maintenance-free
Typical applications
- Small Network System
- Video Surveillance System
- Stage Control System
- Industrial automation control
- Various network cables and RJ45 interface transmission
|
DHS078-17 |
|||
|
The main parameters |
|||
| Number of circuits | 17 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Product drawing:
Our advantage:
- Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
- Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
- Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
