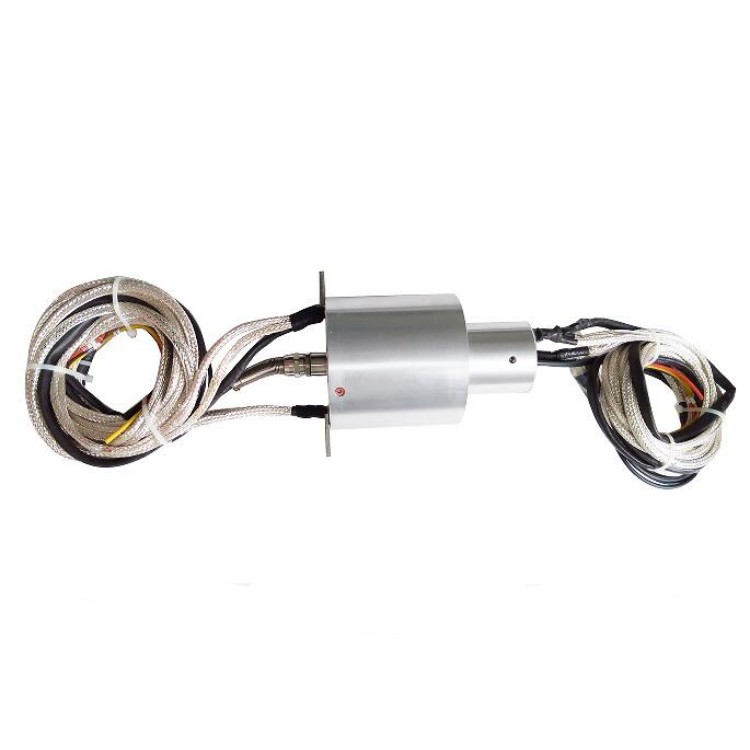

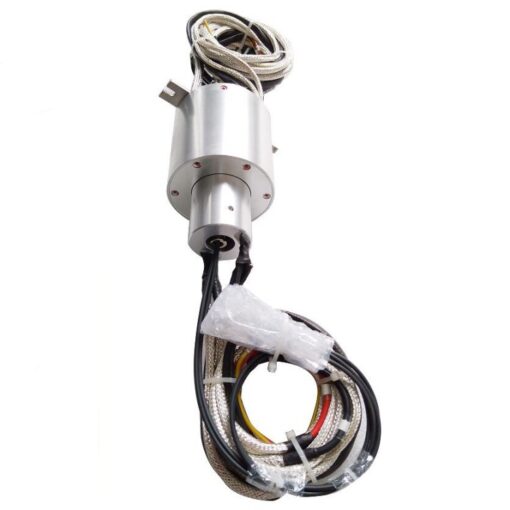

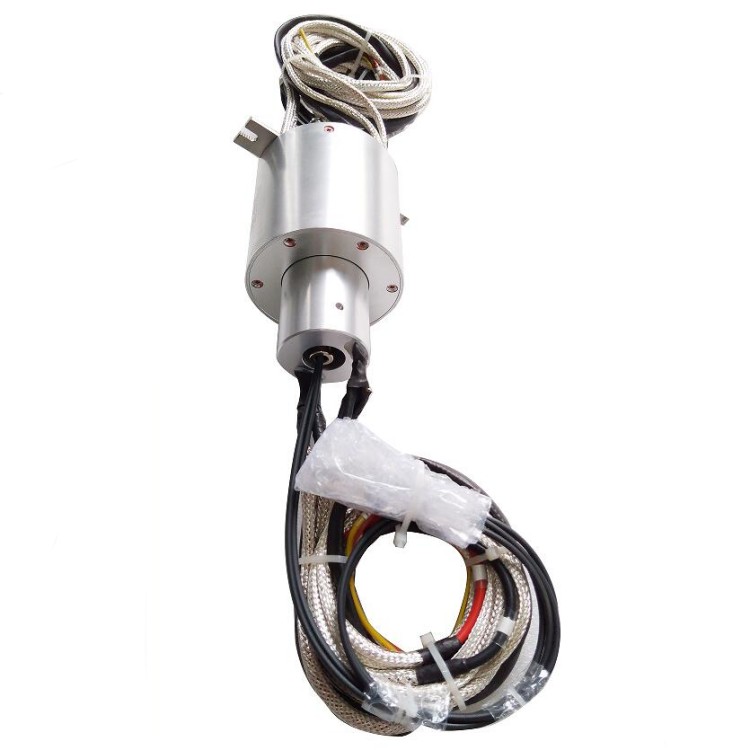

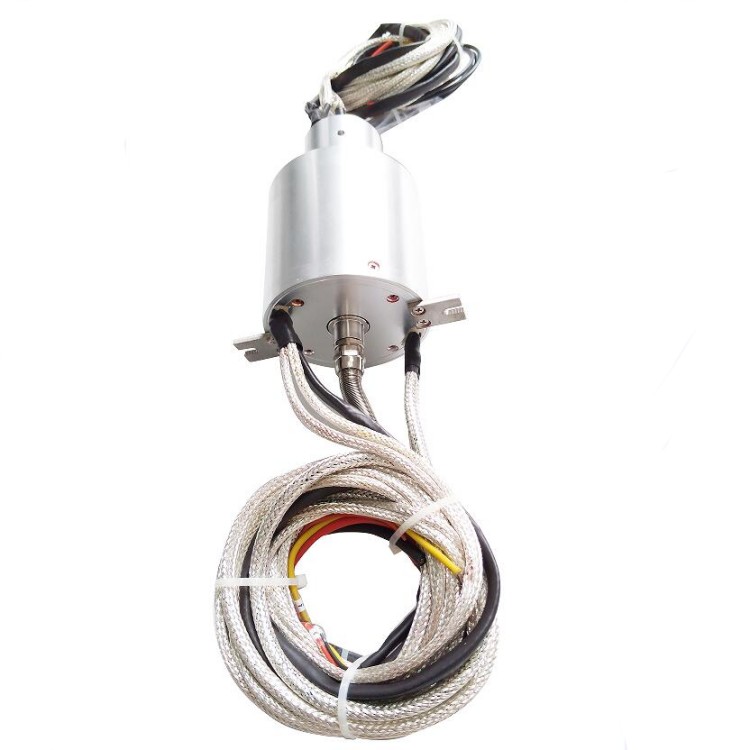

DHS082-7-2F-L300-002 capsulated slip ring 7channels include 2 fiber optic diameter 82mm
What is a slip ring do?
A slip ring passes electrical signals and power across a rotating interface using sliding electrical contacts. These contacts are typically a rotating ring and a stationary brush, or wiper, that slides along the ring surface during rotation.
The world of industry and electromechanics is always in motion. More precisely, in rotary motion (rotating consumers). Wind turbines, medical technology, crane technology, stage technology, video cameras, screens, data-driven automation, data transmission and robotics – standstill is the death of efficiency and innovation. None of these industries function without the transmission of power and data on continuous, unrestricted or intermittent rotation.
Therefore, reliable, maintenance-free and loss-free transmission of data, power and electrical signals between the individual stationary and rotating components is required. That’s were electromechanical devices come into play that allow that kind of transmission, regardless of the application or kind of rotation: slip rings. This may be components rotating incomplete revolutions in one direction continuously or rotating incomplete revolutions in either direction. Or they oscillate through parts of a revolution, depending on the application.
|
DHS082-7-2F-L300-002 |
|||
|
The main parameters |
|||
| Number of circuits | 7 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements
Standard product outline drawing:
Our advantage:
- Product advantage: Specification can be customized, like inner diameter, rotating speed, housing material and color, protection level. Product with small torque, stable operation and excellent transmission performance, more than 10 million revolutions of quality assurance, longer using life.
- Company advantage: Ingiant has a database of more than 10,000 slip ring scheme drawings, and has a very experienced technical team . 58 kinds of technical patents of slip rings and rotary joints, we also provide both OEM and ODM services for world famous brands and customers,covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, strong R&D strength to meet customers’ different requirement.
- Excellent after-sales and technical support service: 12 months guaranty, customized, accurate and timely service for customers in terms of pre-sales, production, after-sales. Best service for long term cooperation.
