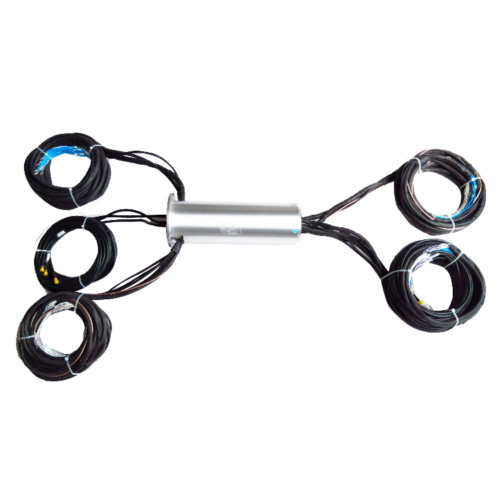

DHS090-72-3S Ingiant 90mm RF slip ring combination three-channel coaxial rotary joint and 72 electrical channels
RF Slip Ring – Three-channel coaxial rotary joint
Highly customized requirements, Frequency Range: 2.2-6GHz, 1.7-4GHz
DHS090-72-3S RF slip ring combination three-channel coaxial rotary joint and 72 electrical channels,out diameter 90mm.
RF slip rings can also be called RF rotary joints. They are used to transmit RF signals between the rotor and stator in a rotating system. They are often used to transmit high-frequency signals and high-frequency slip rings. RF rotary joints can be divided into coaxial rotary joints, waveguide rotary joints, and waveguide-coaxial rotary joints. Applications include radar antennas, air traffic control, space, and other fields that usually need to receive and send multiple frequency signals.
Features:
- Supports 3-channel RF channels
- Mixed 72-channel power/signal
- Perfect VSWR
- Suitable for large-capacity data transmission without delay
- High-speed data transmission
- Widely used in satellites, radars, mobile antennas and other equipment
Typical applications: shipborne satellite communication devices, vehicle-mounted satellite communication equipment, satellite vehicles, emergency rescue command vehicles, high-end robots, rotating turrets on vehicles, remote control systems, radar antennas, medical systems, video surveillance systems, submarine operation systems to ensure national or international security systems, emergency lighting equipment, robots, exhibition/display equipment, etc.
RF Slip Ring – Three-channel coaxial rotary joint
|
DHS090-72-3S |
|||
|
The main parameters |
|||
| Number of circuits | 72 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Standard product outline drawing:
Our advantage:
- Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
- Company advantage: We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.
- Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warrenty, our goods are guaranteed for 12 months from date of sale,under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.
