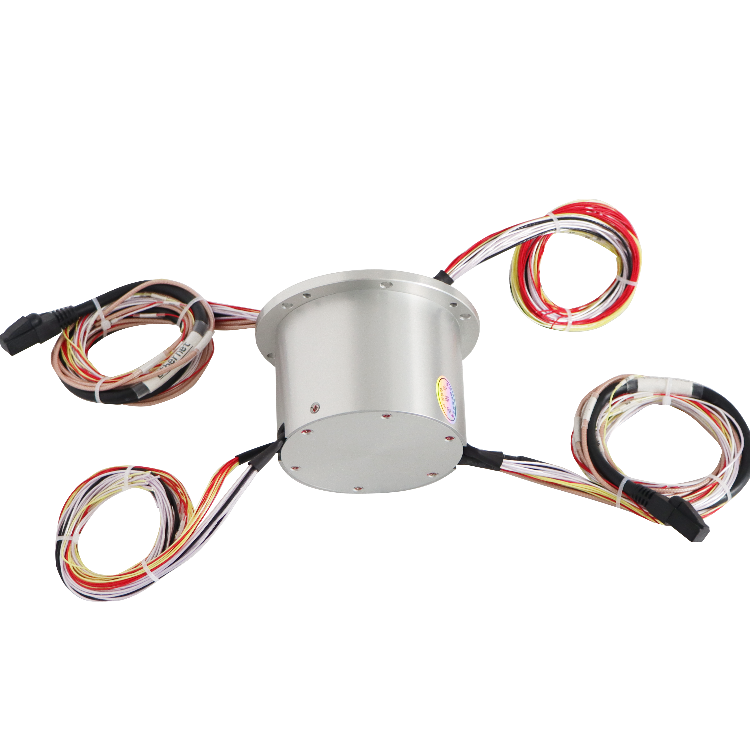

DHS095-57 HD-SDI slip rings diameter 95mm 57 channels for perfect broadcasting
Transmission of video signals HD-SDI Slip Rings
Loss-free transmission of high-frequency image and sound signals via HDMI (UHD, 4K, 8K, etc.)
HD-SDI slip rings for perfect broadcasting
SDI stands for “Serial Digital Interface”. It describes a type of cable and a form of connector that is mainly used in recording and playback devices in professional broadcasting. HD-SDI is an extension of this standard. It enables a data transmission rate that allows digital image recording and playback in high-definition quality. Coaxial cables or optical fibres are used as SDI and HD-SDI cables. The primary task of the HD-SDI slip rings is therefore to ensure interference-free signal transmission at all times.
|
DHS095-57 |
|||
|
The main parameters |
|||
| Number of circuits | 57 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Product drawing:
Our advantage:
- Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
- Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance.
- Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has become the long-term designated qualified supplier for numerous military units &research institutes, domestic and foreign companies.
