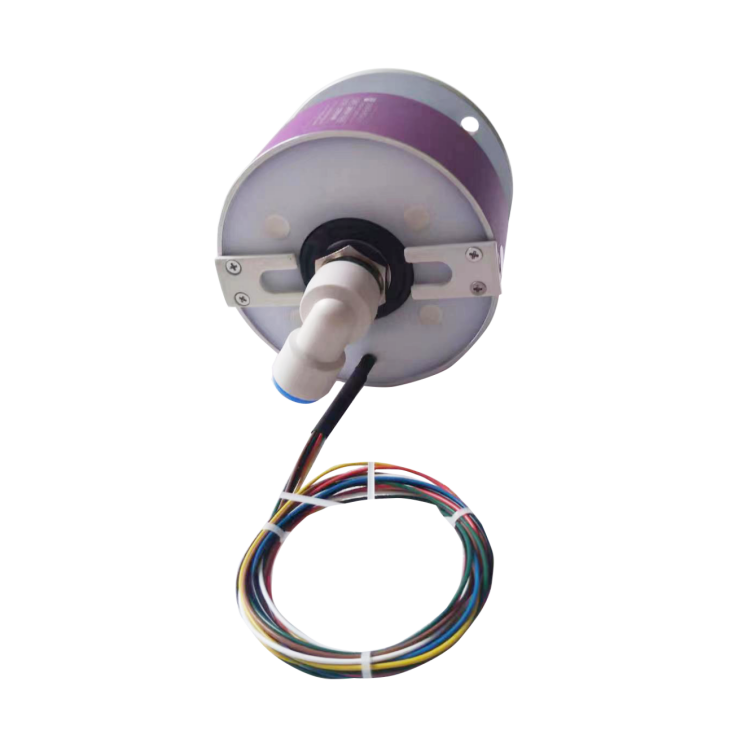

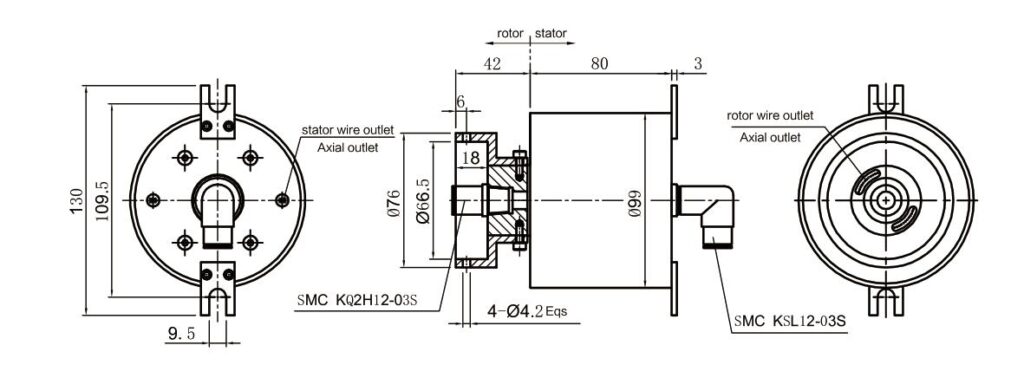

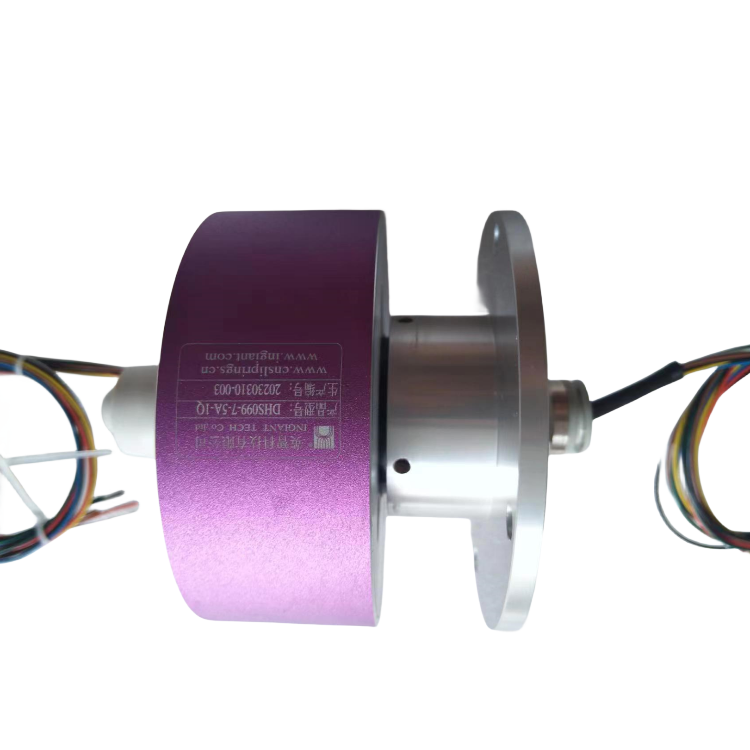

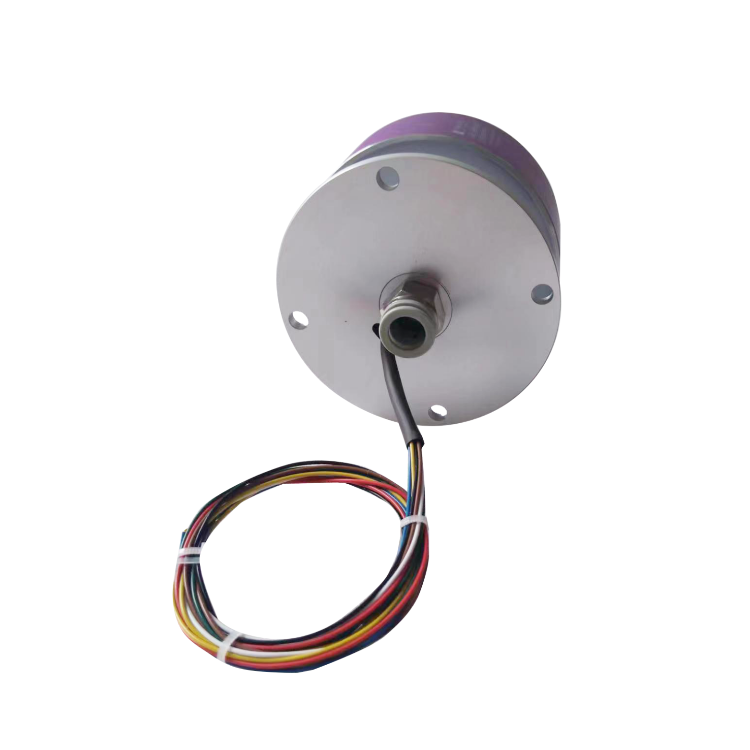

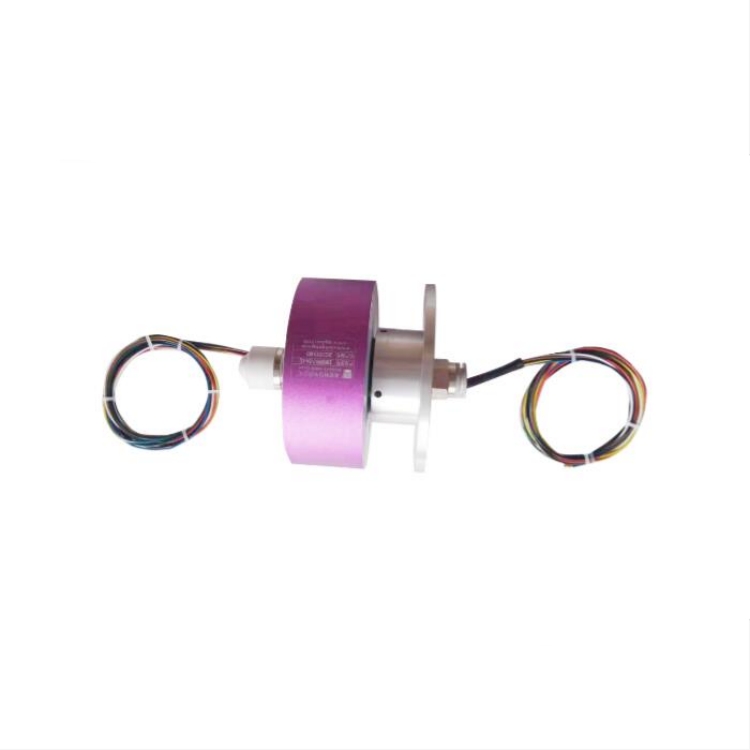

DHS099-7-5A-1Q Hybrid slip ring inner diameter 99mm, 7 channels 5A combined 1 pneumatic channel

Pneumatic liquid slip rings belong to the “hybrid slip rings”. They are designed for the passage of more than one form of energy. The pneumatic liquid slip rings are among the most powerful representatives of their class. Their task is to guide any incoming energy form through a rotating union that can be rotated as desired – or vice versa. The return line from a rotating duct into a rigid duct is also possible without any problems. The pneumatic liquid slip rings perform enormously, especially when passing through hydraulic or pneumatic pressures: the components can be pressurised with up to 100 bar. This makes them ideal for particularly demanding applications.

Advantages of pneumatic liquid slip rings

Pneumatic liquid slip rings offer their users the following advantages:

• High load capacity
• Long service life
• Easy installation
• Reliable, sophisticated design
• Compact design
• Various applications

10 million revolutions at 300 rpm and 100 bar pressure are a real claim. The robust, tested and highly resilient pneumatic liquid slip rings withstand even the most demanding environments. At the same time, their installation is more than simple: the housing can be attached to any suitable component with standard screws. The connections for the media feed-throughs are standardised and can be connected with conventional tools. Once installed, the rotating unions perform reliably. Since they can pass on practically all relevant forms of energy with a single component, they are particularly space-saving. The possibilities for their use are correspondingly large.
