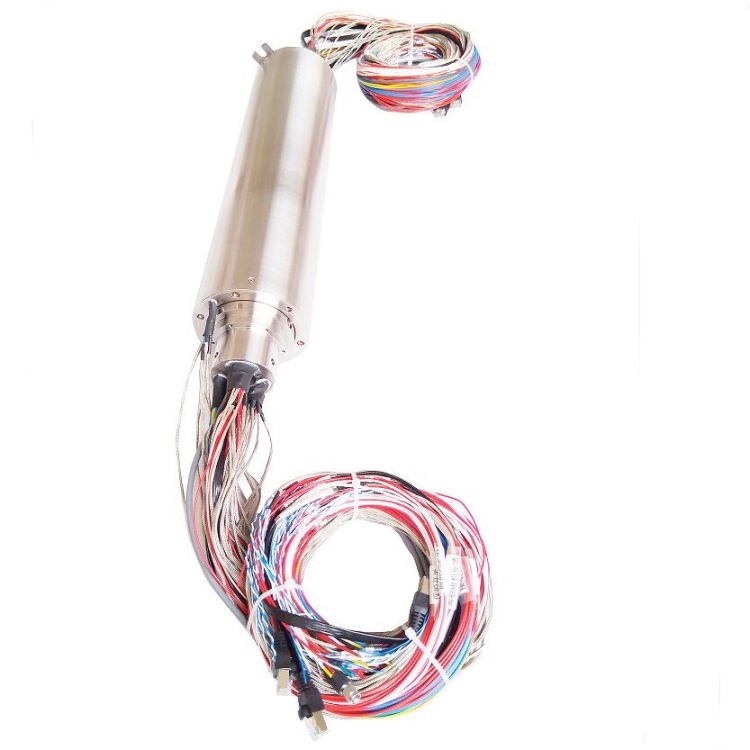

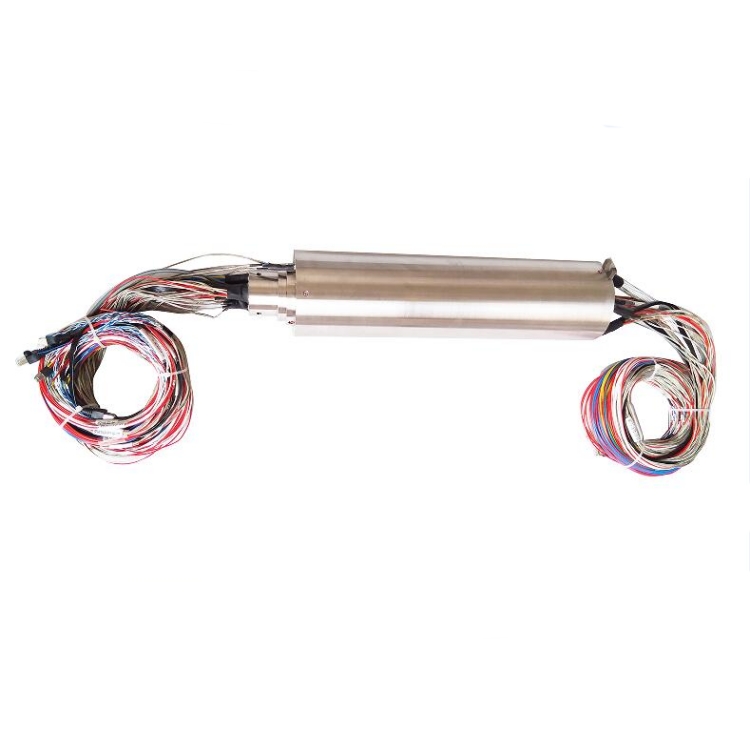

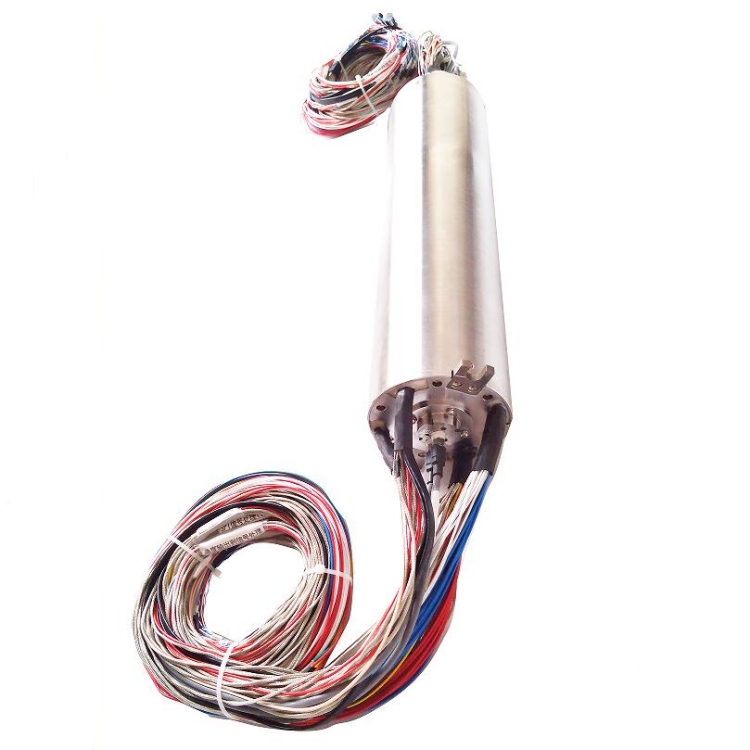

DHS106-144-2S hybrid slip ring combine RJ02-501 dual channel high frequency joint
High-definition microwave coaxial radio frequency rotary joint is also called high-frequency slip ring and radio frequency slip ring. It is a high-frequency slip ring specially developed by Ingiant for radar, satellite antenna and other equipment. Devices for high-speed serial digital signals or analog signals such as signals and microwave signals. This series of products supports single-channel or multi-channel high-frequency signal transmission alone, and can also support high-frequency signal mixed transmission with 24V control signal, communication signal, power supply, and fluid medium. The high-frequency signal adopts a 50Ω characteristic impedance RF coaxial structure head. Other specified connectors can be switched, and wire specifications RG178, RG316, RG174, etc. are optional.
Features:
- Can transmit high-speed high-frequency (coaxial radio frequency) signals without error;
- Support 1~2 high-frequency (coaxial RF) channels;
- 1~96 power/signal channels can be mixed;
- Superior insertion loss and VSWR;
- Suitable for satellite antenna, vehicle, radar, microwave antenna test bench and other fields;
|
DHS106-144-2S |
|||
|
The main parameters |
|||
| Number of circuits | 144 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

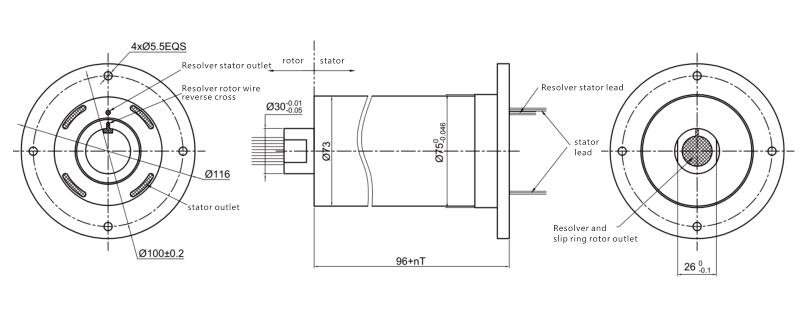

Standard product outline drawing:
Our advantage:
- Product advantage: Our products convince by high performance, wear resistance and high material quality of the contacts, which leads to high plant availability, flexibility and an economic price/performance ratio. A special focus is also placed on minimum friction and the lowest possible maintenance intensity.
- Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
- Customised advantage: we offer modular slip ring systems that can be completely individually adapted to your needs. our slip ring bodies are convincing even under rough environmental conditions and temperatures.
