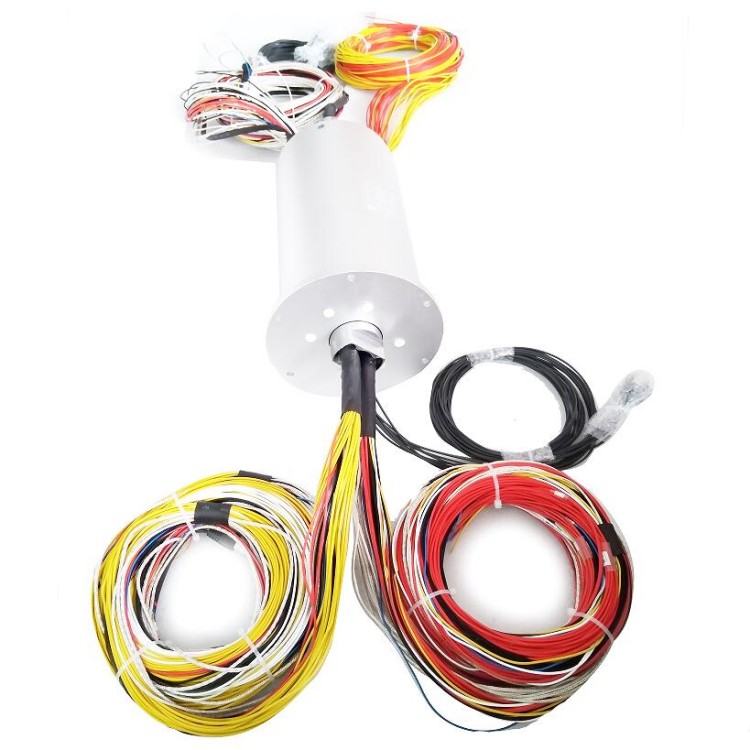

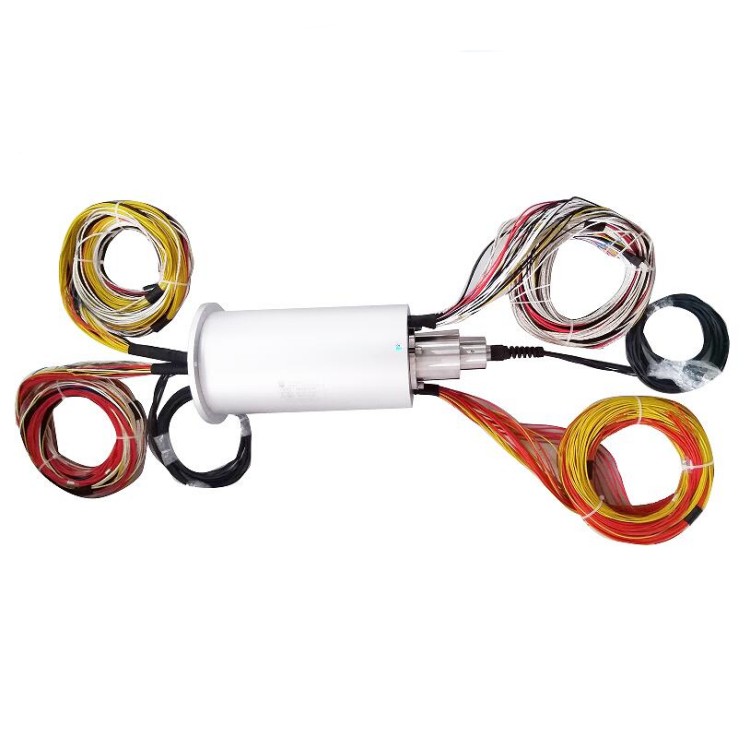

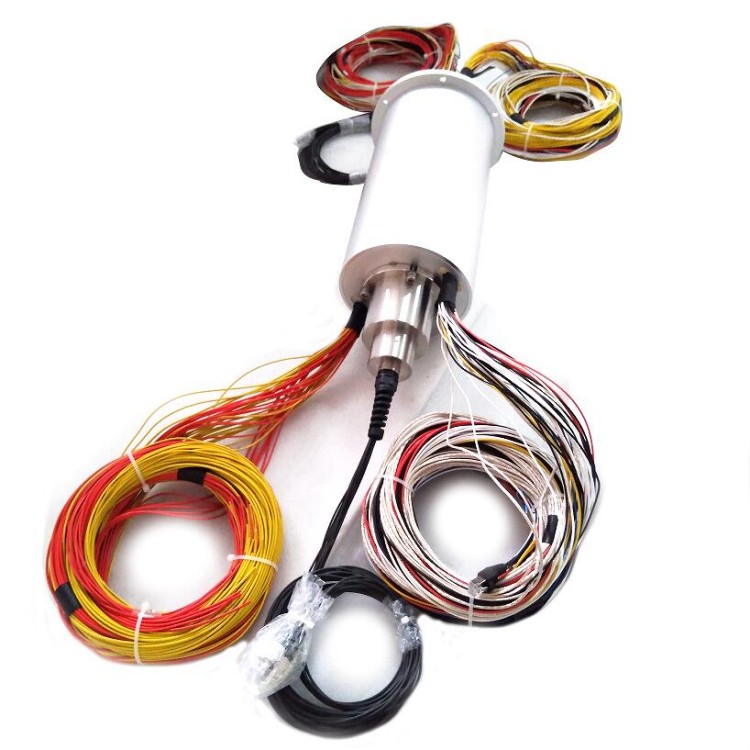

DHS140-42-8F solid shaft hybrid slip ring 42 channels and fiber optic slip ring 8 channels
A Slip Ring can be used in any electromechanical system that requires unrestrained, intermittent or continuous rotation while transferring power. A slip ring is also called a rotary electrical joint, collector or swivel. A slip ring can improve system performance by simplifying operation and eliminating damage prone wires. Our range of slip ring includes hollow shaft slip ring and solid shaft slip ring.
This Solid Shaft Hybrid Slip Ring is designed to mount on the end of a rotating shaft and make electrical connections to strain gauges, thermocouples or other sensors that have been installed on rotating equipment.
Features:
Rugged design for industrial use.
Solid shaft.
Precious metal contacts for providing high hard wearing high integrity surface.
Multi-finger precious metal contacts.
Stainless steel housing with ball bearing for long life.
Long lead wire available on customer request.
Customized version available.
|
DHS140-42-8F |
|||
|
The main parameters |
|||
| Number of circuits | 42 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements
Standard product outline drawing:
Our advantage:
- Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
- Company advantage: Ingiant provides various high-precision conductive slip rings and technical support for various military, aviation, navigation, wind power, automation equipment, research institutes and colleges for a long time. We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality. As a high-end conductive slip ring manufacturer, the company not only provides high-quality standard products, but also relies on our technical advantages, focusing on providing high quality products to meet customers high requirements.
- Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request.
