DHS174-84-1F low frequency capsulated slip ring 174 mm 84channels with one channel fiber optic for radar

Slip ring is a kind of precision mechanical parts. The level of technology directly determines the quality of the product. The level of its manufacturing process directly determines the quality of the flow ring. The link requirements are very demanding and strict. The details of its processing and production links determine the quality of the confluence ring. During the processing and production process of the confluence ring, the early drawing design and planning must pay special attention to details and key points of the process.

Characteristics :

Fully satisfy the image and data transmission of 360-degree unlimited rotation
The conductive slip ring has low noise and long service life
Small torque, smooth operation
Very low contact resistance <1MΩ
Small size and compact structure

Category: Capsulated Slip Rings Tags: Capsulated Slip Rings, solid shaft slip ring

Description

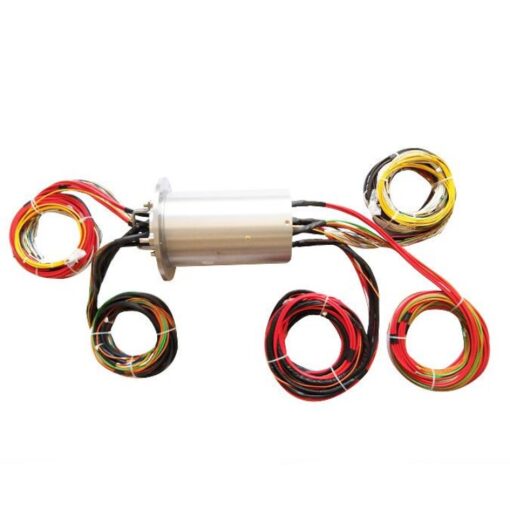

DHS174-84-1F
The main parameters
Number of circuits	84	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

Standard product outline drawing:

Our advantage:

Product advantage: With the encapsulated miniature slip rings, we offer you the ideal components for transmitting power and signal current to rotating components. Our comprehensive product range also has the right solution for your applications.
Company advantage: Transmission technology for complex industrial and safety-relevant applications form the core of our product range. All products can be individually adapted to the applications in order to offer you added value. Premium engineering – that is our claim for every single product we manufacture. We would like to convince you of this.
customised advantage: The different Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value. We support our customers for customised solutions .
