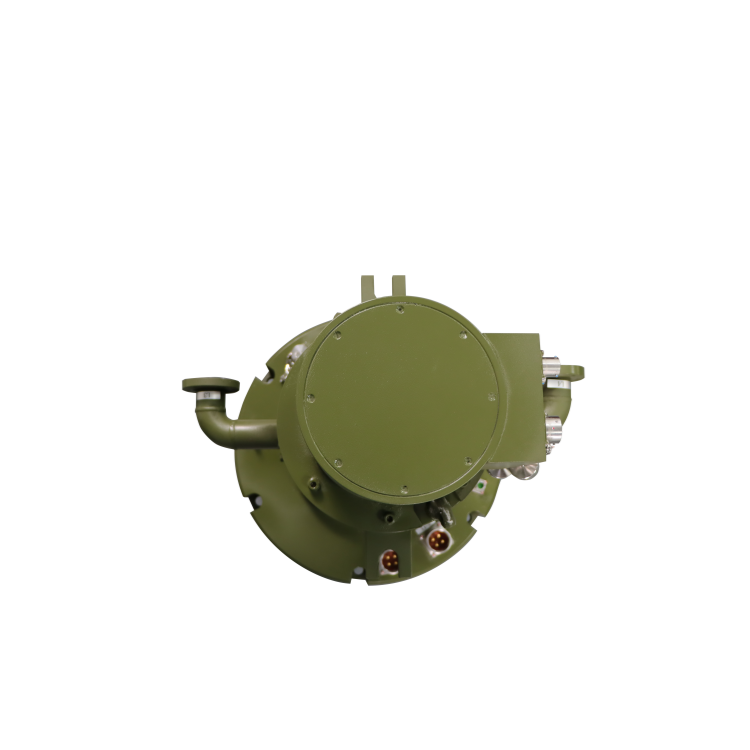

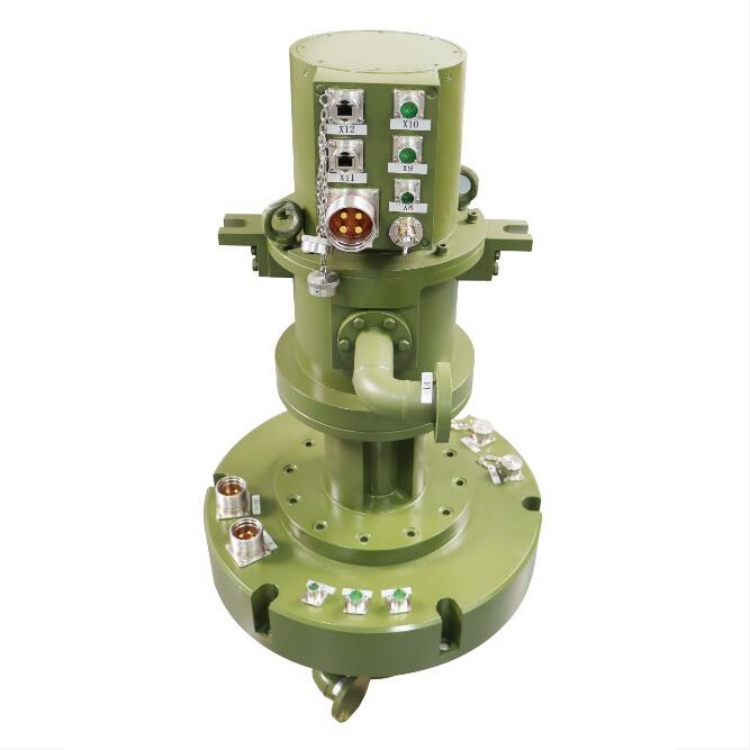

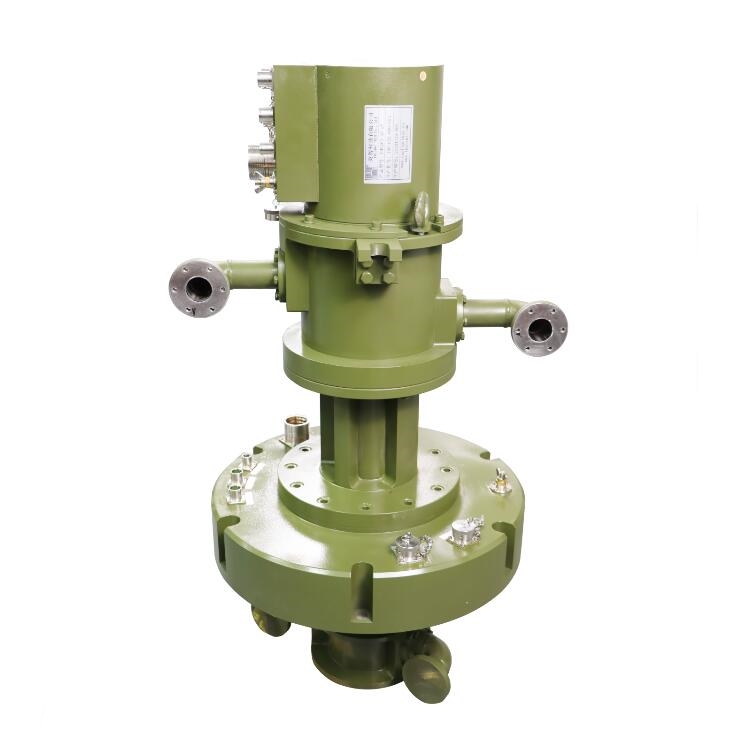

DHS260-47-2Y hybrid slip ring diameter 260mm, 47 channels with 2 hydraulic channels
Hybrid slip ring with a large diameter of 260mm, this slip ring provides ample space for accommodating multiple channels. It boasts an impressive 47 channels, allowing for the simultaneous transmission of various signals and power lines. This makes it ideal for applications that require the transfer of a large amount of data and power, such as industrial machinery, packaging equipment, and rotating cameras.
Hybrid slip ring offers two dedicated hydraulic channels, enabling the seamless transmission of hydraulic fluid. Hydraulic systems are widely used in heavy machinery and industrial applications, where the precise control of force and motion is essential. The inclusion of hydraulic channels in the slip ring design eliminates the need for additional hydraulic fittings or connections, simplifying the installation process and reducing the risk of leaks or malfunctions.
|
DHS260-47-2Y |
|||
|
The main parameters |
|||
| Number of circuits | 47 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements
Standard product outline drawing:
Our advantage:
- Company advantage: We offer standardized modularized design and fully customizable products, according to customers’ special requirements and various applications. If you have special customized requirements, please feel free to contact us so that we can make the best recommendation for your specification.
- Product advantage: The various Ingiant slip ring series are optimised for a wide range of applications. We support our customers for tailor-made solutions. All products can be individually adapted to the applications in order to offer you added value.
- Customised advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.
