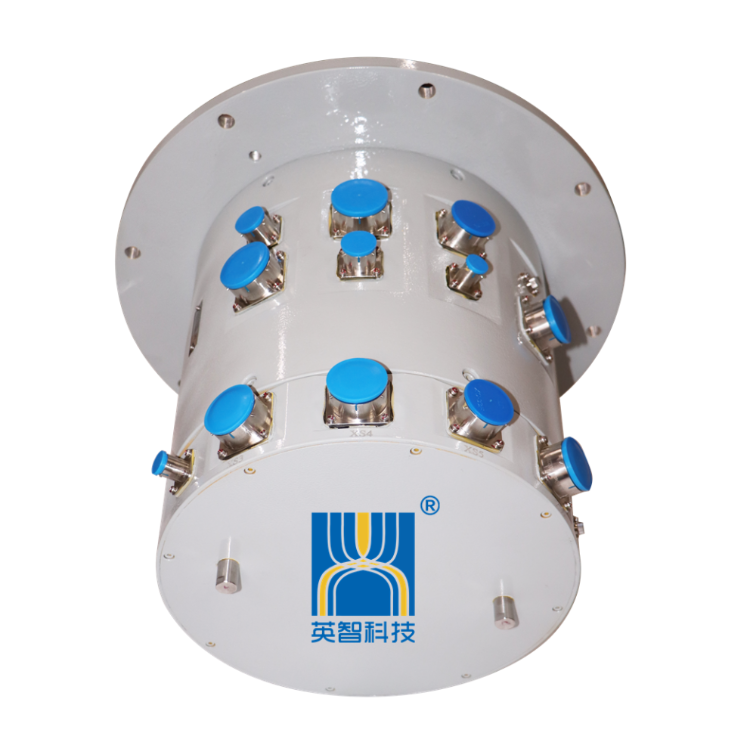

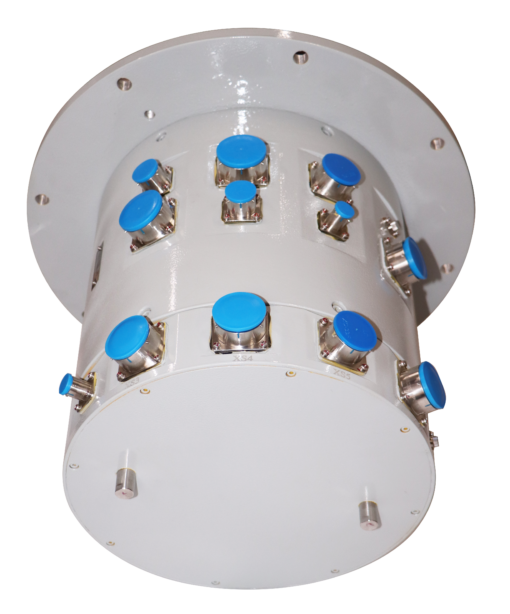

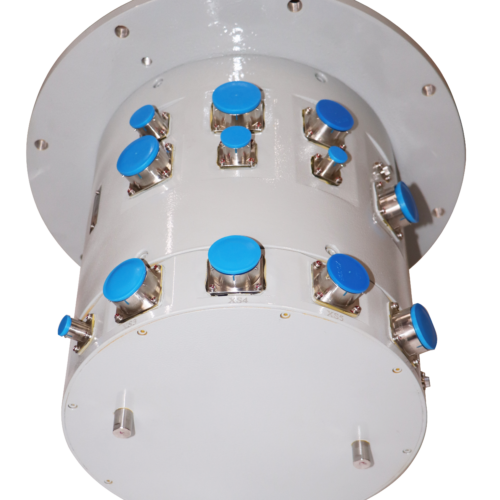

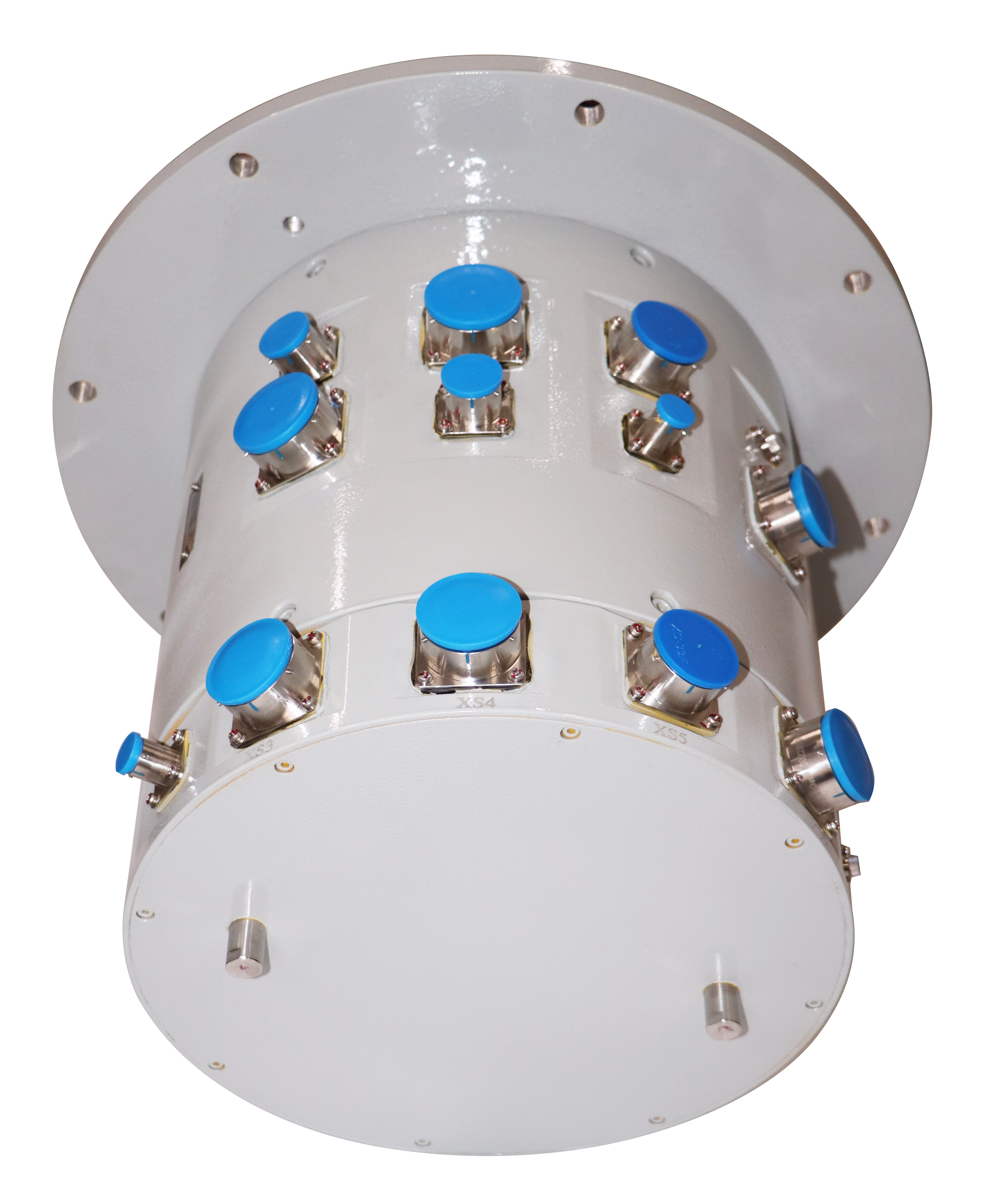

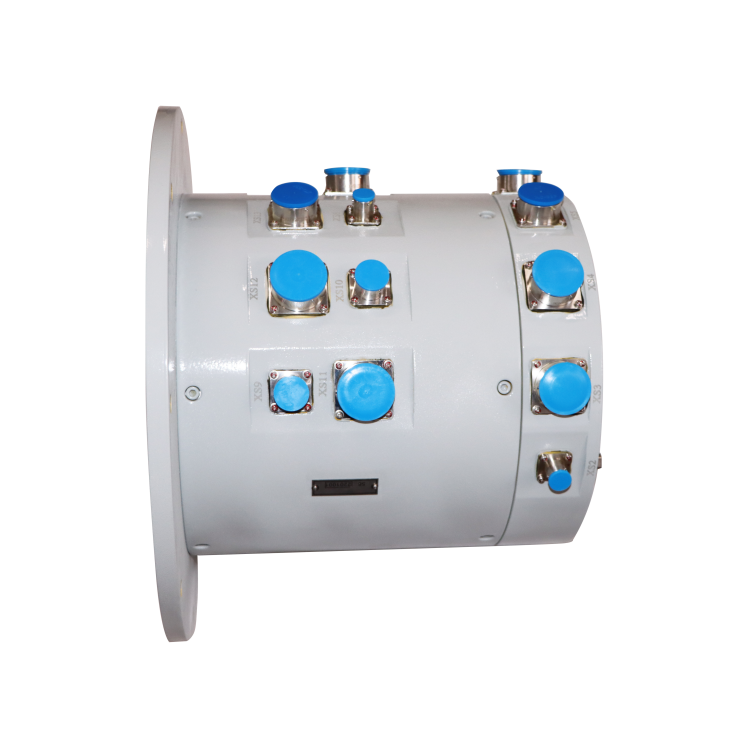

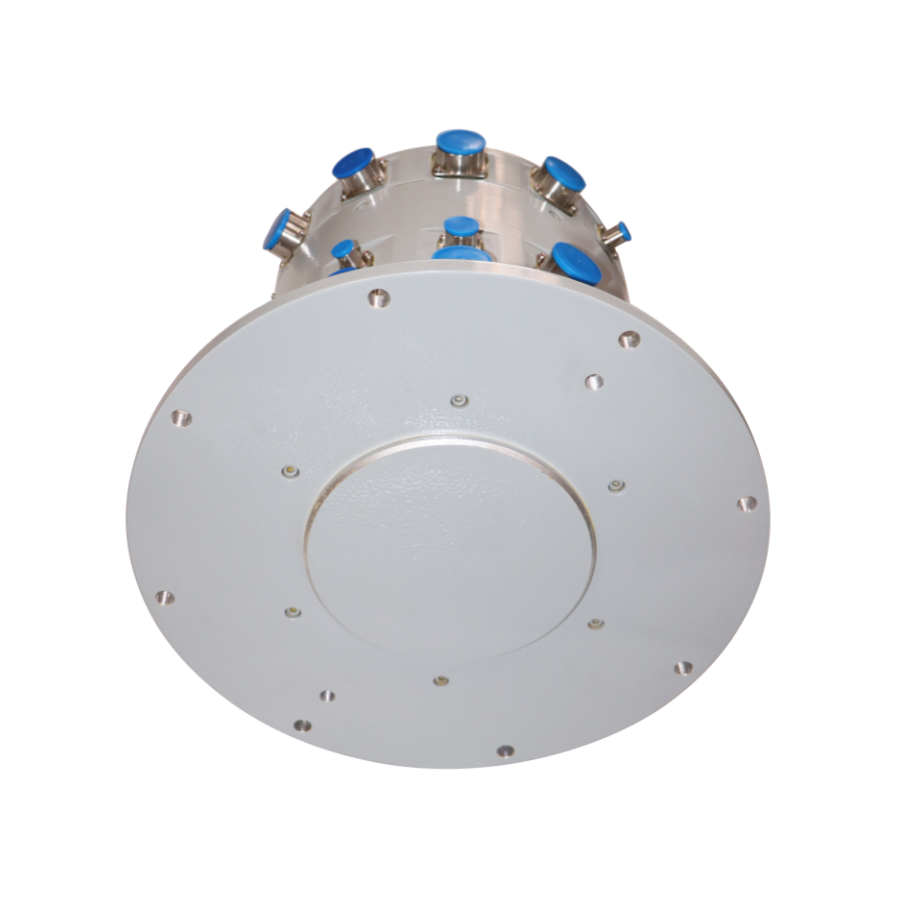

DHS300-90-1F hybrid slip ring diameter 300mm, 90 channels with 1 fiber optical , aviation plug interface
The hybrid slip ring with a diameter of 300mm is a significant advancement in aviation technology. It combines electrical and optical signal transmission, making it an ideal solution for complex systems that require multiple communication channels. The slip ring’s large diameter allows for an increased number of channels, enabling seamless communication between various components in an aircraft.
One of the standout features of this slip ring is the integration of an optical fiber. This additional channel provides high-speed data transmission, allowing for the transfer of large amounts of information in real-time. The optical fiber’s inclusion enhances the slip ring’s capabilities, making it suitable for applications that demand rapid and reliable communication, such as data transfer between flight control systems, radar systems, and communication equipment.
The aviation plug interface is another critical aspect of this hybrid slip ring. The aviation industry relies on standardized plug connectors to ensure compatibility and ease of maintenance. By incorporating the aviation plug interface, the slip ring becomes readily compatible with existing aviation systems, simplifying the integration process and reducing downtime during maintenance or upgrades.
|
DHS300-90-1F |
|||
|
The main parameters |
|||
| Number of circuits | 90 | Working temperature | “-40℃~+65℃” |
| Rated current | can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
All of the above can be customized except (Insulation resistance. Insulation strength. Dynamic resistance variation), if there is no suitable standard products, can be customized according to your requirements

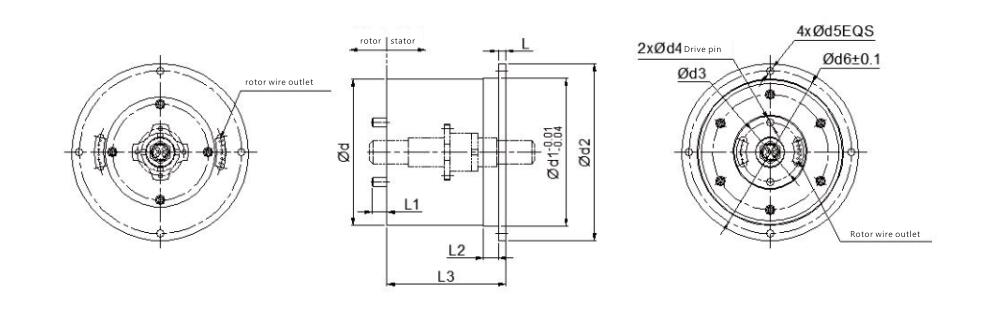

Standard product oueline drawing:
Our advantage:
- Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
- Company advantage: Ingiant provides various high-precision conductive slip rings and technical support for aviation, navigation, wind power, automation equipment, research institutes and colleges for a long time. We have more than 50 national patents, and a experienced R&D team with more than 10 years experienced senior engineers in the industry, more than 100 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality. As a high-end conductive slip ring manufacturer, the company not only provides high-quality standard products, but also relies on our technical advantages, focusing on providing high quality products to meet customers high requirements.
- Excellent after-sales and technical support service, by providing high-quality products and technical services, Ingiant has a live, rich experience team can response your requests when you reach out to us for after-sales and techinical support service request.
