High quality durable electrical capsule slip ring
Electrical capsule slip ring from Ingiant Technology manufacture
When choosing a 16mm diameter, 17-channel electrical capsule slip ring, it is essential to consider factors such as the specific signals and power requirements of the application, the operating speed, and any environmental constraints. Customization options are often available, allowing for specific configurations to meet the unique needs of each application.
In conclusion, the 16mm diameter, 17-channel electrical capsule slip ring is a compact yet powerful component that enables the efficient transmission of multiple signals and power lines in various electromechanical systems. Its small size, high data transmission capacity, and reliable power transmission make it a versatile choice for applications in industries such as robotics, automation, wind energy, and more. With its robust construction and ability to withstand harsh environmental conditions, the 16mm diameter, 17-channel electrical capsule slip ring is a reliable and essential component in modern technological systems.
Electrical capsule slip ring

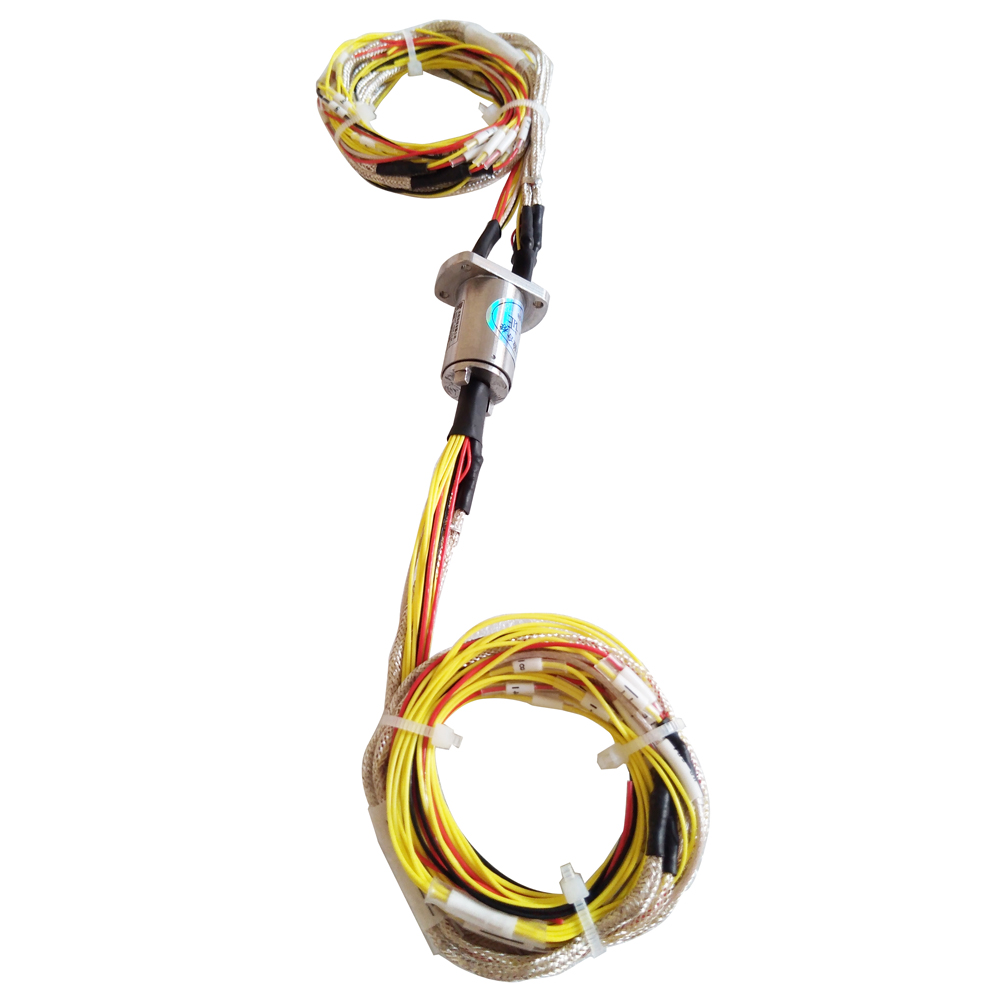

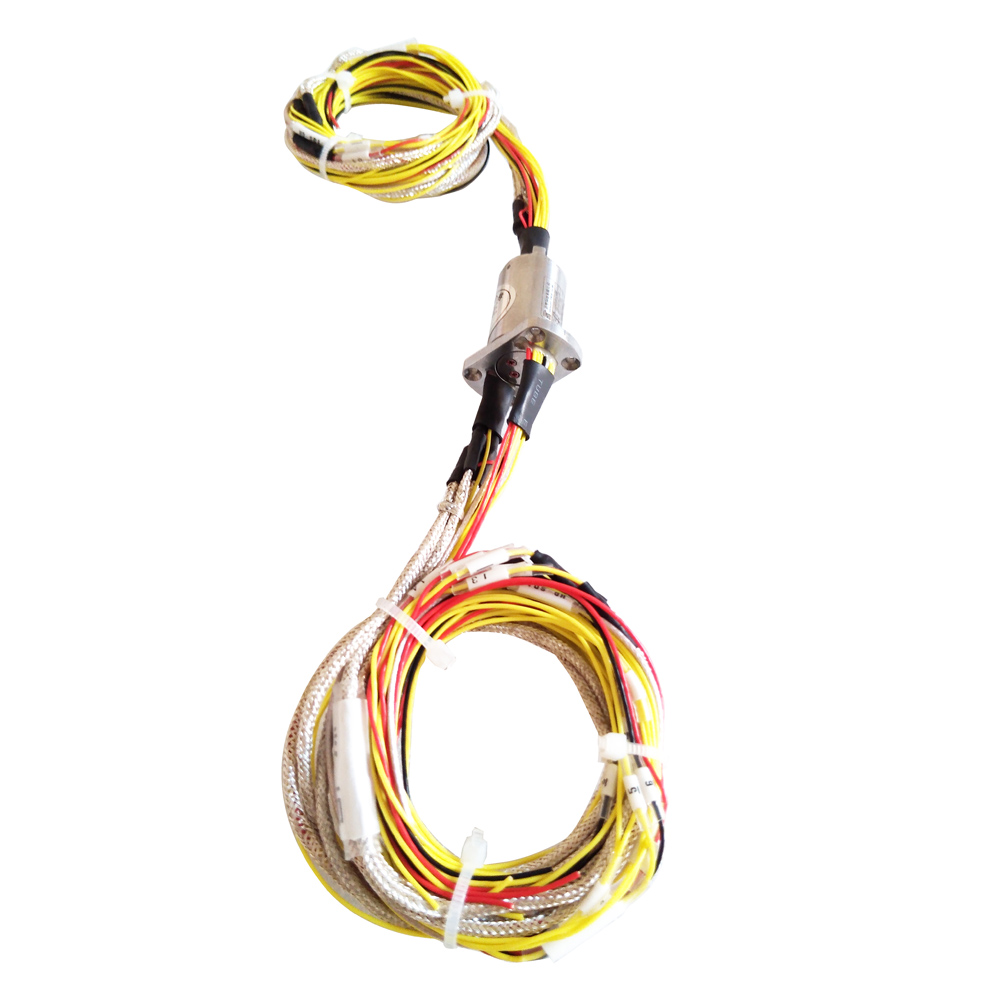

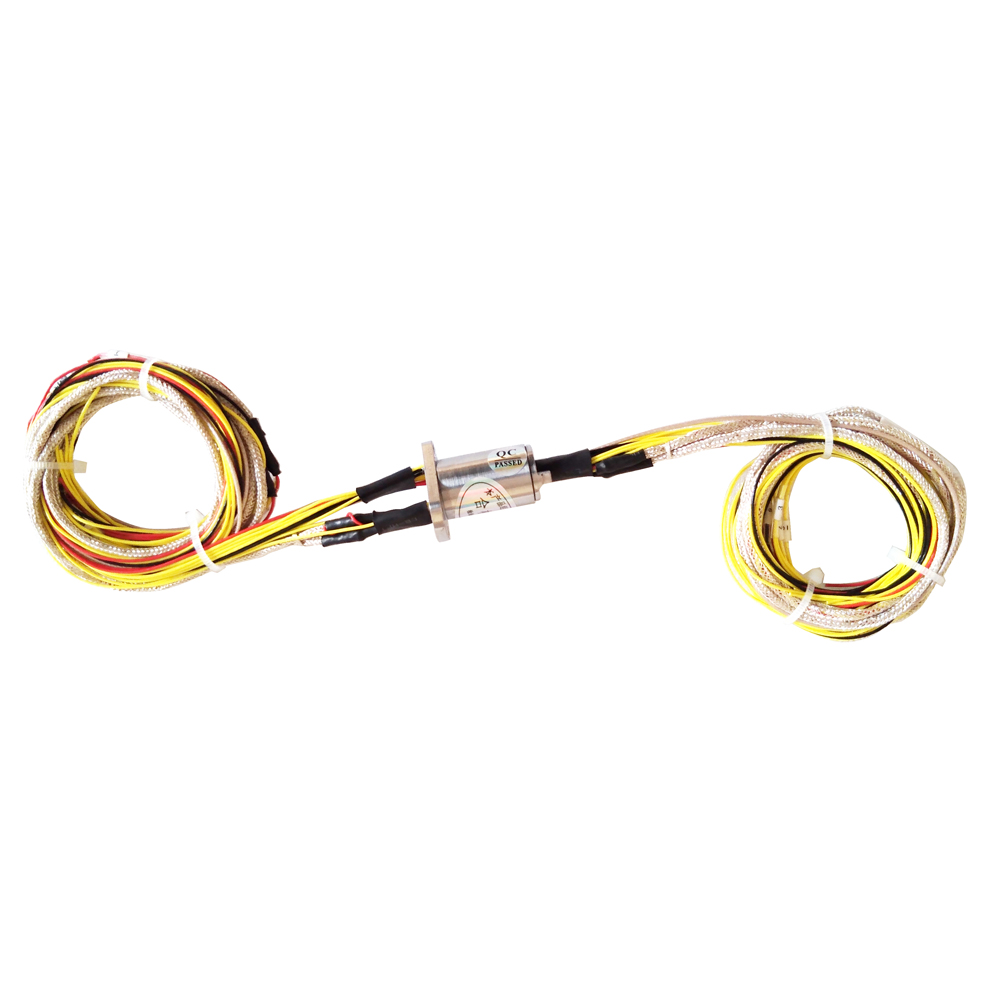

Electrical capsule slip ring is an electromechanical device that allows the transmission of electrical signals and power between rotating and stationary parts. Jiujiang Ingiant Technology have developed 16mm diameter, 17-channel electrical capsule slip ring. This compact and versatile slip ring is commonly used in various industries and applications.
16mm diameter of electrical capsule slip ring refers to its outer size, making it relatively small and lightweight. This compact design allows for easy integration into space-constrained systems, where size and weight are critical considerations. Despite its small size, the 17-channel capability of this slip ring enables the transmission of multiple signals and power lines simultaneously.
One of the key advantages of the 16mm diameter, 17-channel slip ring is its high data transmission capacity. With 17 channels available, it can accommodate a wide range of signals, including high-speed data, control signals, and power supply. This capability makes it suitable for applications that require the transmission of complex signals, such as robotics, automation systems, CCTV cameras,
and medical equipment.
In addition to its data transmission capabilities, the 16mm diameter, 17-channel electrical capsule slip ring also offers reliable power transmission. It can handle various voltage and current requirements, ensuring efficient power transfer between rotating and stationary parts. This feature makes it ideal for applications where power supply is critical, such as wind turbines, rotary tables, and packaging machinery.
The design and construction of the 16mm diameter, 17-channel electrical capsule slip ring are crucial to its performance and durability. High-quality slip rings are typically made from robust materials like stainless steel or aluminum, ensuring resistance to wear and tear. The brushes and rings within the slip ring are made from high-quality conductive materials, such as gold or silver, to ensure reliable electrical contact and minimal signal loss.
Furthermore, the 16mm diameter, 17-channel electrical capsule slip ring is designed to operate in various environmental conditions. It can withstand temperature variations, humidity, and exposure to dust, oil, or other contaminants. This feature ensures its reliability and durability in both indoor and outdoor applications.

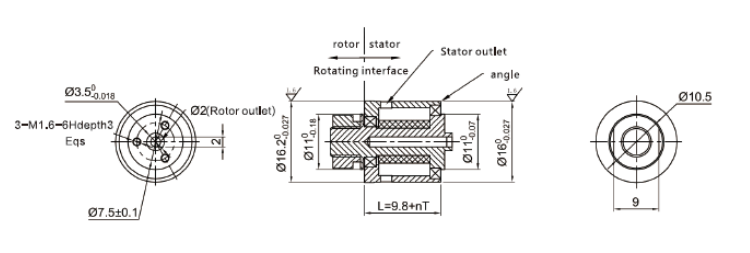

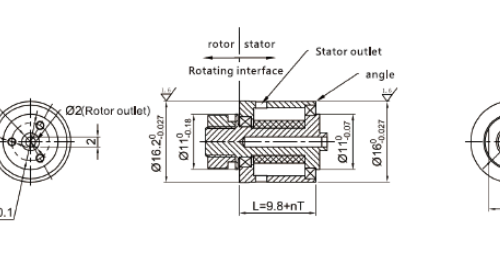

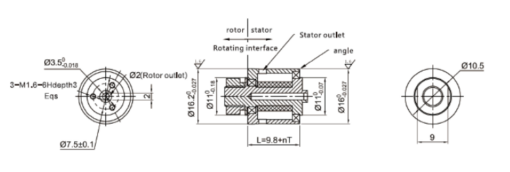

| DHS016-17 | |||
| The main parameters | |||
| Number of circuits | 17 | Working temperature | “-40℃~+65℃” |
| Rated current | Can be customized | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |
Ingiant advantage:
1. Expertise and Experience: Ingiant have specialized knowledge and experience in designing, manufacturing, and testing slip rings. We have a deep understanding of the technical requirements and specifications needed for different applications. This expertise ensures that the slip rings produced are of high quality and meet the specific needs of customers.
2. Customization: Ingiant offer customization options to meet unique and specific requirements. We work closely with customers to design and manufacture slip rings that are tailored to their exact needs. This flexibility allows for the production of slip rings that are optimized for specific applications, ensuring optimal performance and reliability.
3. Quality Control: Ingiant have established quality control processes in place to ensure the production of high-quality slip rings. We have sophisticated testing equipment and procedures to verify the performance and durability of the slip rings before they are delivered to customers. This ensures that customers receive slip rings that meet the highest standards of quality and reliability.
4. Efficiency and Cost-Effectiveness: Ingiant are equipped with state-of-the-art machinery and production lines that enable efficient and cost-effective manufacturing processes. We have the capabilities to produce slip rings in large quantities, reducing production costs and lead times. This efficiency translates into competitive pricing for customers without compromising on quality.
5. Technical Support: Ingiant provide technical support and assistance to customers throughout the entire process, from design to installation and maintenance. We have a team of knowledgeable engineers who can offer guidance and expertise, helping customers select the right slip ring for their specific application and troubleshoot any issues that may arise.
